Home > Products > 5 encoder > F11ER Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
F11ER Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
F13E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
-
G20E Series Ring Type Encoder Miniature and Highly Accurate Contact Type Encoder
-
G30E Series Ring Type Encoder Miniature and Highly Accurate Contact Type Encoder
-
EC121102XZA-VA1 12mm Rotary Encoder and Rotary Encoder With Flat Shaft Electric 12&24 Detents Rotary Encoder
-
WD35 Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001
-
FHS50 Contactless Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001
Product Details
| Place of Origin | Guangdong, China | Brand Name | Howang | |
| Model Number | F11ER |
Product Description

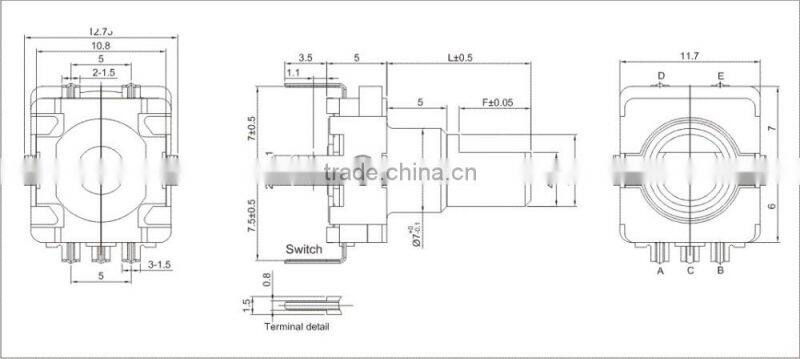

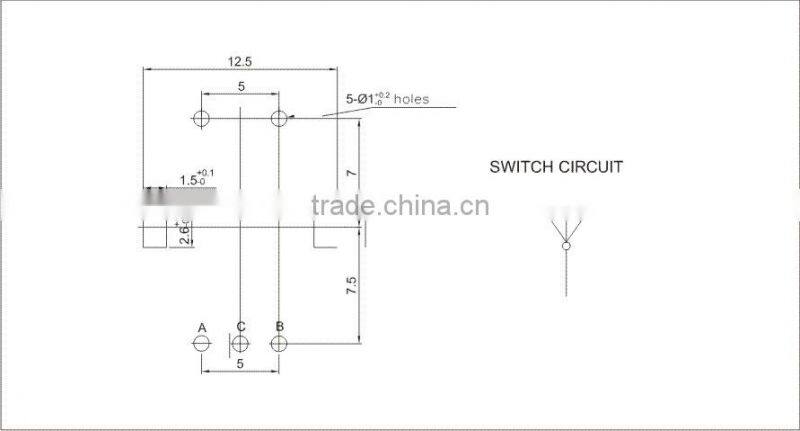

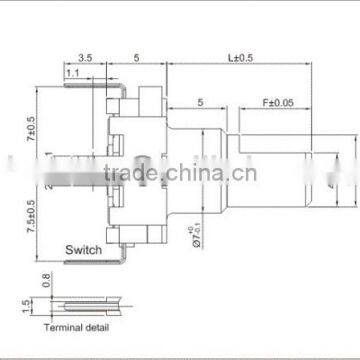

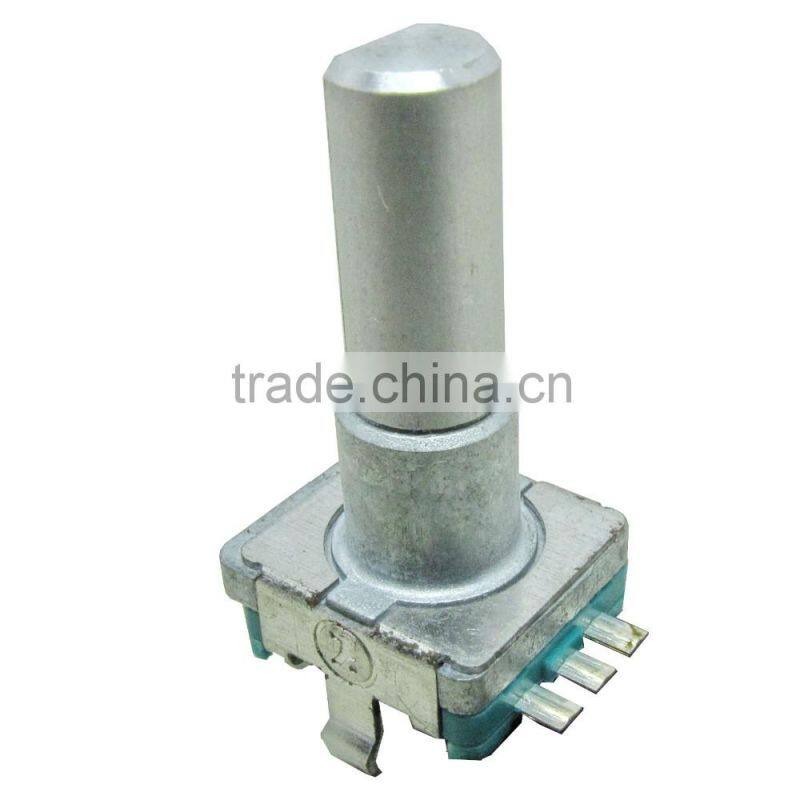

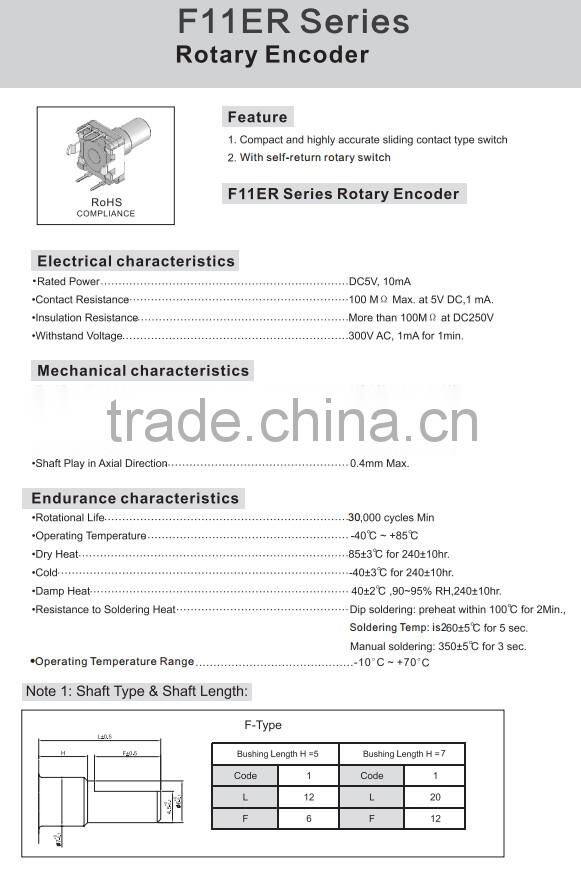

F11ER series Rotary Shaft Encoder
Introdution
1.Compact and highly accurate sliding contact type switch
2.with self-return pperformance
| Electrical characteristics | |
| Rated Power | DC5V, 10mA |
| Contact Resistance | 100MΩ Max at 5V DC, 1mA. |
| Insulation Resistance | More than 100MΩ at DC250V |
| Withstand Voltage | 300V AC, 1mA for 1min. |
| Mechanical characteristics | |
| Total Rotation Angle | 80°±5° (each angle 40°) |
| Rotational Torque | 35-300gf.cm |
| Rotation Stopper Strength | 4.0kgf.cm Min |
| Push-pull Strength of Shaft | 10Kgf Min. for 10 Sec. |
| Shaft Play in Axial Direction | 0.4mm Max. |
| Endurance characteristics | |
| Rotational Life | 30,000 cycles Min |
| Operating Temperature | -40°C ~ +85°C |
| Dry Heat | 85±3°C for 240±1Ohr. |
| Cold | -40±3°C for 240±10hr. |
| Damp Heat | 40±2°C, 90~95% RH, 240±1Ohr. |
| Resistance to Soldering Heat | Dip soldering: preheat within 100°C for 2Min. Soldering Temp: 260±5°C for 5 sec. Manual soldering: 350±5°C for 3 sec |

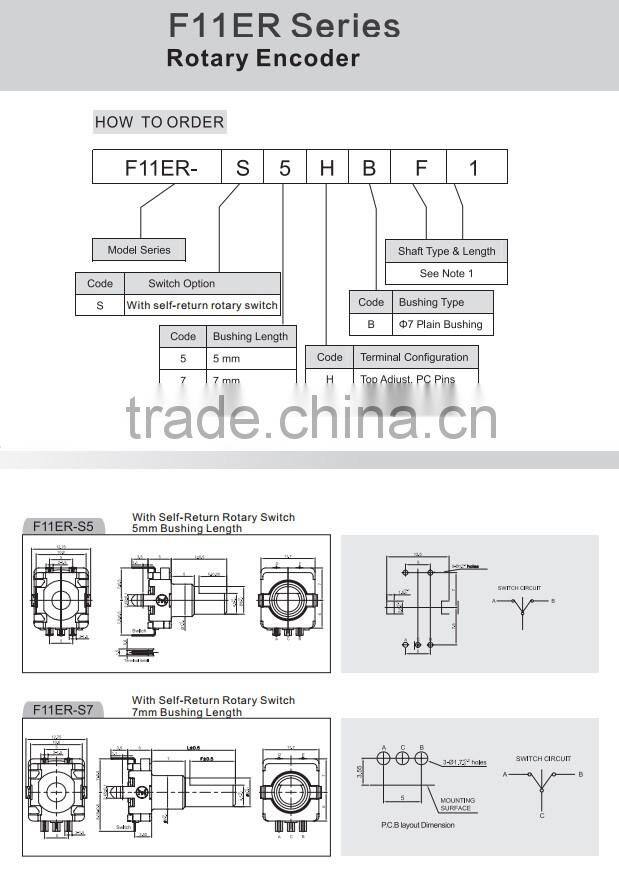

How to order?
FAQ
Q: Can you provide us samples, is it free or need to pay?
A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.
Q: How to deliver?
A: By sea or by air or courier like UPS, DHL, FedEx.
Q: What’s your payment term?
A: T/T or Western Union
30% deposit, the 70% balance before shipment.
Q: Where is your factory located, is it convenient to visit?
A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
| |
| |
| | |
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
Attn: Kevin
Whatsapp:+86 18820393453
Wechat: +86 18820393453
Mobile: +86 18820393453
Skype:fax9981 ©
Email: kevincosmetic ©
howangdz ©
tel9981 ©
Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.
Tel: 0086-752-6610869
Fax: 0086-752-6610819
Guangdong Huizhou Howang Electronics Co., Ltd
-----------------------------------------------------------------------
Website: http:// www.howang.en.china.cn
