Home > Electrical & Electronics > Sensor > Pressure Sensor > FHS22 Contactless Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001
FHS22 Contactless Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001
US$ 0.1 - 35
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Howang
Model Number:
FSE07
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FSE10 Contact Type Sensor Slide Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001US$ 0.1 - 25MOQ: 1000 Pieces -
FSE07 Contact Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001US$ 0.1 - 25MOQ: 1000 Pieces
-
FSE11 Contact Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001US$ 0.1 - 25MOQ: 1000 Pieces
-
FSE28 Contact Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001US$ 0.1 - 25MOQ: 1000 Pieces
-
FSE04 Contact Type Sensor Rotary Position Sensor Hot New Inductive Proximity Sensor CE UL ROHS ISO9001 ISO14001 ISO18001US$ 0.1 - 25MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
Howang
Model Number
FSE07
Usage
Position Sensor
Theory
Inductance Sensor
Output
Analog Sensor
Introduction

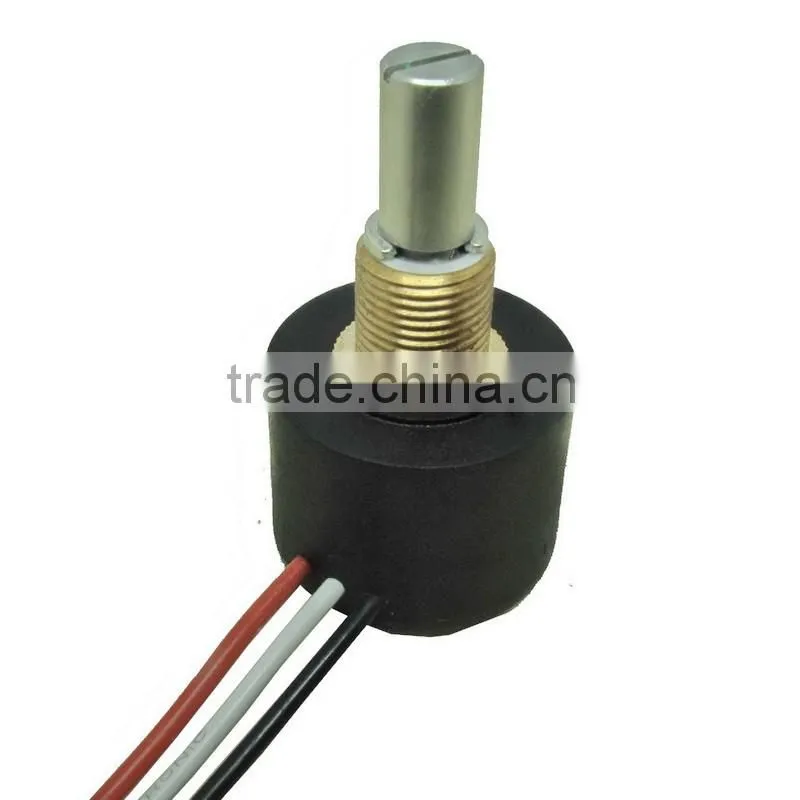

1. Contactless rotary angle/position sensor
2. Long life, over 10 Million cycles
3. Programmable angular range from 15 to 360 degrees (without dead band).
4. Simple& Robust magnetic design

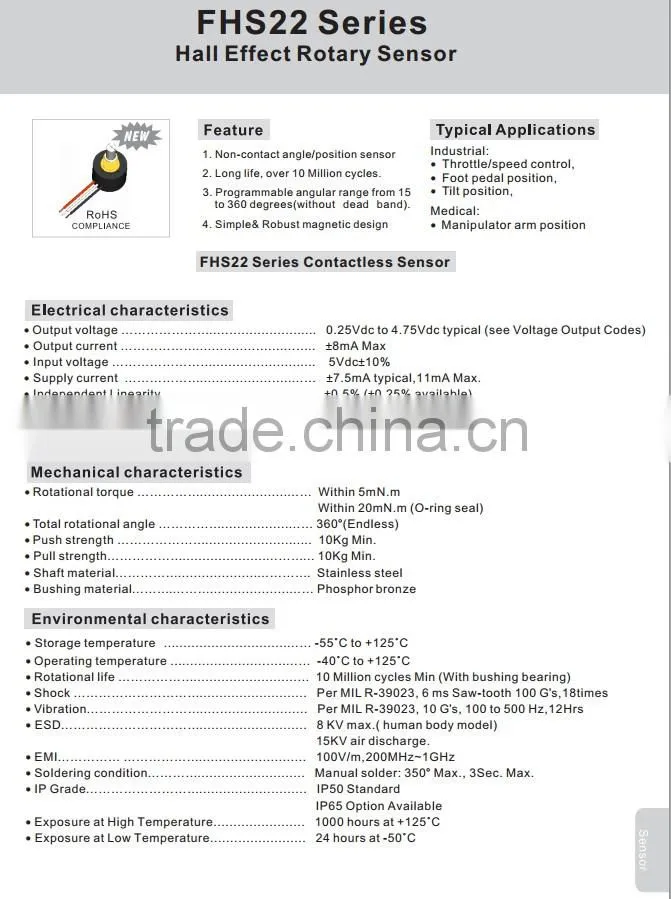

| Electrical characteristics | |
| Output voltage | 0.2SVdc to 4.75Vdc typical (see Voltage Output Codes) |
| Output current | ±8mA Max |
| Input voltage | 5Vdc±10% |
| Supply current | ±7.5mA typical 11mA Max. |
| Independent Linearity | ±0.5% (± 0.25% available) |
| Output load | 10KΩ typical 1KΩ Min |
| Output temperature characteristics | Within ± 3% Vout/FS |
| Effective electrical angle | 15° to 360° (360° is typical) |
| Mechanical characteristics | |
| Rotational torque | Within 5mN.m;Within 20mN.m (O-ring seal) |
| Total rotational angle | 360° (Endless) |
| Push strength | 10Kg Min. |
| Pull strength | 10Kg Min. |
| Shaft material | Stainless steel |
| Bushing material | Phosphor bronze |
| Environmental characteristics | |
| Storage temperature | -55°C to +125°C |
| Operating temperature | -40°C to +125°C |
| Rotational life | 10 Million cycles Min (With bushing bearing) |
| Shock | Per MIL R-39023, 6 ms Saw-tooth 100 G's, 18times |
| Vibration | Per MIL R-39023, 10 G's, 100 to 500 Hz, 12Hrs |
| ESD | 8 KV max. (human body model); 15KV air discharge. |
| EMI | 100V/m, 200MHz~1GHz |
| Soldering condition | Manual solder: 350° Max, 3Sec. Max. |
| IP Grade | IP50 Standard;IP65 Option Available |
| Exposure at High Temperature | 1000 hours at +125°C |
| Exposure at Low Temperature | 24 hours at -50° C |
Quality Certificates
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
|
|
|
|
|
|
|
Contact
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
Attn: Kevin
Whatsapp:+86 18820393453
Wechat: +86 18820393453
Mobile: +86 18820393453
Skype:fax9981 ©
Email: kevincosmetic ©
howangdz ©
tel9981 ©
Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.
Tel: 0086-752-6610869
Fax: 0086-752-6610819
Guangdong Huizhou Howang Electronic Co., Ltd
-----------------------------------------------------------------------
