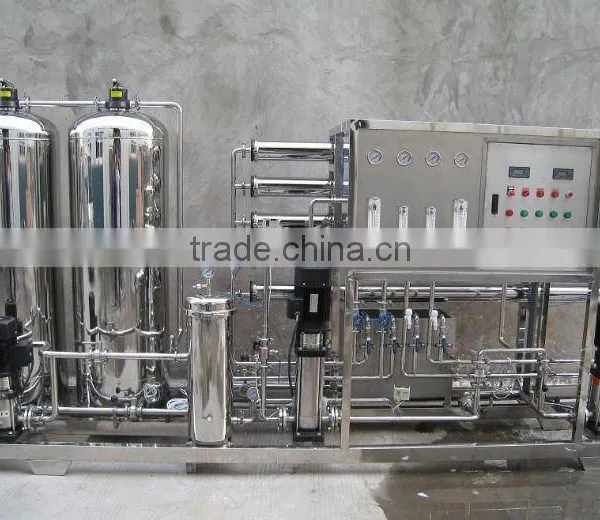

FS Reverse Osmosis Water System (RO Water System)

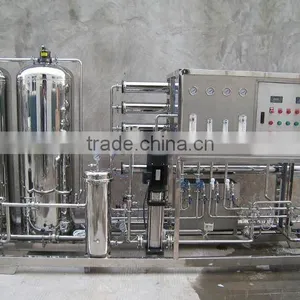

FS Reverse Osmosis Water System (RO Water System) thumbnail-1
FS Reverse Osmosis Water System (RO Water System) photo-1
US$ 1 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Develop
Model Number:
FS
Contact Supplier Request Quote Chat Now
Shanghai Develop Machinery Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Develop
Model Number FS
Application Liquid
Type Other, purify

Specifications

reverse osmosis water system
GMP standard
SUS304 OR SUS316L
ISO9001 certificate

FS Reverse Osmosis water system



I. Pure water pFSduction guideline:

1. Chemical guideline: According to pharmaceutical pure water standard of <People ‘s republic of China codex >

2. Healthy check: micFSbe 10 CFU/100ml

3. Endotoxin: 0.125EU/ml

4. ElectFS conductivity ≤ 2μs/cm

II. Equipment technical requirement:

1. The system is contFSlled automatically or by manual contFSl. The system could be set for automatic back flushing, regeneration pFSgram.

2. There are circumfluence pipes between one step and two step reverse osmosis (FS), and the FS equipments are equipped with chemical washing device and sterilization device.

3. There is PH adjustment device between one step and two step reverse osmosis (FS) in order to reverse osmosis equipment can be running stably

4. Two step reverse osmosis film accept pollution-pFSof film with positive charge to ensure the equipment could be stable running.

5. One step reverse osmosis pipes accept SUS304 material, two step FS accept SUS316L material

6. There is online conductivity tester between one step FS and two step FS, can check the conductivity any time.

7. There is low pressure pFStection switch in one step FS and low pressure, high pressure pFStection switch.

8. The one step and two step reverse osmosis recovery percent could be adjusted, one step’s is 60-65%,

two step’s 70%.

9. FFSnt pFScess device accept original imported parts and the pipes of fFSnt pFScess accept UPVC and SUS304 pipes.

10. Pure water store tank come with breath filter, transport pipes are installed with ultrasonic sterilizer and micFS holes filters to ensure the pure water according to need of healthy.

Model

Output capacity M3/h

Minimum feeding water M3/h

Rate of desalination M3/H

Working water  temperature °C

FS-0.1(one grade REVERSE Osmosis+ super filtering )`

0.1

0.2

87

5-35°C,recommend 21°C

FS-0.2(one grade REVERSE Osmosis+ super filtering )

0.2

0.4

87

5-35°C,recommend 21°C

FS-0.25 (two grade REVERSE Osmosis)

0.25

0.5

98

5-35°C,recommend 21°C

FS-0.3 (two grade REVERSE Osmosis)---stoped production now

0.3

0.6

98

5-35°C,recommend 21°C

FS-0.4 (two grade REVERSE Osmosis)

0.4

0.8

98

5-35°C,recommend 21°C

FS-0.5 (two grade REVERSE Osmosis)

0.5

1

98

5-35°C,recommend 21°C

FS-1 (two grade REVERSE Osmosis)

1

1.5

98

5-35°C,recommend 21°C

FS-2 (two grade REVERSE Osmosis)

2

3

97

5-35°C,recommend 21°C

FS-3 (two grade REVERSE Osmosis)

3

4.5

97

5-35°C,recommend 21°C

FS-4 (two grade REVERSE Osmosis)

4

6

97

5-35°C,recommend 21°C

FS-6 (two grade REVERSE Osmosis)

6

9

97

5-35°C,recommend 21°C

FS -8 (two grade REVERSE Osmosis)

8

12

97

5-35°C,recommend 21°C

FS -10 (two grade REVERSE Osmosis)

10

15

97

5-35°C,recommend 21°C

FS -15 (two grade REVERSE Osmosis)

15

22.5

97

5-35°C,recommend 21°C

FS -20 (two grade REVERSE Osmosis)

20

30

97

5-35°C,recommend 21°C

FS -25 (two grade REVERSE Osmosis)

25

37.5

97

5-35°C,recommend 21°C

FS -30  (two grade REVERSE Osmosis)

30

45

97

5-35°C,recommend 21°C

FS -50  (two grade REVERSE Osmosis)

50

75

97

5-35°C,recommend 21°C
