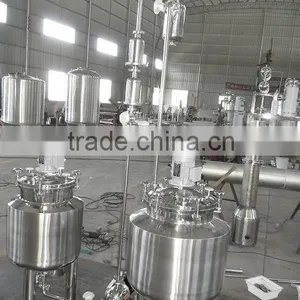

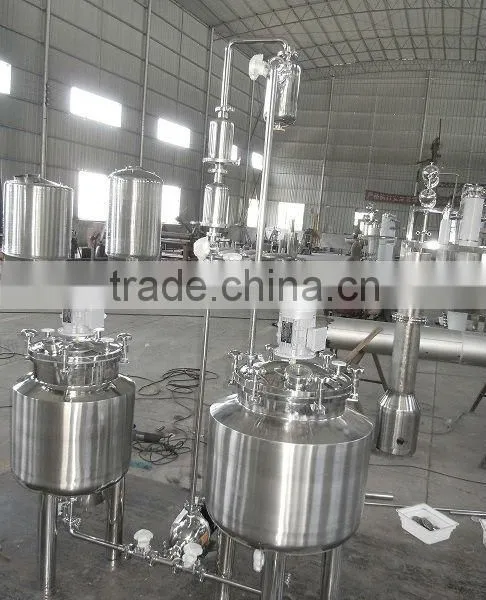

50L Water Blending tank & system

Specifications

blending tank
distilled water
inject water
SUS304 or 316L
GMP

50L Water Blending tank & system



 Description:



1.Such series vessel has the functions of heading and heat preservation, manufactured, pressure-tested and checked in accordance with the Technology sepcifications for steel welded vessel

2. The standard specifications from 100L to 6000L and order-design or order-manufacture are all available.
3. The sealing of agitating shaft is of mechanical sealing of imported health class. The speed reducer is controlled by inverter is available. It can prevent overload.
4. The joint is of quick-acting type in compliance with ISO standard. The inner part is made of 304 SST                                                                                 5. At the tank body are respectively fluid level gauge(the mode is non-contact supersonic, static-pressure transmission or glass tube),breathing apparatus, sterilization steam opening, thermometer(digital-indicated type or dial type),CIP universal tank-cleaning device, viewing mirror at lamp hole, some fluid inlets &  outlets and  manhole.



Technical parameter:



SPECIFICATION (L)	Reference Size(MM)
	D	D1	H	H1	H2	§	DN
100	400	600	1600	1050	250	3	32
150	400	600	2000	1450	250	3	32
200	500	700	2000	1450	250	3	32
300	600	800	2000	1450	250	3	32
500	800	1000	2000	1350	330	3	40
600	800	1000	2200	1550	330	3	40
1000	1000	1200	2600	1750	330	4	40
1200	1000	1200	2800	1950	330	4	40
1500	1100	1300	2850	1950	330	4	40
2000	1400	1600	2500	1650	330	4	40
2500	1400	1600	2850	2000	330	6	40
3000	1500	1700	2900	1900	330	6	40
4000	1700	1900	3000	2100	330	6	40
5000	1700	1900	3800	2850	400	6	50
6000	1800	2000	3800	2850	400	6	50
