Specifications
Vacuum conveyorGMP
ISO9001
SUS304
or SUS316L

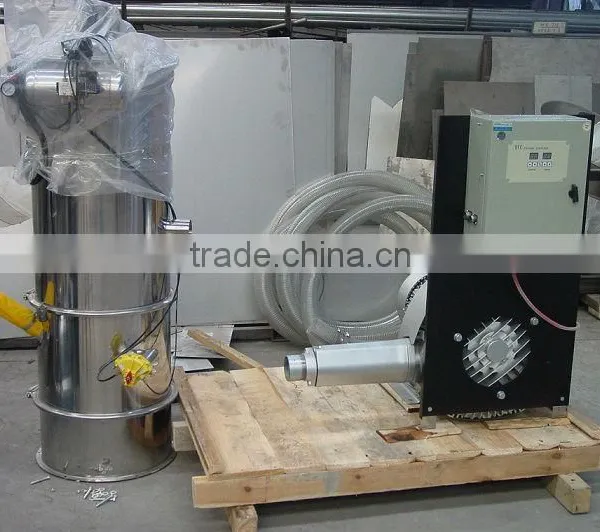

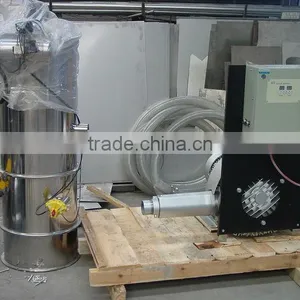

ZKS-7 Electric drive Vacuum conveyor & feeder
Descriptions:
My company production of vacuum feeder is a new product developed on the basis of extensive foreign similar products, it is currently the most advanced country, the ideal perfect powdery materials, granular materials, granular powder mixes vacuum conveying equipment A function of the vacuum feeding automatically transported to the various materials to the hopper of the packaging machines, injection molding machines, shredders, and other equipment, can also directly conveying the mixed material to the mixer (such as a V-type mixer, two-dimensional mixer, three dimensional mixing etc.) to reduce labor intensity, to solve the problem when feeding dust spills, pharmaceutical plants, food plants by GMP certification, promote clean, civilized production device of choice.
Vacuum feeding machine by a vacuum pump (oil, water), stainless steel suction nozzle, delivery hose, PE filter (or 316L stainless steel filter), compressed air cleaning device, pneumatic discharge gate device, vacuum hopper and materials bits automatic control devices, the design of the entire system is reasonable, exquisite manufacturing.
Vacuum feeder nesting and nesting two consecutive sub-gap the gap discharge help to reduce the investment cost of the equipment, to facilitate the control of the material level, in most cases, we recommend that users gap discharge type. Continuous discharge tends to be used in long-distance, large production vacuum conveying of materials.
Technical parameters:
Type |
Product capacity kg/h |
Power |
Voltage |
Overall size |
ZKS-1 |
400 |
1.5kw |
380v/3, 50hz |
dia140*H560 |
ZKS -2 |
600 |
2.2kw |
380v/3, 50hz |
dia 213*H 720 |
ZKS -3 |
1200 |
3kw |
380v/3, 50hz |
dia 290*H 880 |
ZKS -4 |
2000 |
4kw |
380v/3, 50hz |
dia 420*H 850 |
ZKS -5 |
3000 |
5.5kw |
380v/3, 50hz |
dia 420*H 1000 |
ZKS -6 |
4000 |
5.5kw |
380v/3, 50hz |
dia 420*H 1250 |
ZKS-7 |
6000 |
7kw |
380v/3, 50hz |
dia 520*H 1300 |
