Help CenterDTY-1000B Liquid Piston Filling Machine
Related Products
Specifications

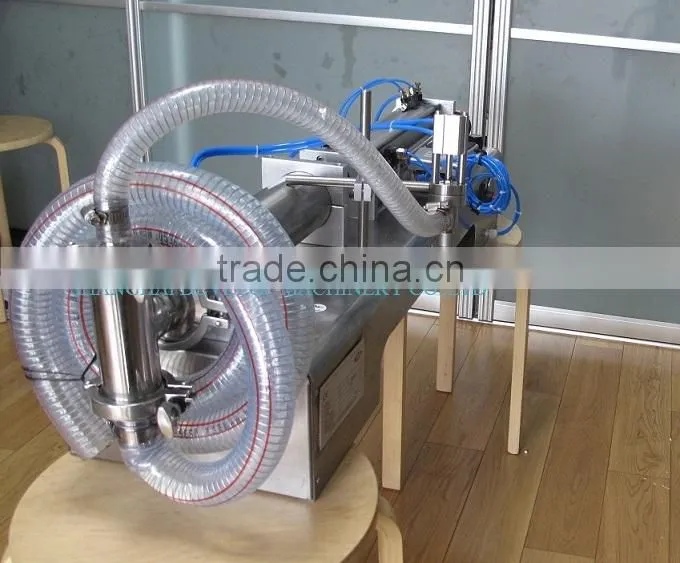

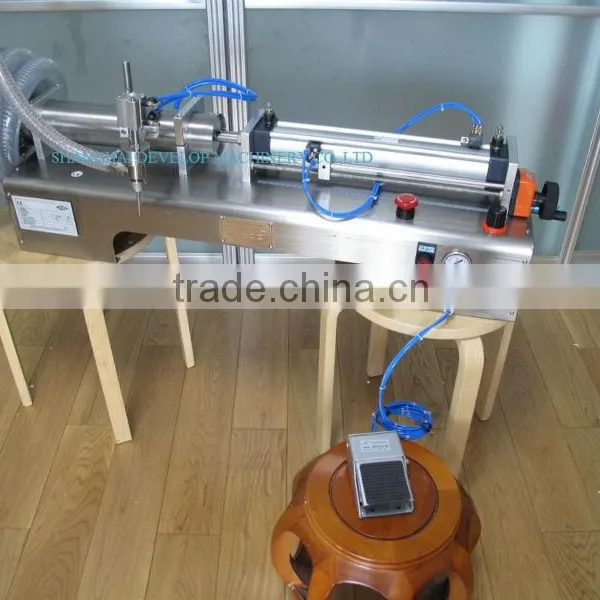

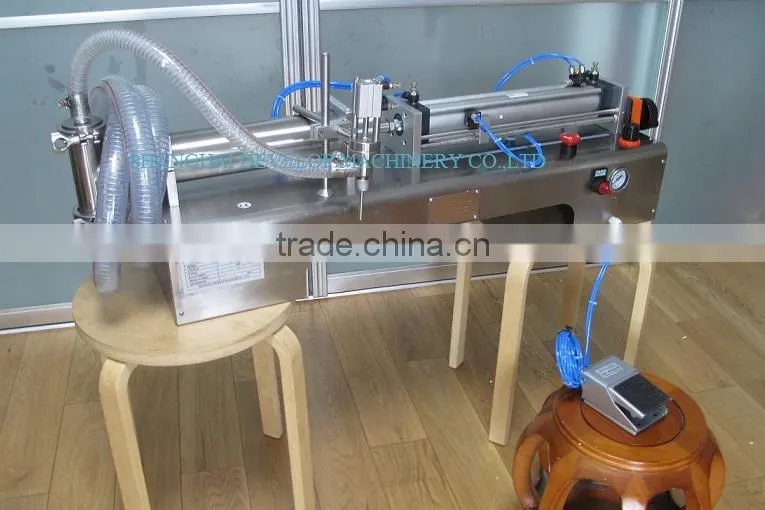

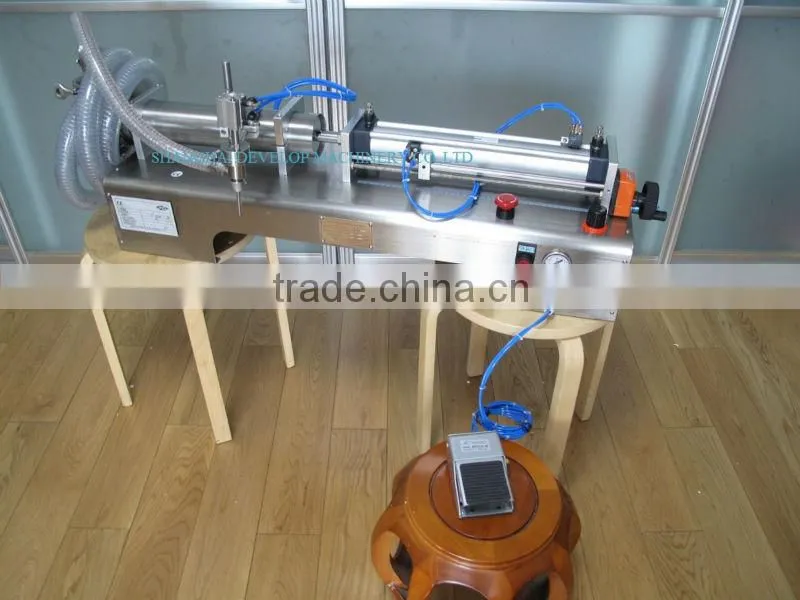

piston filling machineDTY-1000B liquid piston filling machine
Main Introduction:
1. The DTY-B Single Head Liquid Filling Machine, simple and reasonable in design, highly accurate and easily operated, is a product upgraded and innovated by introducing foreign advanced filling machine technology.
2. As an ideal apparatus for filling fluid, it is useful in pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades.
3. For semi-automatic and piston type pasty liquid filling
4. Has small size, reasonable design and easy operation. German FESTO and Taiwan’s AirTac pneumatic elements adopted
5. Its cylinder body and piston are made of SUS304 OR 316L stainless steel and lined with PTFE, conforming to GMP.
6. Filling volume and speed adjustable. Filling accuracy high.
7. Filling bulkhead is leakage-proof, and a lifting filling device provided.
Technical Parameters:
Item |
Parameter |
Air pressure |
0.4-0.6MPa |
Filling volume adjustment method |

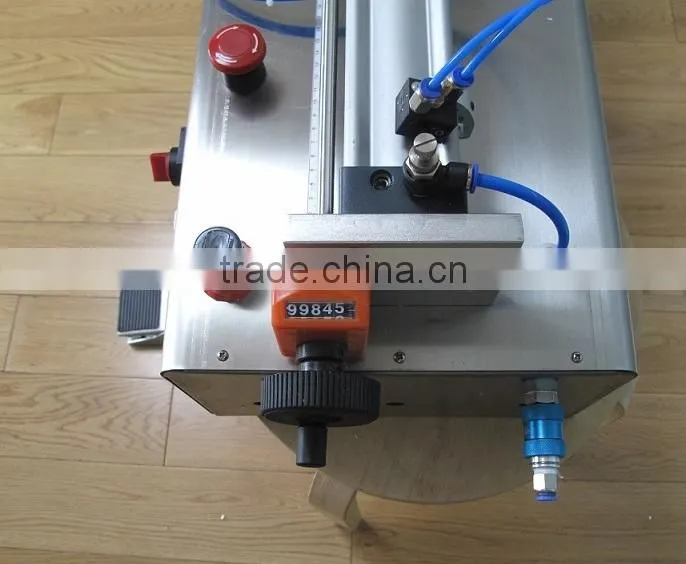

Adjustable by end wheel with digital showing |
Power |
Pure pneumatic |
Filling speed |
10-30 Bottles/min. |
Filling accuracy |
99.99% |
Filling range type |
5-50ml, 12-120ml, 30-300ml 50-500ml ,100-1000ml ,250-2500ml ,500-5000ml |
