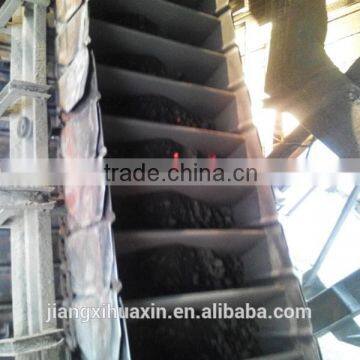

5000T Pan convey equipment

Specifications

1. 5000T Pan convey equipment
2.Non leakage
3.Large conveyor capacity 1000T-10000T per day





Packaging:Iron-box or nude package.or according to customer requires

  Service:24hours email service.assemble will be send engineer to guide



--Product description

1.Package:Nude package

2.Convey capacity:5000T 2500T 1500T per day

3.Product experience:10 years

4.Structure:Conveyor system

5.Operation speed: (0.26m-0.3m)/s

6.Assembly inclination:0°-60°

7.Assembly: send professionals to guide

8.Price:Factory price

9.operation status: Stable operation

10.Delivery: 45 days after deposit receiving

--Product parameter

Horizontal and inclination ≤25°  convey ability(table1)

Model	Edge high	Rated throughput(when inclination  ≤25° )m³/h
		Chain speed m/s
		0.193	0.244	0.308	0.344
SCD630	250	91	116	146	163
SCD800	250	116	148	186	208
SCD1000	300	174	222	279	312
SCD1200	350	244	310	391	436

Notice:1.Conveyor angle ≥35°, chutes equipped with baffles to prevent material return

              2.If have others requires.edge high can transform.and conform to conveyor  capacity.

              3.When inclination more than 25 degree.For table1multiplied by the actual transmission capacity table2

When conveyor angle≥25° .the parameter follow(table2)

Edge high	Adjustable parameter
	≤25°	30°	35°	40°	45°	50°	55°	60°
200	1	0.91	0.83	0.75	0.69	0.61	0.54	0.47
250	1	0.93	0.86	0.80	0.74	0.69	0.63	0.57
300	1	0.94	0.89	0.83	0.79	0.74	0.69	0.65
350	1	0.95	0.90	0.86	0.82	0.78	0.74	0.70

--Application
