Most Demanding Products in the World That Chinese Construction Equipment Manufacture

Most Demanding Products in the World That Chinese Construction Equipment Manufacture thumbnail-1
Most Demanding Products in the World That Chinese Construction Equipment Manufacture photo-1
US$ 98,000 - 189,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Trough conveyor
Material:
Other, Carbon steel
Contact Supplier Request Quote Chat Now
Jiangxi Huaxin Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Trough conveyor
Material Other, Carbon steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity 285T per hour
Place of Origin Jiangxi, China
Brand Name HuaXin
Model Number SCD630 SCD800 SCD1000 SCD1200
Voltage 380V
Power(W) 150KW
Dimension(L*W*H) According to you requires
Certification TUV ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Most demanding products in the world that chinese construction equipment manufacture
2.Non leakage
3.Low maintenance

--Product description

1.Package:Nude package

2.Convey capacity:5000T 2500T 1500T per day

3.Product experience:10 years

4.Structure:Conveyor system

5.Operation speed: (0.26m-0.3m)/s

6.Assembly inclination:0°-60°

7.Assembly: send professionals to guide

8.Price:Factory price

9.operation status: Stable operation

10.Delivery: 45 days after deposit receiving

--Product parameter

Horizontal and inclination ≤25°  convey ability(table1)

Model

Edge high





Rated throughput(when inclination  ≤25° )m³/h

                                 Chain speed m/s

0.193

0.244

0.308

0.344

SCD630

250

91

116

146

163

SCD800

250

116

148

186

208

SCD1000

300

174

222

279

312

SCD1200

350

244

310

391

436

Notice:1.Conveyor angle ≥35°, chutes equipped with baffles to prevent material return

              2.If have others requires.edge high can transform.and conform to conveyor  capacity.

              3.When inclination more than 25 degree.For table1multiplied by the actual transmission capacity table2

When conveyor angle≥25° .the parameter follow(table2)

Edge high

Adjustable parameter

≤25°

30°

35°

40°

45°

50°

55°

60°

200

1

0.91

0.83

0.75

0.69

0.61

0.54

0.47

250

1

0.93

0.86

0.80

0.74

0.69

0.63

0.57

300

1

0.94

0.89

0.83

0.79

0.74

0.69

0.65

350

1

0.95

0.90

0.86

0.82

0.78

0.74

0.70

--Application

1)Suitable for horizontal and inclined conveying of particle materials, particle size ≤200mm.tempature≤250°
2) Reasonable design, throughput, throughput up to 436m³/h
3)Convey distance up to 150m.Max lifting high 60m
4)Max conveyor inclination angle reached 60°
5)Traction chain is formed by forging chain link plate.high strength and long life
6) Bearing structure separate from your tractor, conveyor load is reasonable, stable operation
7)Assemble and maintenance convenient.low operation maintenance consumption
--Head and tail device
Most demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufacture

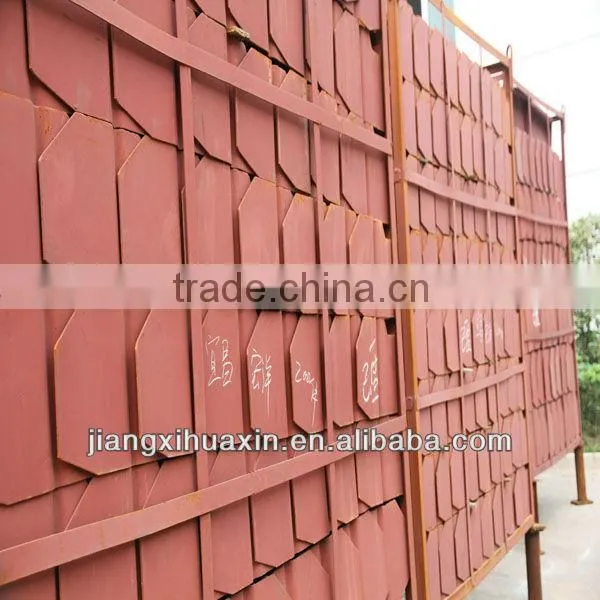

--Circulation parts
Most demanding products in the world that chinese construction equipment manufacture
--To be shipped
Most demanding products in the world that chinese construction equipment manufacture

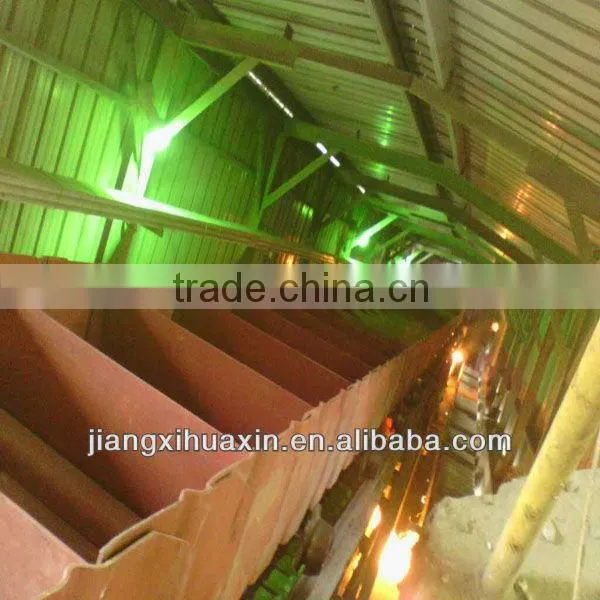

--Product machine
Most demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufacture
--Customer visit company
Most demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufacture
--Certification
Most demanding products in the world that chinese construction equipment manufactureMost demanding products in the world that chinese construction equipment manufacture
