TouchKit Capacitive Touch Panel Controller With USB Cable
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 15" to 24"
Type:
Capacitive
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
G/G Capacitive Touch Screen Controller Touch Panel Controller UE01/UE02US$ 1 - 100MOQ: 1 Piece -
Touch Screen Controller USB/RS232/I2CUS$ 1 - 100MOQ: 1 Piece
-
G/G 8-Wire Touch Screen Controller (8 Wire RS232)US$ 1 - 100MOQ: 1 Piece
-
G/G Capacitive Touch Screen Controller Supports Display RotationUS$ 1 - 100MOQ: 1 Piece
-
Touchkit SIS Touch Panel Controller US01/02 Support RotationUS$ 1 - 100MOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 15" to 24"
Type
Capacitive
Interface Type
USB
Resolution
Other, 4096 X 4096 (Automatic matching )
Brand Name
TouchKit
Model Number
TK-US01
Place of Origin
Guangdong, China
Specifications
Easy to Install and Use,Fast Response,Support 1 to 10 Points Touch.Compatible with different OS,Sell with Capacitive Touch Panel1. Function:
For the realization of touch screen with the customer between the host signal conversion, to achieve this through a virtual mouse and keyboard to guest host operation .
2. Environment Conditions:
| Operating temperature & Humidity | -20°C-+85°C |
| Storage temperature & Humidity | -40°C-+100°C |
| Relative Humidity | 90% RH at 60°C |
3. Electrical Characteristics:
(TA=40 to +70°C Regin=5.0V unless otherwise specified)
| Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
| Supply Voltage | USB,5V DC |
| Power consumption(mA) | Active Mode:<15mA,Idle Mode:5mA |
| Report rate | 10Points Touch:80Hz |
| Oscillator Frequency | 12MHz |
| Channels of Panel | Max. X:78, Y:62 channels |
| Support Points | 1-10 Points |
| Linearity | 1PT:+/- 1mm,10PT:+/- 2.5mm |
| Response Time | <10ms |
| Min. Report Rate | 100 points/sec (Target, Need formal test report) |
| Max. operating frequency | 100 MHz |
| Operating system | Windows7/Windows8/Win XP... |
4. Pin Assignments:
| Pin | Name | Type | Description |
| 1 | DM | Signal | USB D- Signal |
| 2 | DP | Signal | USB D+ Signal |
| 3 | GND | GND | Ground |
| 4 | VCC | USB 5VDC | Supply Voltage |
| 5 | GND | GND | Ground |

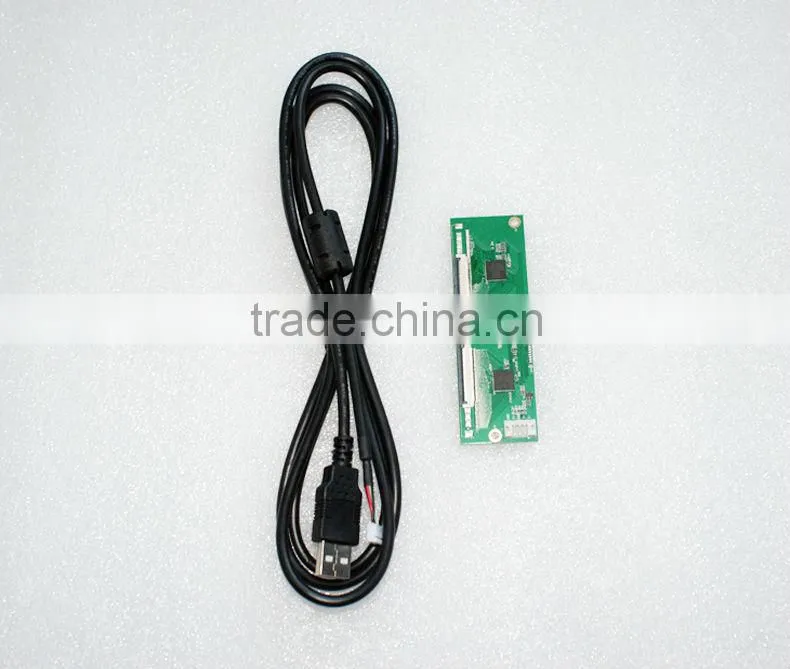

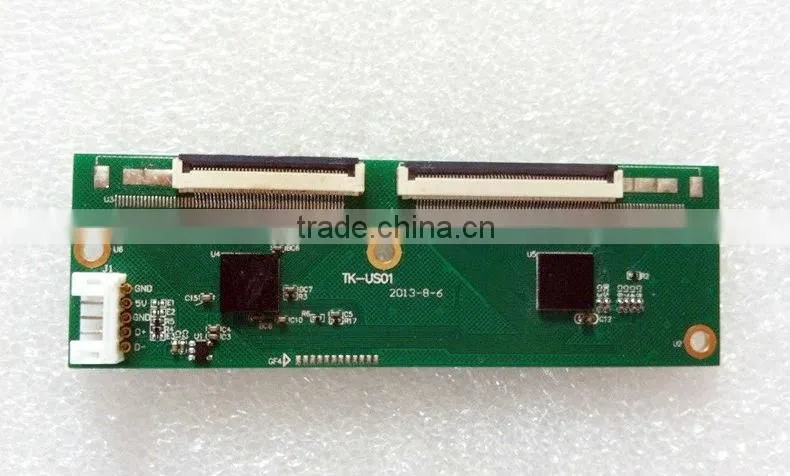

5. Images:(With USB Cable)
