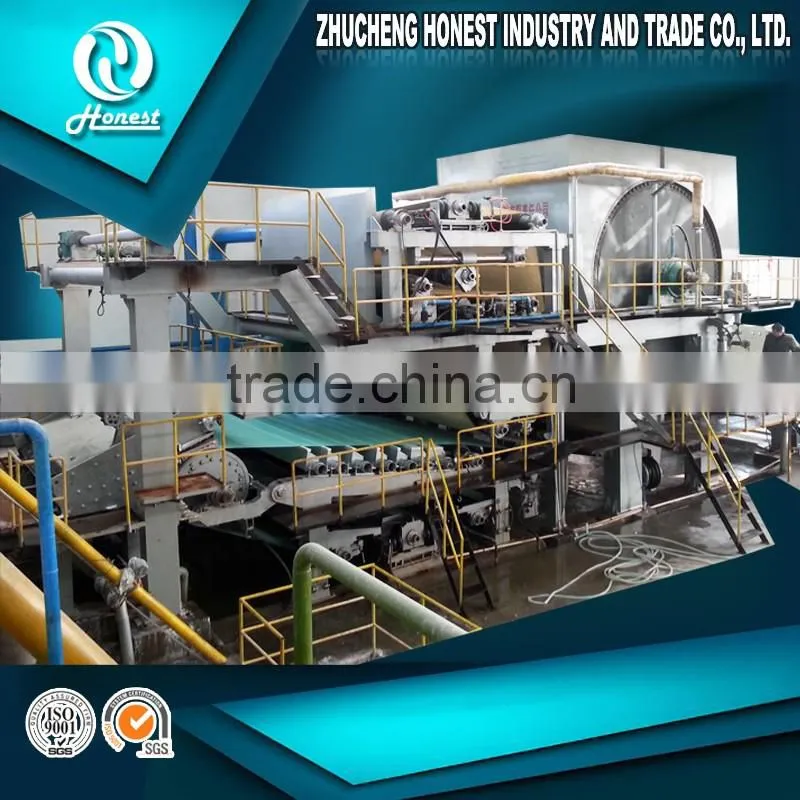

2016 new design 20TPD 2850mm Tissue Paper Making Machinery
1. What is the technical data of our 2850mm Toilet Paper Making Machine?
| 1.1 | Suited raw material | Virgin pulp, recycling deinking pulp and mixing pulp |
| 1.2 | Final production | Jumbo roll of toilet tissue paper, napkin and kitche towel |
| 1.3 | Trimwidth at pope reel | 2850mm(option 2750,2800,2900mm) |
| 1.4 | Basis weight at reel | 14--42 gsm |
| 1.5 | Yankee speed | 400m/min |
| 1.6 | Steam for Yankee | Max 5 Bar |
2. What is the output capacity of our 2800mm Toilet Paper Making Machine?
|
Final production |
Reel trim |
basis weight |
Crepe ratio |
Yankee speed |
Production @100% |
Production @93% |
| Toilet | 2850mm | 16gsm | 18% | 400mpm | 21.6TPD | 20TPD |
| Napkin | 2850mm | 18gsm | 20% | 400mpm | 23.6TPD | 21.9TPD |
| Towel | 2850mm | 25gsm | 27% | 300mpm | 22.5TPD | 20.9 TPD |
3. What is the advantages of our Toilet Tissue Paper Making Machine?
3.1 High micro-turbulence head box for sheet forming of excellent quality.
3.2 Special head box with high approach consistency to save energy.
3.3 Special head box and breast roll design for dewatering quickly
3.4 Short inclined table design to save space
3.5 Cantilevered design of the Fourdrinier table for wire changing easily
3.6 Blind press roll without any vacuum request to save energy
3.7 Standard Yankee cylinder of 12 feet and hood with heat recovery system to save energy

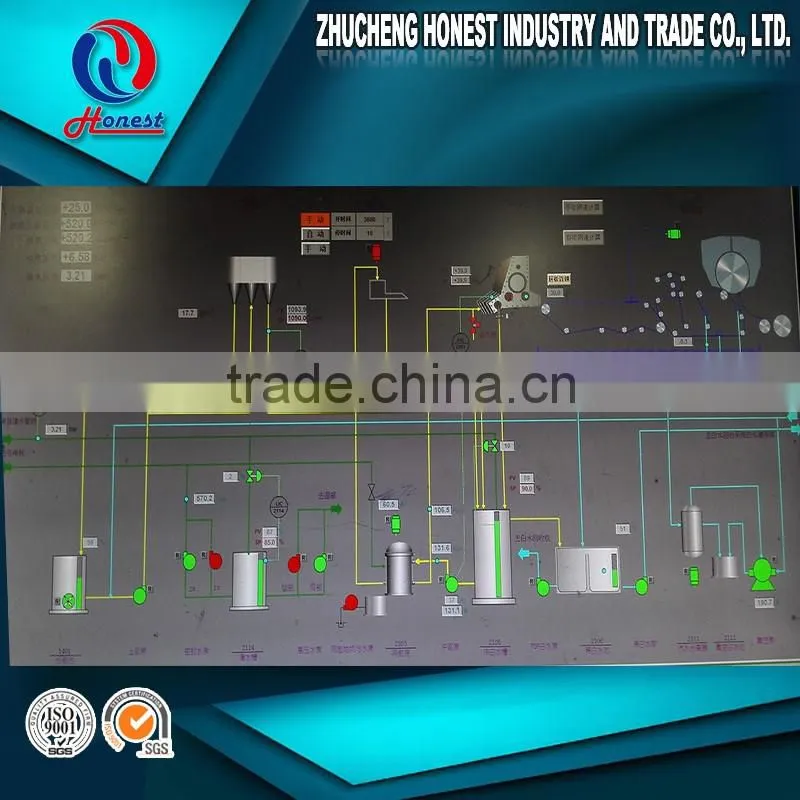

3.8 PLC control system for few employees need and production cost reducing
4. Why can you belive our Tissue paper machine?
4.1 Good design in accordance with your request
The standards packing for shipment is be sured to incuded in our supplying.
Shipment on time is assuring.
Turn-key Projects and Auxiliary Systems
We can integrate with a very deep experience on the Turn-Key basis.
1. Customized projects and complete production lines designed according to customer needs.
2. Modification of existing machines with solutions to satisfy customer needs.
After-sale Service
1. The machine can be supplied with the accessories using first class components.
2. We shall provide the G.A. drawing, foundation drawing and layout drawing after receiving the advance payment.
3. We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.
4. Performance and Mechanical Guarantee shall be provided for 1 year from the successful commissioning or 1.5 years from the date of Bill of Lading
It is our great honor to introduce Zhucheng honest Industry &Trade co., Ltd.
We are devoted to not only the complete design of tissue plant, fruit and vegetable cleaning plant, waste water recovery system, but also be able to design and supply all the necessary machines. Also, we are the trade agent for the gray iron, ductile iron, and cast Iron alloy bars with horizontal continuous casting of good quality. We Have the self-management import and export qualifications with the customs registration code 3723960640
Basis on the plentiful experience for many years and well running of our both home and abroad market machines, now, we have win the trust of the technology and machines from our customer.
We always keep the meet of customer requirements and continuously improve product of better quality as our final goal. Go long with virtue and go far with credit will be what we should insist on business.
Expect to be a reliable supplier of advanced technologywith our great efforts in the near future.
Q: Why no person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q: What is your Payment Terms?
A:Regular payment terms are T/T,L/C,other payment terms can be negotiated.
Q: What is the MOQ?
A:The MOQ is 1 set.
Q: What is the delivery Time?
A:For the regular equipment,the delivery will be made within 60 days.For the non-standard equipment and production line will be further negotiated with us.
For Your further choose, our tioliet tissue machine family includes,
- Cylinder former tissue machine @200mpm, 1600mm at pope reel
- Super former tissue machine@ 250mpm, 2800 at pope reel
- Special former with inclined table tissue machine @450mpm, 2850mmat pope reel
- Standard Fourdrinier tissue machine@ 650mpm, 3600mm at pope reel
