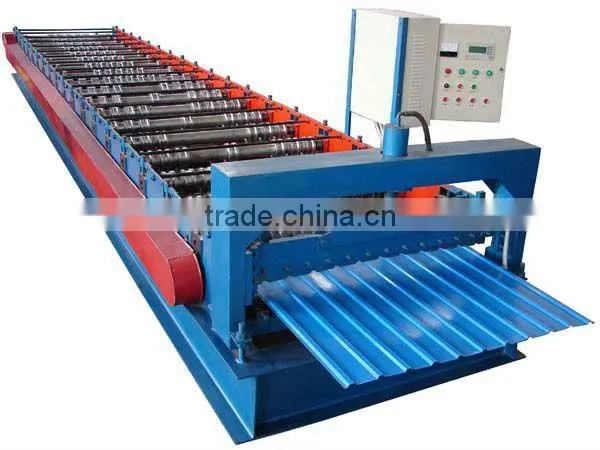

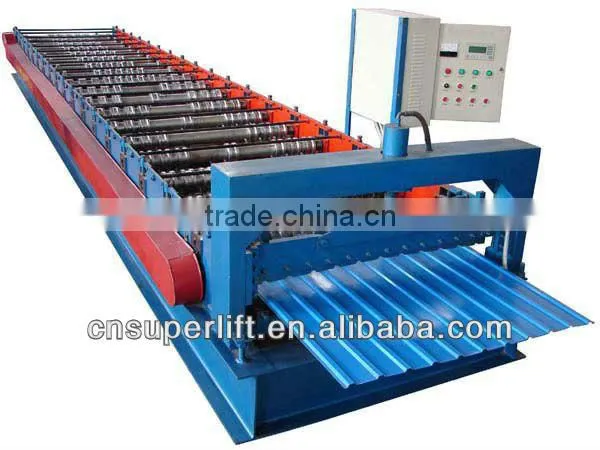

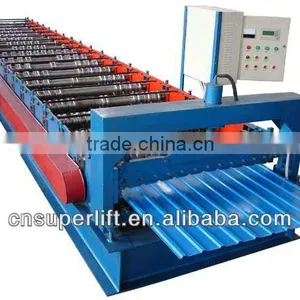

roofing and wall panel roll forming machine

Specifications

1.PLC control system; 2.rolls made of high alloy steel; 3.felxible and simple operation; 4.FEA analysis; 5.Software design.

Specifications:

1.Simple operation with PLC control system;

2.Germany brand COPRA software designed and FEA anylazed rollers;

3.Raw materials of rollers: high hardness alloy steel;

4.With a structure that whose width can be adjusted continiously;



Advantage:

1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.

2. Newly designed PLC control system with big touch screen made the operation more convenient.

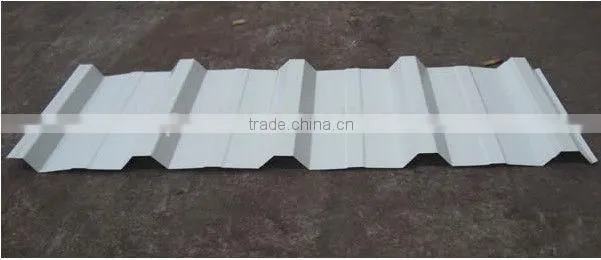

3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.



Parameters:



Number	Items	UnitType	RF-WP
1	Steel Thickness	mm	0.4-0.8
2	Forming Speed	m/min	8-18
3	Roller stands	stand	20
4	Roller Material		45# steel, coated with chrome
5	Main Motor Power	Kw	5.5
6	Hydraulic cutting Power	Kw	2.2
7	Hydraulic pressure	Mpa	10-12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12
11	Control system		PLC with touch screen
12	Machine net weight	T	12
