Help CenterCold C/Z Interchangable Metal Roll Forming Machine
Related Products
-
Color Steel Roof Panel Roll Forming MachineUS$ 10,000 - 100,000MOQ: 1 Set -
Hot Sale! Steel Profile Roll Forming MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Cable Tray Roll Forming Machine With PLC ControlUS$ 10,000 - 60,000MOQ: 1 Set
-
Flexible Aluminium and Stainless Cable Tray Roll Forming Machine With PLC ControlUS$ 10,000 - 60,000MOQ: 1 Set
-
Flexible Galvanized Steel and Wire Mesh Cable Tray Making Machine With PLC ControlUS$ 10,000 - 60,000MOQ: 1 Set
Specifications
1.PLC control system; 2.FEA analysis; 3.Germany software design.Specifications:
1.Simple operation with PLC control system;
2.Germany brand COPRA software designed and FEA anylazed rollers;
3.Raw materials of rollers: 40Cr quenching treatment HB280;
4.With a structure that whose width can be adjusted continiously;
Advantage:
1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.
2. Newly designed PLC control system with big touch screen made the operation more convenient.
3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.
4.It adopts new station to increase the firmness of the machine, gearbox transimission ensure it working mare stable, after-cutting pattern gaurantees quality of the cutting position of product very smooth
5.Such steels are widely used in steel structure building.
2) Main Technical Specification:
(1) Decoiler: decoiler,Inner expanding type,capacity:5T
(2) Guide Rack:two pairs of lever rollers and four pairs of standing rollers.
Flatting number:9 sets
(3) Roll forming
a) Type:GY180
b) Rack: Torii type,material:HT200
c) Roll forming rack:12 sets
d) The diameter of the roller axis:φ80mm, roller surface:500mm
Material: 40Cr quenching treatment HB280
e) Drive type:every rack has one gear power diatribution box.
f) Main power: 30kw frequency conversion,ZQ500 reducer
g) Material:GCr15, Quenching,Hardness:HRC58-62o
h) Assistant roller rack:4 sets
(4) Adjust part:Turkey emendation type(three-dimensional emendation)
(5) Cutting-to-length: Hydraulic pressure cutting

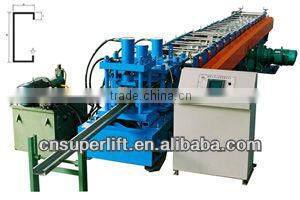

The complete line:
Software design
Processing technology:
