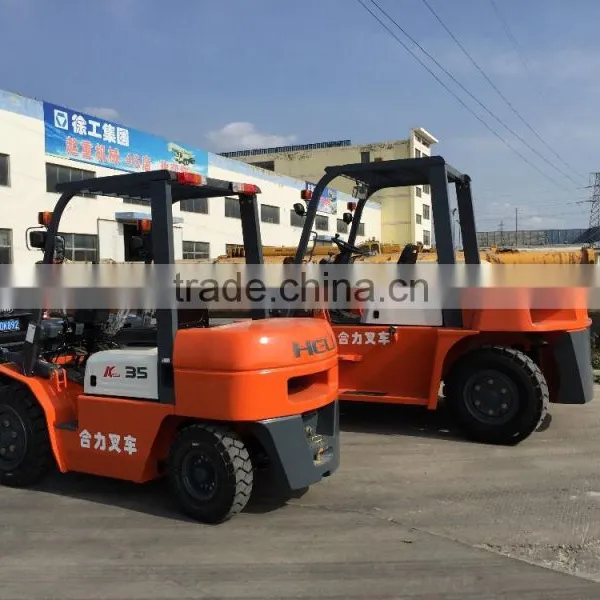

G Series Internal Combustion Truck CPCD35 3.5t Counterbalanced Forklift Truck

G Series Internal Combustion Truck CPCD35 3.5t Counterbalanced Forklift Truck thumbnail-1
G Series Internal Combustion Truck CPCD35 3.5t Counterbalanced Forklift Truck thumbnail-2
G Series Internal Combustion Truck CPCD35 3.5t Counterbalanced Forklift Truck photo-1
G Series Internal Combustion Truck CPCD35 3.5t Counterbalanced Forklift Truck photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Yancheng Foreign Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HELI
Model Number CPCD35
Rated Loading Capacity 3500kg

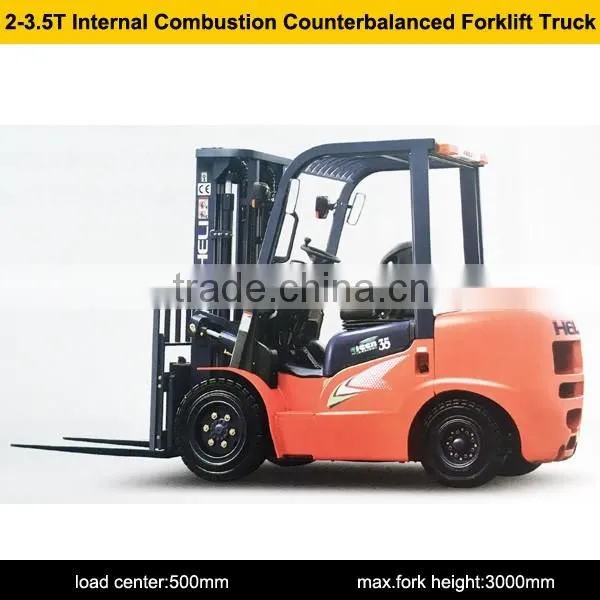

 G series Internal combustion truck CPCD35 3.5t counterbalanced forklift truck

Model   CPCD20 CPCD25 CPCD30 CPCD35 CPQ(Y)D20 CPQ(Y)D25 CPQ(Y)D30 CPQ(Y)D35
Power type   Diesel Gasoline/LPG
Load capacity kg 2000 2500 3000 3500 2000 2500 3000 3500
Load center mm 500
Pallet fork maximum height (with block shelf) mm 4039 4039 4217 4217 4039 4039 4217 4217
Maximum lifting height mm 3000
Free hoisting height mm 145
Overall height (upper frame protection) mm 2140 2140 2170 2170 2140 2140 2170 2170
Full length (with cargo fork) mm 3430 3650 3770 3840 3430 3650 3770 3840
Full width  mm 1150 1150 1225 1285 1150 1150 1225 1285
The minimum ground clearance (the door) mm 110 110 135 135 110 110 135 135
The minimum turning radius (outer) mm 2170 2240 2400 2420 2170 2240 2400 2420
Least square channel width mm 2200 2280 2380 2400 2200 2280 2380 2400
Pallet fork a*b*c mm 920*100*45 1070*100*45 1070*125*45 1070*125*50 920*100*45 1070*100*45 1070*125*45 1070*125*50
Maximum speed (full/empty) km/h 17/19 18/19 19/19 17/19 18/19 19/19
Maximum traction(full/empty) KN 17/8.33 17/8.88 16/9.8 16.5/9.8 16.4/8.3 16.4/8.3 14.5/9.8 16.5/9.8
Maximum gradeability (full/empty) % 28/20 25/18 23/20 22/20 26/20 24/18 23/20 20/18
Tire type (before/after)   2/2
Engine manufacturers/models   Kubota V2403 Kubota V3600 NISSAN K21 NISSAN K25
Rated power KW/rpm 35.4/2400 36.5/2600 46.9/2400 31.2/2250 37.6/2400
Rated torque Nm/rpm 161.3/1600 164/1500 210/1600 143.7/1600 176.5/1600
Total water (oil) kg 3480 3800 4400 5000 3480 3800 4400 5000

G series Internal combustion truck CPCD35 3.5t counterbalanced forklift truck



1.Have rich experience in the machinery parts.

2.10 years research and testing ,It have formed mature and stable system.
3.exporrting more than ten years .

4. Able to produce according your specification .

5. Standard packing or according your specification requested

Company

Manufacture (more than 10 years' experienced factory) exporter







Main export markers

• Easter Europe

• Western Europe

• North America

• Mid East Africa

• Central/South/America

• Asia

• Australia

Long-term cooperated

Customer: Italy, Germany, Spain, Australia etc.





Company advantages

•  Guarantee/warranty

•  Product performance

•  Prompt delivery

•  Quality approval

•  Service

•  Small order accepted



TRADE TERMS



Price Term                                          (FOB Lianyungang)

Delivery Time

 15-25 days from the date of signing the contract and  receiving  advance payment.
Payment Item T/T for 30% advance payment and 70% balance payment before shipment
Terms of Shipment FOB
Port of Shipment Lianyungang Port, China
Date of Shipment To be discussed later



Main features
Ergonomics design
1.Using power braking system to reduce footplate strength.
2.Control lever right located to effectively reduce drivers arm tiredness.
3.Dual combined switch lever as a car to enable easy operating.
4.Wide mast with good visibility.
5.Wide space for boarding and driving , increasing leg space.
6.Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Safety performance
1.Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
2.Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
3.Safety device in mast hydraulic system prevents material falling down in case of hose broken.
4.High pressure hose is designed far away from the driver.
5.Safety wire harness, using waterproof plug.
