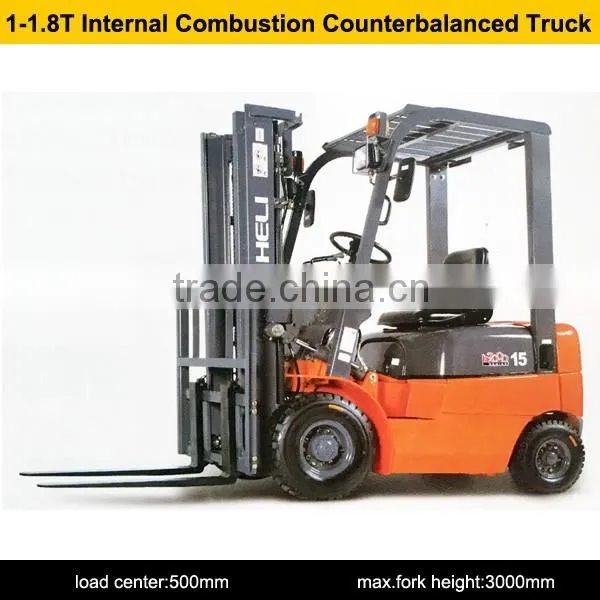

1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18

1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 thumbnail-1
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 thumbnail-2
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 thumbnail-3
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 thumbnail-4
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 photo-1
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 photo-2
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 photo-3
1-1.8t Internal Combustion Counterbalaced Froklift Truck CPQ(Y)18/CPQ(Y)D18 photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Yancheng Foreign Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china mian port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HELI
Model Number CPQ(Y)18/CPQ(Y)D18
Power Souce Gasoline Engine
Rated Loading Capacity 1750kg
Fork Length 920
Fork Width 100

1-1.8t internal combustion counterbalaced froklift truck CPQ(Y)18/CPQ(Y)D18

Model CPQ(Y)10
CPQ(Y)D10		 CPQ(Y)15
CPQ(Y)D15		 CPQ(Y)18
CPQ(Y)D18
Power type Gasoline/LPG
Load capacity kg 1000 1500 1750
Load center mm 500
Pallet fork maximum height (with block shelf) mm 4030
Maximum lifting height mm 3000
Free hoisting height mm 152 155
Overall height (upper frame protection) mm 2070
Full length (with cargo fork) mm 2941 3165 3213
Full width  mm 1070
The minimum ground clearance (the door) mm 110
The minimum turning radius (outer) mm 1880 1955 1985
Least square channel width mm 1977 2052 2093
Pallet fork a*b*c mm 770*100*32 920*100*35 920*100*35
Maximum speed (full/empty) km/h 13.5/14.5
Maximum traction(full/empty) KN 9.3/6.9 14.2/6.9 9.3/6.9 14.2/6.9 9.3/6.9 14.2/6.9
Maximum gradeability (full/empty) % 30/22 37/22 23/18 27/18 20/17 24/17
Tire type (before/after) 2/2
Engine manufacturers/models NISSANK15
Rated power KW/rpm 23.6/2400
Rated torque Nm/rpm 103/1600
Total water (oil) kg 2220 2660 2890

1-1.8t internal combustion counterbalaced froklift truck CPQ(Y)18/CPQ(Y)D18

1-1.8t internal combustion counterbalaced froklift truck CPQ(Y)18/CPQ(Y)D18

1-1.8t internal combustion counterbalaced froklift truck CPQ(Y)18/CPQ(Y)D18

1-1.8t internal combustion counterbalaced froklift truck CPQ(Y)18/CPQ(Y)D18

1.Have rich experience in the machinery parts.

2.10 years research and testing ,It have formed mature and stable system.
3.exporrting more than ten years .

4. Able to produce according your specification .

5. Standard packing or according your specification requested

Company

Manufacture (more than 10 years' experienced factory) exporter







Main export markers

• Easter Europe

• Western Europe

• North America

• Mid East Africa

• Central/South/America

• Asia

• Australia

Long-term cooperated

Customer: Italy, Germany, Spain, Australia etc.





Company advantages

•  Guarantee/warranty

•  Product performance

•  Prompt delivery

•  Quality approval

•  Service

•  Small order accepted
