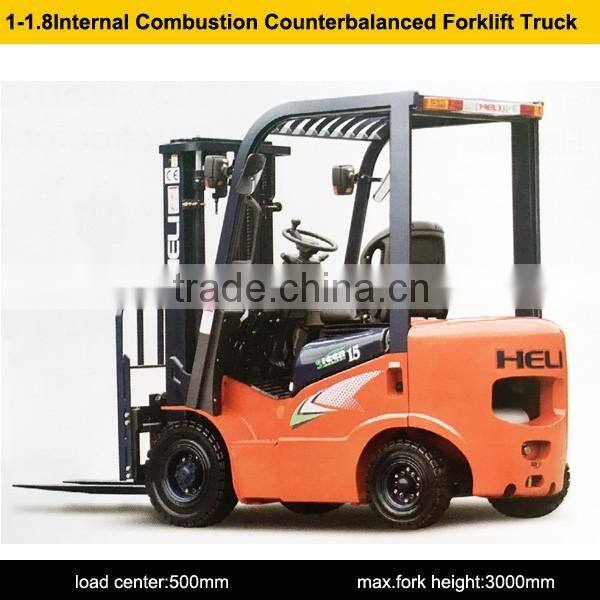

Internal Combustion Truck/CPD10 Counterbalanced Forklift Truck
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Forklift Truck/ CDD06 Counterbalanced Electric Pallet Stacker for SaleNegotiableMOQ: 1 Piece -
1.2-2t Electric Warehouse Series CDD16 Electric Pallet Stacker With D920 Configuration No.NegotiableMOQ: 1 Piece
-
1.2-2t Electric Warehouse Series CDD16 Electric Pallet Stacker With 360 Configuration No.NegotiableMOQ: 1 Piece
-
HELI Electric Pallet Stacker CDD16 With Configuration No.D930NegotiableMOQ: 1 Piece
-
1.2-2t Electric Warehouse Series CDD14 Electric Pallet StackerNegotiableMOQ: 1 Piece
Condition
New
Place of Origin
Jiangsu, China
Brand Name
HELI
Model Number
CPD10
Rated Loading Capacity
1000kg
Fork Length
1070mm
Fork Width
100mm
Internal combustion truck/CPD10 counterbalanced forklift truck
| Model | CPCD10 | CPCD15 | CPCD18 | CPQ(Y)D10 | CPQ(Y)D15 | CPQ(Y)D18 | |
| Power type | Diesel | Gasoline/LPG | |||||
| Load capacity | kg | 1000 | 1500 | 1750 | 1000 | 1500 | 1750 |
| Load center | mm | 500 | 500 | 500 | |||
| Pallet fork maximum height (with block shelf) | mm | 4039 | 4039 | 4039 | 4039 | 4039 | 4039 |
| Maximum lifting height | mm | 3000 | |||||
| Free hoisting height | mm | 152 | 155 | 155 | 152 | 155 | 155 |
| Overall height (upper frame protection) | mm | 2140 | |||||
| Full length (with cargo fork) | mm | 2936 | 3150 | 3193 | 2936 | 3150 | 3193 |
| Full width | mm | 1075 | 1075 | 1090 | 1075 | 1075 | 1090 |
| The minimum ground clearance (the door) | mm | 110 | |||||
| The minimum turning radius (outer) | mm | 1870 | 1950 | 1980 | 1870 | 1950 | 1980 |
| Least square channel width | mm | 1945 | 2025 | 2055 | 1945 | 2025 | 2055 |
| Pallet fork a*b*c | mm | 770*100*32 | 920*100*35 | 920*100*35 | 770*100*32 | 920*100*35 | 920*100*35 |
| Maximum speed (full/empty) | km/h | 17/18 | |||||
| Maximum traction(full/empty) | KN | 17.8/6.9 | 14.2/6.9 | ||||
| Maximum gradeability (full/empty) | % | 42/25 | 40/19 | 36/18 | 37/22 | 27/18 | 24/17 |
| Tire type (before/after) | 2/2 | ||||||
| Engine manufacturers/models | Kubota V2403 | NISSANK15 | |||||
| Rated power | KW/rpm | 35.4/2400 | 23.6/2400 | ||||
| Rated torque | Nm/rpm | 161.3/1600 | 103/1600 | ||||
| Total water (oil) | kg | 2300 | 2760 | 2970 | 2300 | 2760 | 2970 |
1.Have rich experience in the machinery parts.
2.10 years research and testing ,It have formed mature and stable system.
3.exporrting more than ten years .
4. Able to produce according your specification .
5. Standard packing or according your specification requested
Company |
Manufacture (more than 10 years' experienced factory) exporter |
|
Main export markers |
• Easter Europe • Western Europe • North America • Mid East Africa • Central/South/America • Asia • Australia Long-term cooperated Customer: Italy, Germany, Spain, Australia etc. |
|
Company advantages |
• Guarantee/warranty • Product performance • Prompt delivery • Quality approval • Service • Small order accepted |
TRADE TERMS
| Price Term | (FOB Lianyungang) | |||
Delivery Time |
15-25 days from the date of signing the contract and receiving advance payment. | |||
| Payment Item | T/T for 30% advance payment and 70% balance payment before shipment | |||
| Terms of Shipment | FOB | |||
| Port of Shipment | Lianyungang Port, China | |||
| Date of Shipment | To be discussed later | |||
