Home > Transportation > Forklifts & Parts > Forklift > HELI Electric Pallet Stacker CDD16 With Configuration No.D930

HELI Electric Pallet Stacker CDD16 With Configuration No.D930

HELI Electric Pallet Stacker CDD16 With Configuration No.D930 thumbnail-1
HELI Electric Pallet Stacker CDD16 With Configuration No.D930 thumbnail-2
HELI Electric Pallet Stacker CDD16 With Configuration No.D930 thumbnail-3
HELI Electric Pallet Stacker CDD16 With Configuration No.D930 photo-1
HELI Electric Pallet Stacker CDD16 With Configuration No.D930 photo-2
HELI Electric Pallet Stacker CDD16 With Configuration No.D930 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Yancheng Foreign Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MIAN PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HELI
Model Number CDD16
Rated Loading Capacity 1600kg
Fork Length 1150mm
Fork Width 185mm
Certification ISO9001
After-sales Service Provided No overseas service provided

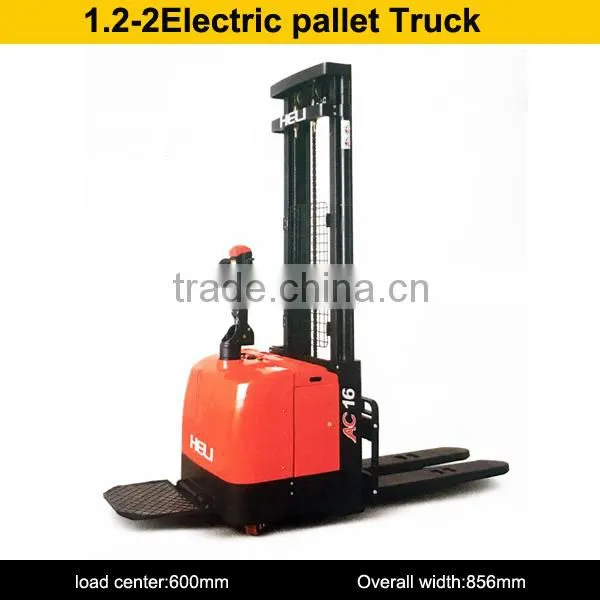

HELI electric pallet stacker CDD16 with configuration no.D930

Model CDD16
Configuration No. D930
Load capacity kg 1600
Load center mm 600
Operator type Pedestrian-controlled type/Rider-control type
Wheelbase(not lifting) mm 1325
Goods fork minimum height mm 1400/2000/2500/3000/3300/3600/4000
Maximum lifting mm 550/600/650/685
Max.travelling distance mm 86
Overall fork width mm 1150(1220)*185*55
Inside width between forks mm 2050/2470
Fork size mm 856
Overall length mm 1900/2500/3000/3500/3800/4100/4500
Overall width mm 1185/1535/1765/1980/2135/2335/2500
Overall height  mm 30
Min.Turningradius(pedal retracted/unfolded) mm 1580/1900
Min.Aisle width for pallets 800*1200 mm 2180/2580
Travel speed km/h 2210/2600
Lift speed mm/s 5/5
Gradeability % 130/230
Battery voltage/capacity
(5 hours to put battery)		 V/Ah 5/7
Battey weight kg 24/280
The total battery (reservation) kg 235
Service weight with battery kg 1240

 HELI electric pallet stacker CDD16 with configuration no.D930

HELI electric pallet stacker CDD16 with configuration no.D930

1.Have rich experience in the machinery parts.



2.10 years research and testing ,It have formed mature and stable system.



3.exporrting more than ten years .

4: Able to produce according your specification .

5: Standard packing or according your specification requested

Company

Manufacture (more than 10 years' experienced factory) exporter







Main export markers

• Easter Europe

• Western Europe

• North America

• Mid East Africa

• Central/South/America

• Asia

• Australia

Long-term cooperated

Customer: Italy, Germany, Spain, Australia etc.





Company advantages

•  Guarantee/warranty

•  Product performance

•  Prompt delivery

•  Quality approval

•  Service

•  Small order accepted

 HELI electric pallet stacker CDD16 with configuration no.D930
