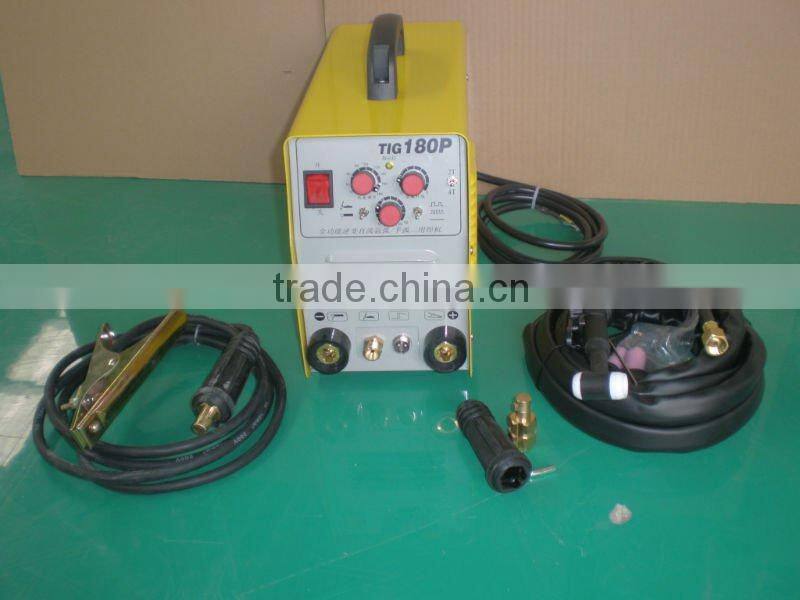

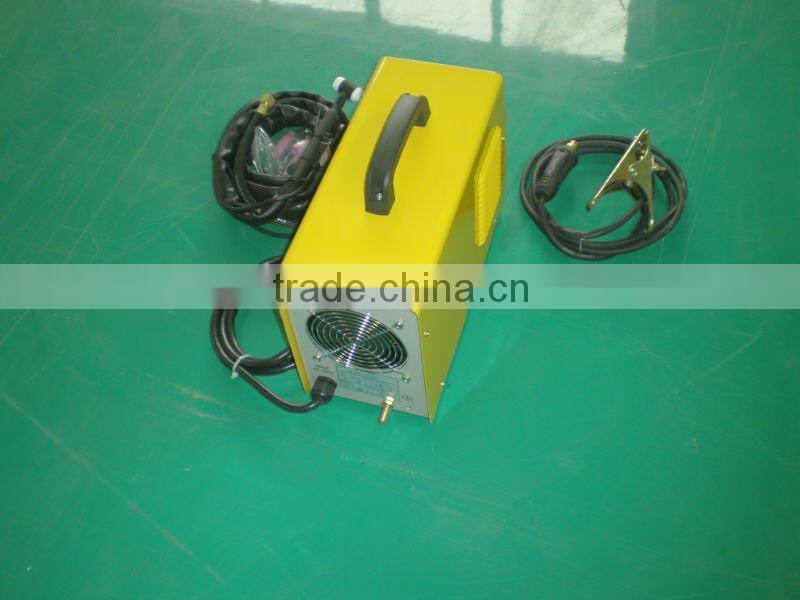

TIG-180P Tig Welding Machine(with Impulse)

Name: TIG-180P Tig Welding Machine(with Impulse)
Brand: ZZwelder
SKU: 121787447
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

ZZwelder

Model Number:

TIG-180P

Zhangzhou Welder Technology Exploiting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name ZZwelder

Model Number TIG-180P

Voltage 220V

Current 5-180A

Rated Capacity 3.9KVA

Rated Duty Cycle 60

Dimensions 565*283*495

Weight 8KG

Usage weld many kinds of materials, Welding

Specifications

1.Adopt the high frequency striking arc and impulse control
2.ISO2000/CCC
3.argon tig welding machine manufacturer

( DC argon tig welding machine with impulse)

1.Adopting reliable controlling circuit; wide range of current adjustment.

2.With DC/P function, HF, strong welding penetration.

3.Continuous adjust of impulse; suitable for automatic-welding.

4.Protective circuit inside.

5.Suitable for stainless steel, decoration, kitchen appliance etc.

♣Tig Pluse Welding Machine Technical Parameter:

Type	TIG-180P
Input Power Voltage(Frequency)	single-phase 220V±15% 50/60HZ
Rate Input Power Capacity(KVA)	3.9
No-load Voltage(V)	42
Output Current Adjustment Rang(A)	5-180
Rate Input Voltage(V)	17
Rate Duty Cycle(%)	60
No-load Consumption(W)	40
Efficiency(%)	85
Power Factor	0.93
Current Falling Time(S)	0-5
Post-welding Gas Blow Time	3±1
Current Impulse Frenquency(Hz)	Middle frequency 50-200
	Low frequency 0.5-2
Basic Current(%)	10
Weight(KG)	8
Size(mm)	565×283×495
Insulation Class	F
Protection Class	IP23
Arc-start Mode	HF
Suitable Welding Thickness(mm)	0.3-6
