DV-40 Vertical Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SHDA Series Double Column Automatic Horizontal Band SawNegotiableMOQ: 1 Set -
LV1125 Single Column Vertical LatheNegotiableMOQ: 1 Set
-
BMM Series CNC Horizontal Boring and Milling MachinesNegotiableMOQ: 1 Set
-
WCMP - 1200 x 2000 Portable CNC Plasma Cutting MachineNegotiableMOQ: 1 Set
-
LV Series Single Column Vertical Lathe MachinesNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Tianjin, China
Brand Name
BMT
Model Number
DV-40
Power(W)
1100
Dimension(L*W*H)
820*540*1810
Weight
N.G./G.W.(kg):335/375
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
It is qulity assured.Product Description

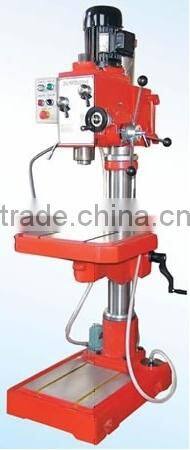

DV-40 vertical drilling machine
Technical Specification:
Model |
DV-40 |
Max. drilling capacity(mm) |
40 |
Max.tapping dia.(mm) |
M16 |
Column diameter (mm) |
120 |
Spindle travel(mm) |
120 |
Distance spindle axis to column generating line(mm) |
273 |
Max. Distance spindle nose to worktable(mm) |
745 |
Max. Distance spindle nose to base(mm) |
1200 |
Spindle taper |
MT4 |
Spindle speeds range(50Hz)(R·P·M) |
65-1400 |
Spindle speeds series |
6 |
Dimension of worktable surface(mm) |
500 x 450 |
Table travel(mm) |
515 |
Dimension of base(mm) |
700×480 |
Overall height(mm) |
1760 |
Motor(kw) |
1.1 |
N.G./G.W.(kg) |
335/375 |
Packing case dimensions(mm) |
820×540×1810 |
