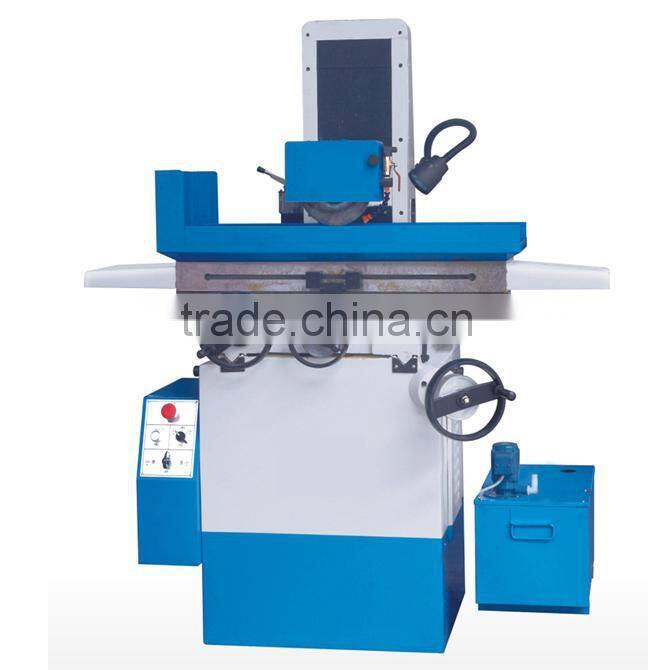

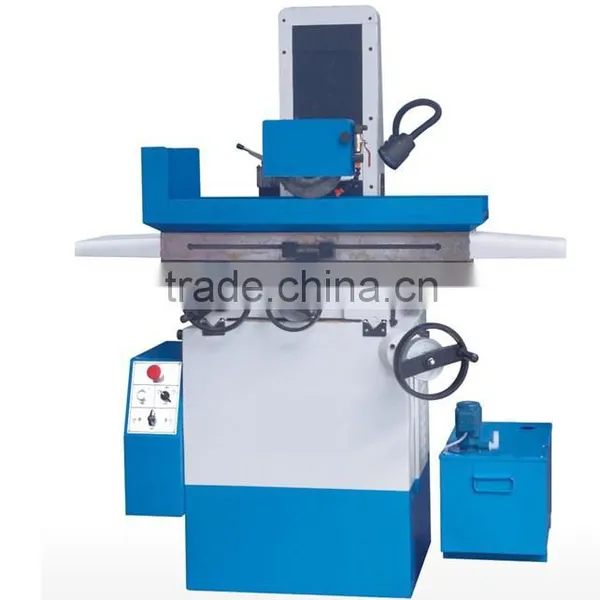

GS-25 Series Head Feed Surface Grinding Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Place of Origin Tianjin, China

Brand Name BMT

Model Number GS-25 series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

GS-25 series head feed surface grinding machine

Product Description

GS-25 series head feed surface grinding machine

Technical Specification:

Model			GS-25	GS-25H (Hydraulic)
Table	Table Longitudinal travel	mm	520	500
	Table cross feed	mm	280	250
	Table working surface (W×H)	mm	250×500	250×500
	Max. size of workpiece to be ground (W×L×H)	mm	250×500×300	250×500×300
	Table "T" slots	mm	1	1
	Width	mm	14	14
	Chuck size (W×L×H)	mm	250×500	250×500
Grinding wheel head	Distance from grinding wheel spindle-axis to table surface	mm	100-400	100-400
	Max. vertical travel of head	mm	400	400
	Wheel-head feed for each turn of hand-wheel	mm	4	4
	Cross	mm	2	2
	Vertical
	Wheel-head feed for esch of hand-wheel	mm	4	4
	Cross	mm	2	2
	Vertical
	Min. Cross-feed hand-wheel dial graduated to	mm	0.02	0.02
	Min. Down-feed hand-wheel dial graduated to	mm	0.01	0.01
	Grinding wheel size (O.D×W×I.D)	mm	φ200×16×φ31.75	φ200×16×φ31.75
Motor power	Electrical equipment total capacity	KVA	1.5	1.5
	Grinding wheel motor power	KW	1.5	1.5
	Speed	r/min	2850	2850
	Hydraulic pump motor power	KW		1.1
	Coolant pump motor power	W	50	50
	Delivery	L/min	12	12
work accuracy	Working surface to base level parallelism	mm	00:00.0	00:00.0
work accuracy	Surface roughness	μm	Ra0.63	Ra0.63
Base parameter	Overall dimensions (L×W×H)	mm	1600×1100×1600	1600×1100×1600
	Packing case dimensions (L×W×H)	Cm	176×130×190	176×130×190
	N.W	kg	850	1150
