MAIN TECHNICAL SPECIFICATION

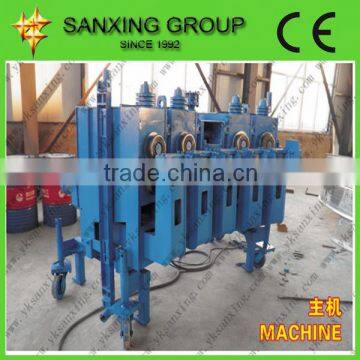

Size:Forming machine:1500mm × 1200mm × 1500mm
Curving machine:1500mm× 1200mm ×1000mm
Total Weight: about 3000kg
Press wheels:carbon steel,high-frequency quenching HRC48 - 52
Gears:carbon steel , high-frequency quenching HRC48 - 52.
Sprocket wheel: carbon steel , high-frequency quenching HRC48 - 52.
Thickness of the coil: max 3 mm
Suitable diameter: ≥4m
Electric Standard: 380V / 50 HZ / 3 PHASE
Raw material and thickness:
Galvanized steel: 2-4mm
Chromium-nickel steel: 2-3mm, anti-corrosive
Plastic-coated steel: 2-4mm
Carbon steel: 2-4mm
Width of raw material:495mm
Dia meter range of finished silo:2.5-50m
Height of finished silo: usually less than 30m
Feed speed: 3.5-4.5m/min
Features of Steel Silo
(1).The period of conduction is short.
(2).Simply installation method: assembly.
(3).High precision.
(4).Save steels.
(5).Good tightness.
(6).Easy maintains.
(7).Service can up to all life long
(8).Less foundation cost, light weight.
(9).The silo is made of galvanized steel sheet.
(10).High degree of standardization.
(11).The main structure of assembly steel silo: roof of silo, wall,
stiffener, high-quality bolt and seal
Applied ranges of Steel Silo
Our silo systems are extensively used in many industries; for example, cement building materials, grain processing and storing, and feed, environmental protection, and so on. Our silos are widely used to store materials of powder, granule, block and liquid. Such as flour, starch, cement, seeds, grain, wood pellet, areca, feed, grease, brewing, brewery, alcohol, malt, cements material industries, etc.
Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.
1) guarantee for whole machine except of bearing parts.
2) 24 hours technical support by e-mail.
3) Use-friendly English manual and videos.
