New Invension Chemical Storage Silo Roll Forming Machine
- 30 Set / Sets per Month
- Dalian
- T/T Credit Card
Product Details
| Place of Origin: | Liaoning, China | Brand Name: | SX | Model Number: | 1.5/3.0/4.0 mm |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New Invension Chemical Storage Silo Roll Forming Machine
Steel silo forming machine,steel silo making machine,spiral steel silo machine is for producing spiral/helix steel silos by strong seaming, not by welding or assembling.
This machine adopts special technology for spiral steel silo, helix steel silo by very strong seaming, not welded or assembled. The technology is same to Lippo Germany. Such steel silo can replace concrete silo in most projects, with much shorter production period and less project cost.
This machine can form 1.5-4mm thick, 500mm wide galvanized steel, stainless steel or special steel materials into spiral /helix steel silos in diameter 4-50m, for storing corn, paddy, grain, cement, water, chemical materials, etc.
Panel

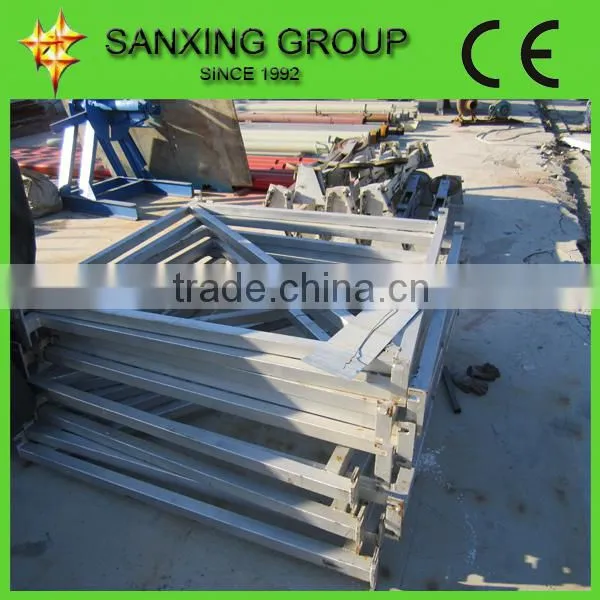

Equipment

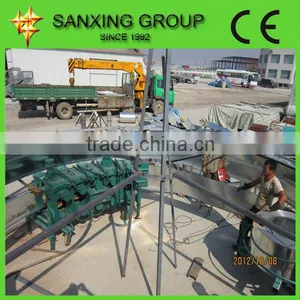

Construct

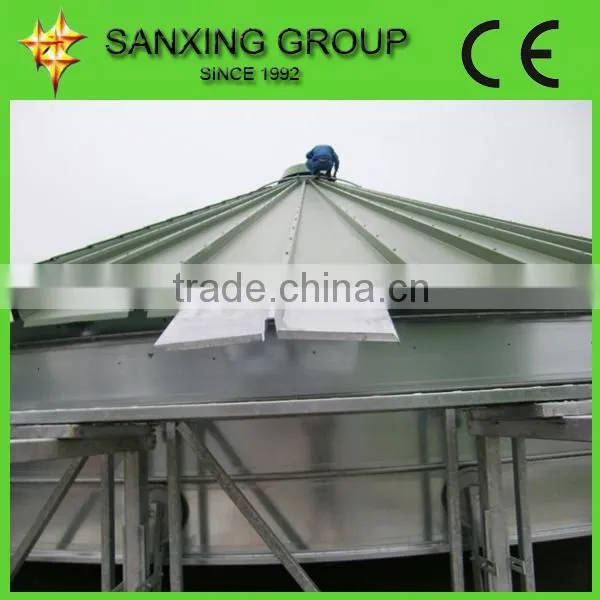

Projects
Main technical specification
Size:Forming machine:1500mm × 1200mm × 1500mm
Curving machine:1500mm× 1200mm ×1000mm
Total Weight: about 3000kg
Press wheels:carbon steel,high-frequency quenching HRC48 - 52
Gears:carbon steel , high-frequency quenching HRC48 - 52.
Sprocket wheel: carbon steel , high-frequency quenching HRC48 - 52.
Thickness of the coil: max 3 mm
Suitable diameter: ≥4m
Electric Standard: 380V / 50 HZ / 3 PHASE
Raw material and thickness:
Galvanized steel: 2-4mm
Chromium-nickel steel: 2-3mm, anti-corrosive
Plastic-coated steel: 2-4mm
Carbon steel: 2-4mm
Width of raw material:500mm
Dia meter range of finished silo:2.5-50m
Height of finished silo: usually less than 30m
Feed speed: 3.5-4.5m/min
The steel silo ( pool wall) are widely used as:
1) Material shape (storage): granular material, powder material, liquid material.
2) Industry: grain, feedstuff, Brewing, oil, medicine, food, cement, water treatment,etc.
3) Varieties in detail (storage): wheat, soybean, maize, sorghum wheat flour,bulk cement, fly ash, sewage, water,
chemical syrup, etc.
4) Ordinary black steel sheets, galvanized steel sheets, nickeling steel sheets, high strength steel sheets, stainless steel sheets, aluminum alloy sheets, sandwich panels, plastic coated metal sheets. Among them, the steel sheets, galvanizd steel sheets, aluminum plate sheets, aluminum alloy sheets, chromium plate sheets, nickeling steel sheets, sandwich
panels can be curved in double layers.
In a word, these metal containers are widely used in our country. it can replace the traditional welding metal containers. So the excellent construction speed , reliable performance and quality assurances of Rx4.0m/m steel belt forming and
seaming machine become the preferred choice of the investment professionals
Packing:As you like.
Shipping Terms:FOB Dalian,CIF,CFR.
Our Company
Our Certificates
Our Customers
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment term: TT 30% deposit in advance,the balance (70%)before our shipment.
Delivery time: Within 30 workdays after receiving 30% deposit.
Warrantee period: 3 years.During 3 years, all the damaged parts can be changed into new ones only if the buyer sends the damaged ones back, but the express cost is afforded by the buyer(man-made damage is not included).
Training: If the buyer needs us to go to the project site abroad for training, the buyer affords the ticket, visa, hotel and meals, and the salary $150/day/person. The training period has to be within 15 days.
