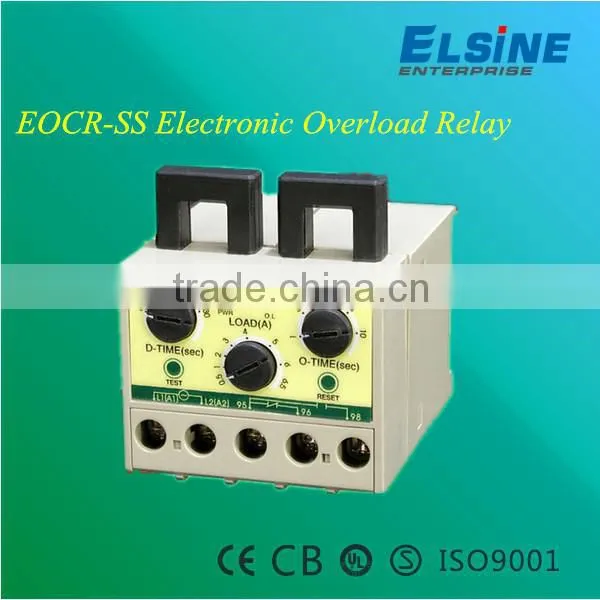

EOCR-SS Electronic Overload Relay
2 Integral Current Transformers
Electronic Shear-pin Function
Independently Adjustable Starting Trip Delay
(D-Time) & Operating Time (O-TIME)
Features:
- Phase Loss Protection
- Typical Wiring
- Compact Design
- Multiple Protection Functions
- Wide Current Adjustment Range (10: 1)
- Ammeter Function
- Trip Indication LED
- High Accuracy
- Manual Instantaneous Reset
- Electrical Remote Reset
- Test Function
- Ambient Insensitive
- Low Energy Consumption
14. Fail-safe Operation (No Volt Release)

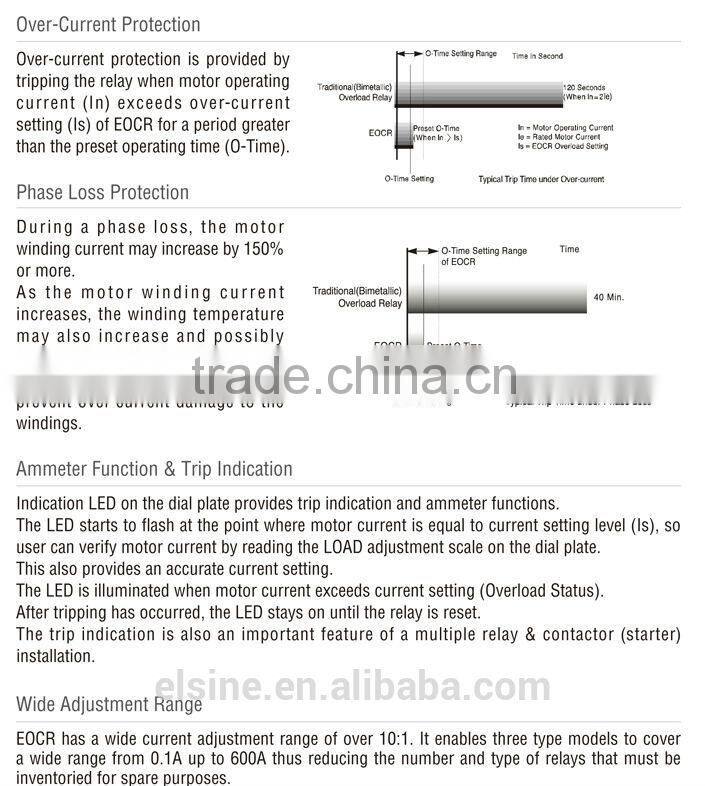

Protection:
Protective Item |
Operating (Trip) Time |
Over-current |
O-TIME |
Phase Loss |
O-TIME |
Locked Rotor |
O-TIME + D-TIME |
Specification:
Current setting |
Type |
Range |
|
05 |
0.5 - 6A |
30 |
3 - 30A |
|
60 |
5 - 60A |
|
100~(over 60A) |
Ext. CT Option |
|
Time Setting |
Start D-TIME |
0.2 - 30 sec |
Trip O-TIME |
0.2 - 10 sec |
|
Control Voltage(50/60Hz) |
220 |
90 - 260VAC |
440 |
320 - 480VAC |
|
Output Relay |
Mode |
1-SPDT(1C) |
Rating |
3A/250VAC Resistive |
|
Status |
Normally Energized |
|
|
Time-Current Characteristic
|
Definite |
|
Operating (Trip) Indication |
2-LED |
|
Mount |
35mm Din-rail / Panel |
|

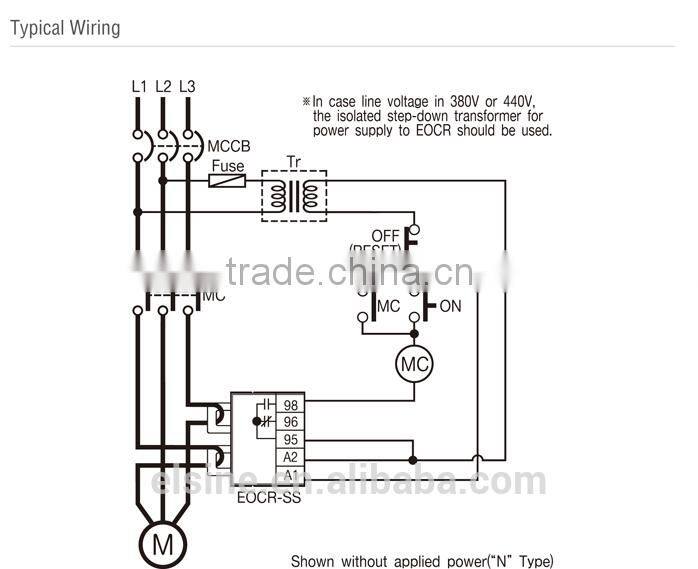

Wiring Diagram:
Design box for customers
Packed with six belt/Strapping packing strip/belt/tape
Strong five layer cartons (3-layered carton)
