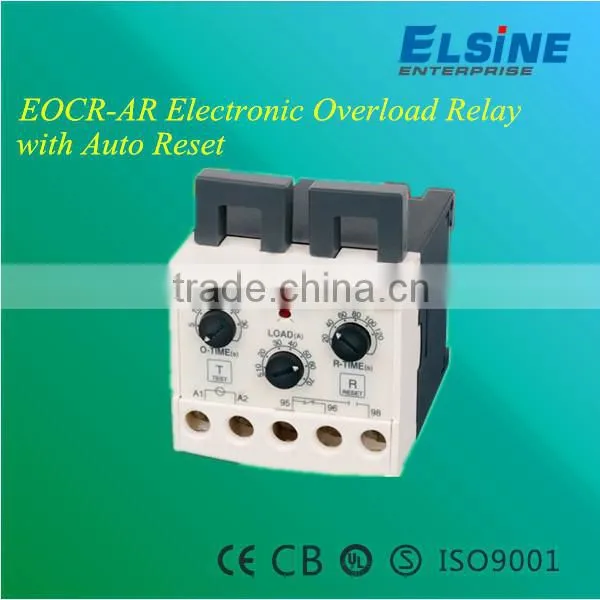

EOCR-AR Electronic Overload Relay with Auto Reset
Feature:
Adjustable Auto Reset Time 0.2-120 seconds
Single Timer for starting and Trip Delay
Overload and phase Loss Protection
Visual Current Setting Aid and Trip Indication LED
Flexible Power Supply 180 to 260VAC, 320 to 480 VAC
Fail-safe Protection
Description:
Two of three phase motor currents are monitored by current transformers. The CTs form integral part of the relay and external CTs are required for currents above 60AMPS. Internal solid state circuitry compares the actual motor current with the preset point, due to overload or single phasing, red LED illuminates and after the elapse of the preset delay time, SPDT relay switches contact. The red LED remains illuminated, indicating an overload trip has occurred.

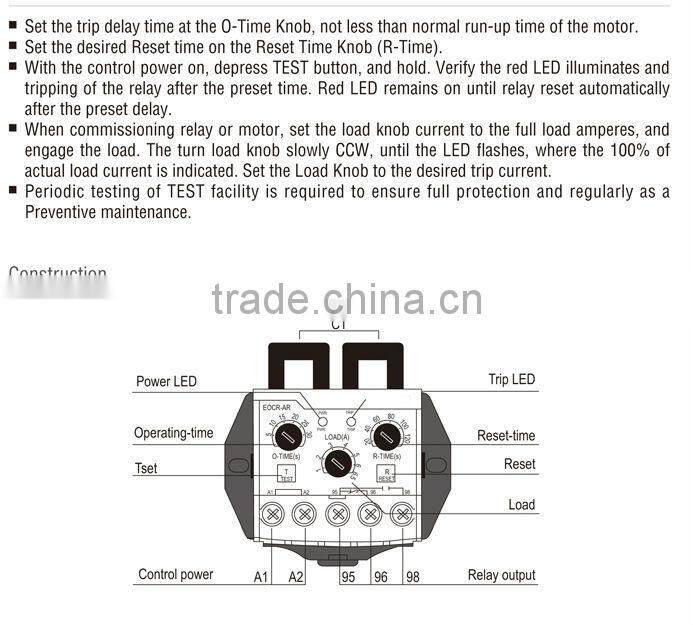

After the elapse of preset RESET delay time (Maximum 120 sec). It resets automatically immediate reset with of RESET button or remote electrical reset by interrupting control power is possible. The starting delay and trip delay times are simultaneously set with single O-time Knob and these timing functions are not independent. TEST button provides means of testing the operation and integrity of the device with or without motor running. The actual load current can be determined with visual aid of LED (no Ammeter required). Simply adjust the load knob slowly anti-clockwise until red LED flickers. The flickering red LED indicates 100% of actual motor current.

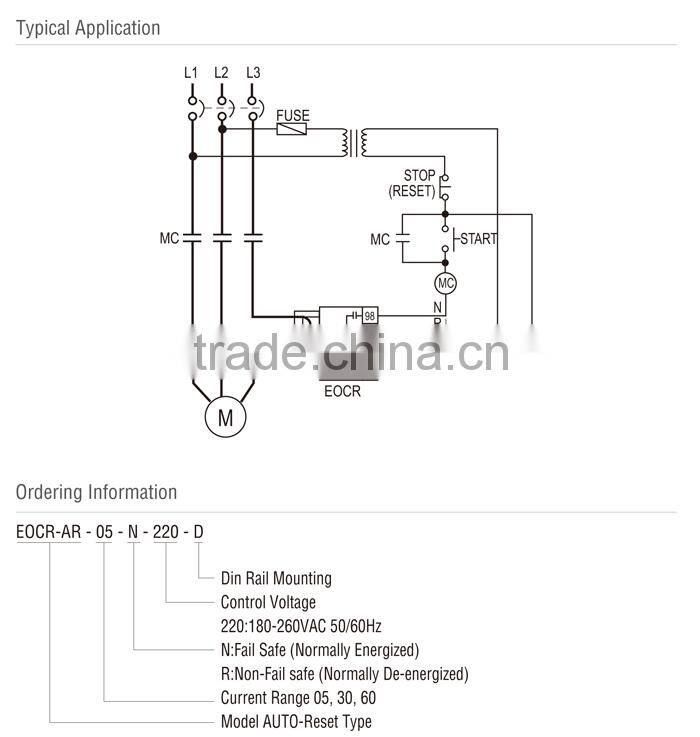

Specifications:
MODEL | EOCR-AR | |||
Current Range | 05)0.5-6A (scale 6.5A) | |||
30)3-30A (scale 35A) | ||||
60)5-60A (scale 70A) | ||||
Over 60A to 800A, 05 fitted w/external CTs | ||||
Operating Time | O-Time | 0.2-30 Seconds | ||
Auto Reset Time | 0.2-120 Seconds | |||
Accuracy | Current | Plus and minus ±10% | ||
Time | Plus and minus ±15% max. time set value | |||
Time Characteristics | Definite Time | |||
Control Voltage | 220 )180-260VAC ,50/60HZ | |||
440)320-480VAC, 50/60HZ | ||||
Rated Voltage | 660VAC, 50/60HZ | |||
Current sensing | 2 CTs | |||
Output Mode | Relay energized in normal state (N Type, fail-safe) | |||
Output contacts | SPDT, 3A/250VAC, resistive | |||
Expected relay life | Mechanical: 20,000,000 operations | |||
Electrical: 100,000 min at rated load | ||||
Environment | Temperature | Run | -20°C to +70°C degree centigrade | |
Store | -30°C to +80°C degree centigrade | |||
Insulation | Between casing and circuits | |||
Over 10M Ohms with DC500V megger | ||||
Dielectric Strength | Between casing and circuits: AC2000V, 60HZ, 1min | |||
Between contacts: AC 1000V, 60HZ, 1min | ||||
Between circuits: AC 2000V, 60HZ, 1min | ||||
Power Consumption | Under 2W | |||
Mounting | Din rail 35mm standard, panel adapter provided | |||
Weight | Approximately 159g | |||
