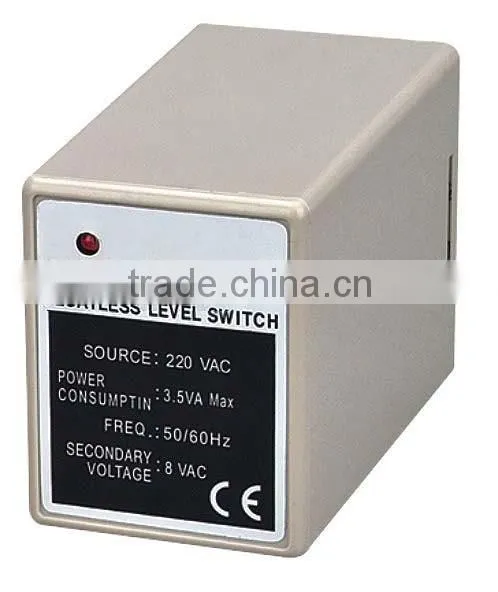

Plug-in type Floatless level switch 61F-GP-N( 11Pin)/ Water level controller/Floatless relay/ water Level controller
For control of ordinary purified water or sewage water
- Compact: 49.4×38×84 mm (H×W×D).
- Easy identification of operating status with LED operation indicator.
- Independent DPDT contacts on 11-Pin Models.
Item: General-purpose Controller 61F-GP-N
Supply voltage: 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
Operating voltage range: 85% to 110% of rated voltage
Interelectrode voltage: 8 VAC
Interelectrode current: Approx. 1 mA AC max.
Power consumption: Approx. 3.5 VA max.
Interelectrode operate resistance: 0 to approx. 4 kΩmin
Interelectrode release resistance: Approx. 15 K Ωmin
Response time: Operate:80 ms max.
Release:160 ms max.
Control output: 1 A, 250 VAC (Inductive load: cosφ = 0.4)
3 A, 250 VAC (Resistive load)
Ambient temperature: Operating:–10 to 55°C (–10 to 70°C for high-temperature controller)
Ambient humidity Operating: 45% to 85% RH
Insulation resistance: 100 MΩ min. (at 500 VDC)
Dielectric strength: 2000 VAC, 50/60 Hz for 1 min.
Life expectancy Electrical: 100,000 operations min.
Mechanical: 5,000,000 operations min.
Weight: Approx. 155 g
Accessories:Hold-down clip PFC-N8
Socket:PF113A (PF113A-E)
Internal Circuit Diagrams:
Note: When applying a self-holding circuit, short between terminals 5 and 6 and use terminal 7 as E2.

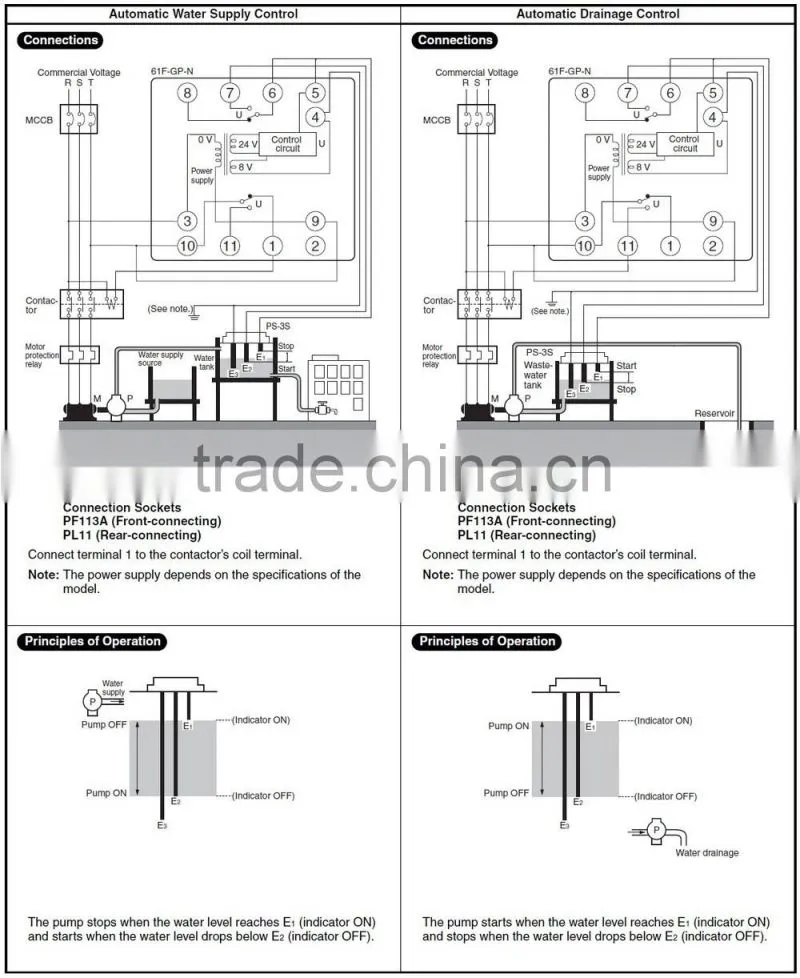

Automatic Water Supply and Drainage Control:
Note: 1. The length when using completely insulated, 600-V, 3-conductor (0.75 mm2) cabtire cables. Usable cable lengths will become shorter as the cable diameter or number of conductors becomes larger. For details, refer to Safety Precautions for Floatless Level Controllers.
2. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals, between power terminals and contact terminals, and between Electrode terminals and contact terminals. For details, refer to Safety Precautions for Floatless Level Controllers.
3. Possible to use with 15 kΩ or less, however, this may cause reset failure.
4. When ordering, specify the desired operating voltage at the end of the model number.
Example: 61F-GP-N [220 VAC] →Desired supply voltage

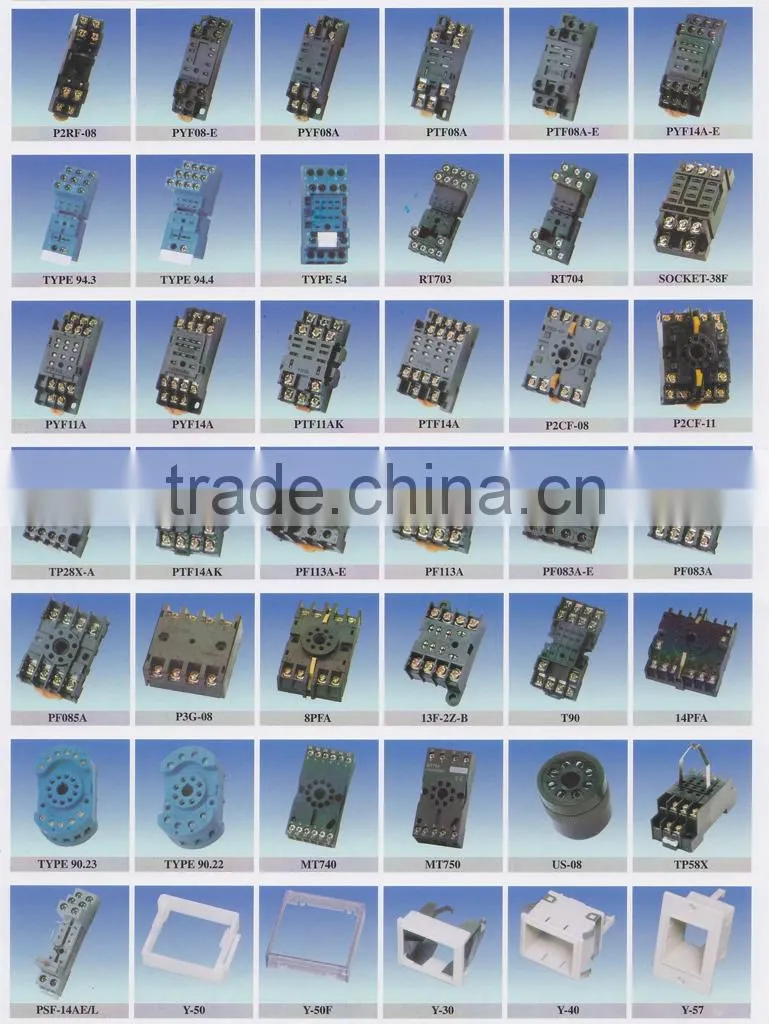

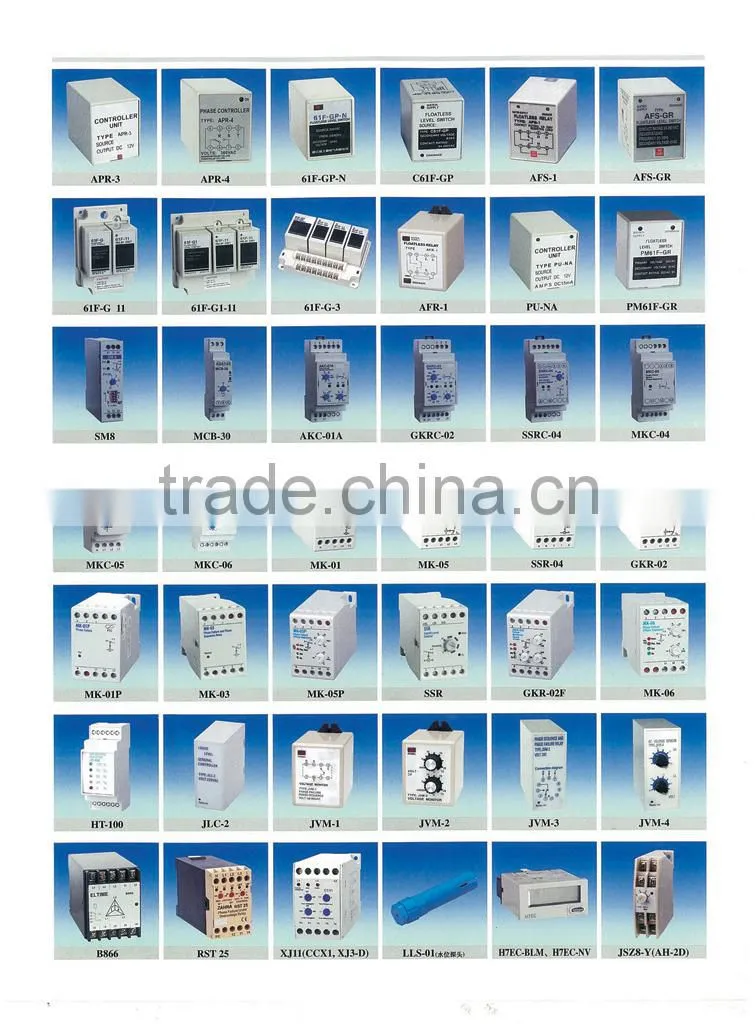

We supply all kinds of realy and relay sockets, such as APR-3 APR-4 JVM-1 PU-NA;Rev Preventing relay,
AFR-1; PM61F-GR; AFS-GR; AFS-1; 61F-GP-N(A61F-GP); C61F-GP;61F-G 11; 61F-G1; 61F-G-3 etc.
