Specifications
Prevents damage to electrical appliances from power fluctuations, specifically over and under voltage levels of long duration
Automatic household electrical appliances protection
Protection for all electrical and electronic appliances:
Electronic equipment in the office
Electronic equipment in the home
Computers
Telecoms equipment
Fridges and freezers
Application:
Prevents damage to electrical equipment/appliances from power flictiations, specifically over or under voltage levels of long duration. Works by disconnecting power when voltage level exceeds set parameters.
When the main power supply fluctuates outside pre-set tolerances (nominally 190V and 260V) the power to your equipment is disconnected by the Switcher. The Switcher then monitors the voltage for a short period to ensure the power has stabilized before re-connecting.
In addition, a start-up delay period provides protection against power-back surges commonly experienced after resumption of power in a power cut situation. Surge and spike protection is also incorporated to ensure protection.
For complete protection simply plug the Switcher into the mains and plug in your appliances.
(some models in the Switcher range are direct wired.)Protection is automatic.
Specifications of this series voltage protection follows:

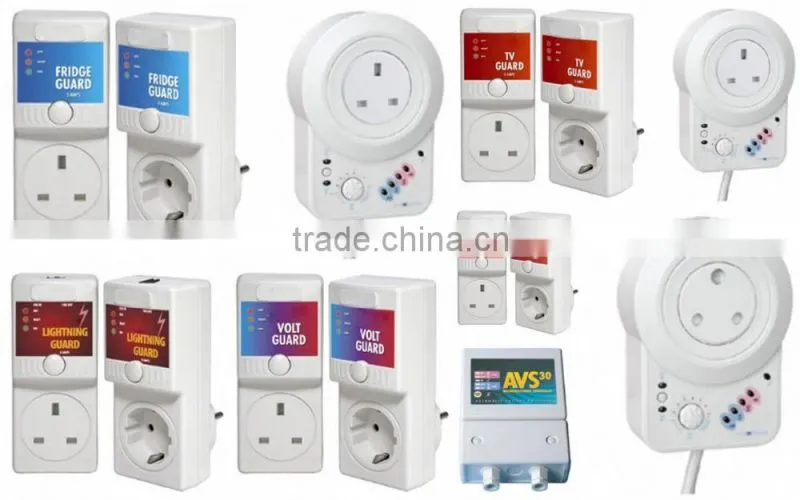

Hivolt Guard, Fridge Guard, Volt Guard, AVS13A, AVS15A, AVS30A, AC GUARD 16A, 20A, 25A,
32A, Freoguard, Multi Guard, AVS3P, DSP, AVS303.
Three types of Socket: British type, European type and American type.

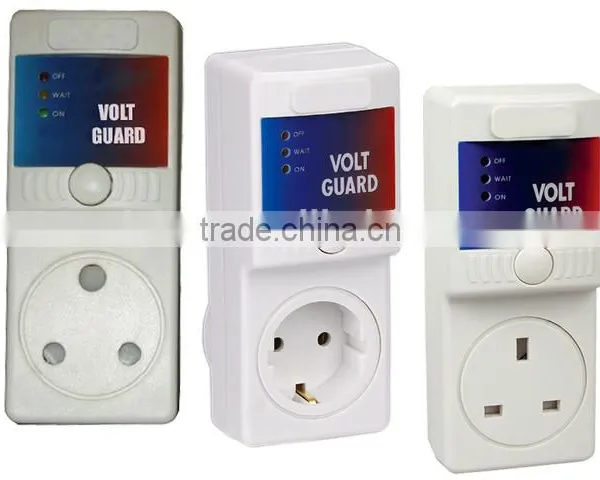

VoltGuard AVS7A Over and under voltage Protector

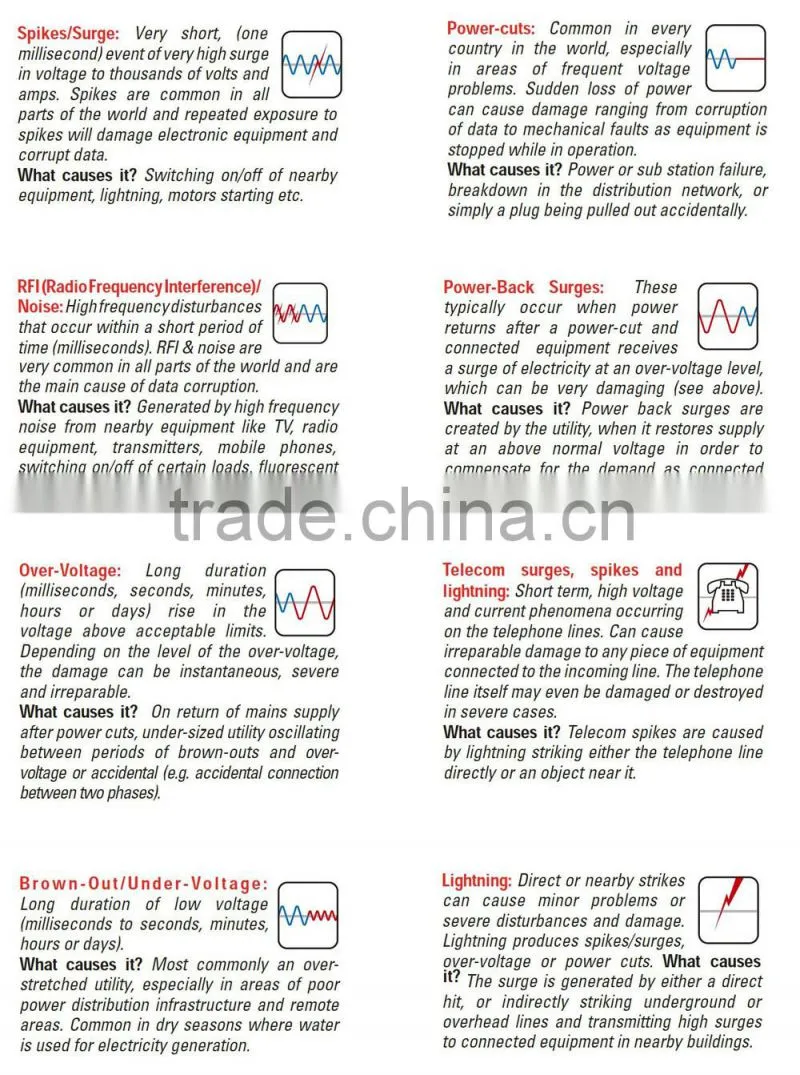

Protection against:
•Over-Voltage
•Under-voltage
•Surges/Spikes
•Power back surges
Low power (under-voltage) will damage any refrigeration appliance's compressor and High Power (Over voltage) also will damage any electrical or electronic equipment.
The VoltGuard combines the protection of the FridgeGuard and HivoltGuard by disconnecting the power when it goes below or above un-acceptable level. Additionally, there is a delay when power returns to normal.
This will ensure that the appliance is not switched on-off repeatedly during fluctuations nor it is subjected to a massive surge normally experienced when power returns after power cuts.
Protection against:
Technical Data:
Nominal Voltage |
230V |
Current Rating |
7Amps |
Frequency |
50/60Hz |
Over/Under-Voltage Disconnect |
185/260V |
Over/Under-Voltage Reconnect |
190/258V |
Mains Spike Discharge Amps |
6.5KA |
Spike Protection |
160J |
Wait Time |
30Seconds |
Weight/PC |
150g |
Carton Dimensions |
47×36.5×40cm |
PCS/CTN |
50 |
VoltGuard Connection Diagram:

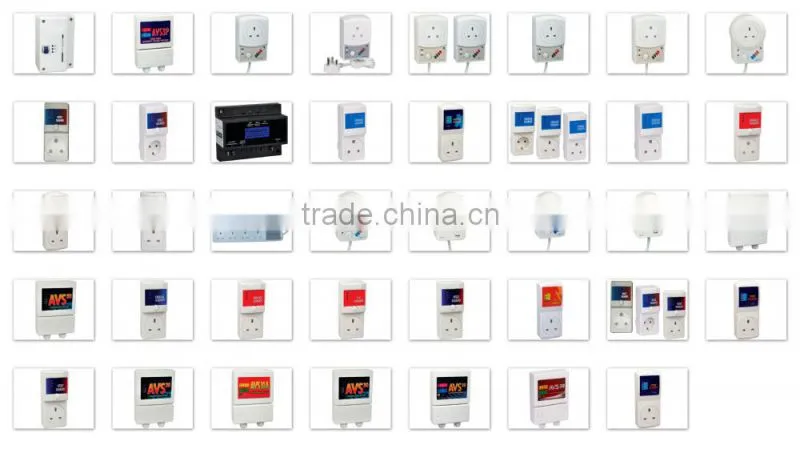

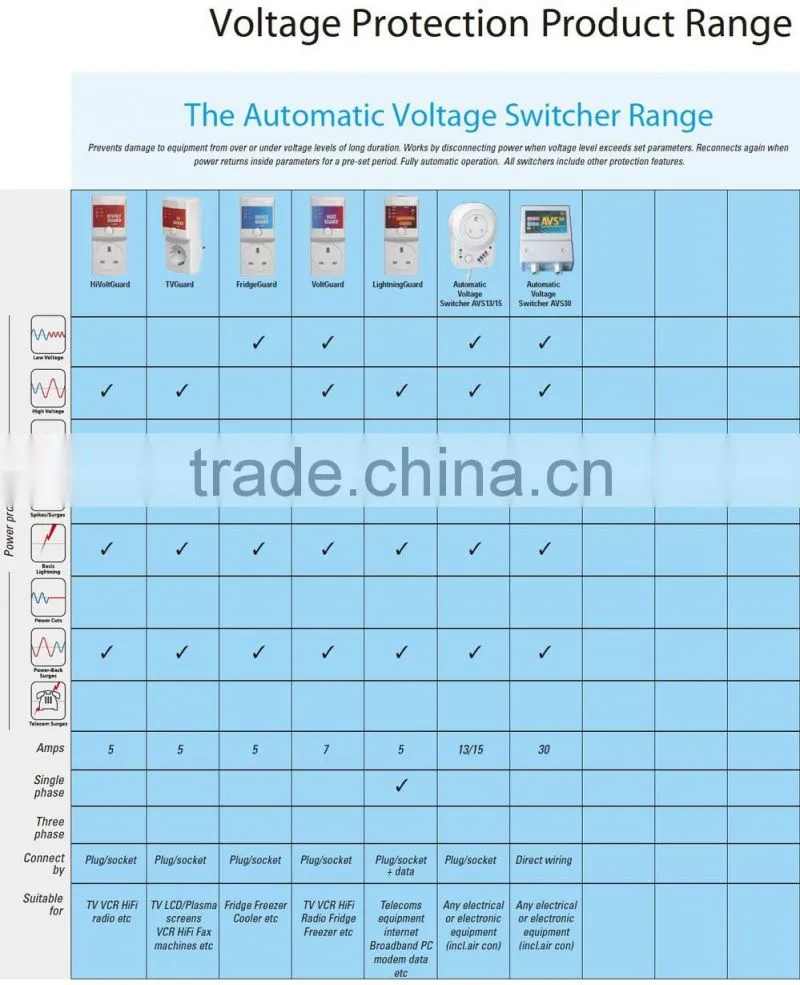

Voltage Protection Product Range:
