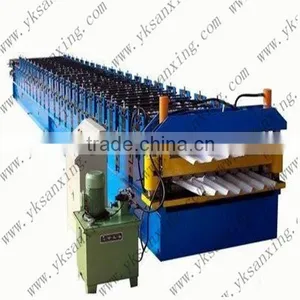

Double Layers Flat Sheet Making Machine
Machine
Decoiler
Forming
Bending
Panel
Main Technical Specification
Size: 6400mm × 1300mm × 1400mm
Total Weight: about 5000kgs
Thickness of the coil: 0.3-0.6mm
Usage: Widely used as wall
Controlling System: PLC
Main Motor Power: 5.5KW
Hydraulic Power:3.0KW
Working Speed: 8000-12000mm/min
Protective Cover:Ensure the safety in working production
Materials of Rollers:45# steel,surface chromed
Driving Chains:12A-1-GB/T1243-97
Materials of Shafts:45# steel,surface,galvanized
Materials of Cutting Blade:Cr12Mov,quenched
Side Panels:Q235 carbon structural steel, surface galvanized
Driving Sprocket:45# steel,12A sprocket,surface galvanized,quenched(teeth parts)
Driving Gear:45# steel,surface galvanized,quenched(teeth parts)
Frame Structure:Q235 carbon steel subastral,surface galvanized
Type
Type |
Feeding Width
|
Effective Width
|
Groove Depth |
Thickness |
Usages |
SX-840 |
1000mm |
840mm |
25mm |
0.3-0.6mm |
Widely used as roof and wall |
SX-900 |
1000mm |
900mm |
15mm |
0.3-0.6mm |
|
SX-930 |
1000mm |
930mm |
14mm |
0.3-0.6mm |
|
SX-1000 |
1250mm |
1000mm |
35mm |
0.3-0.6mm |
Packing:container
Shipping Terms:FOB Dalian,CIF,CFR
Our Company
Our Certificates
Our Customers
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment term: T/T ,30% deposit in advance,the balance 70% before our shipment.
Delivery time: Within 30 workdays after receiving 30% deposit.
Warrantee period:3 years.During 3 years, all the damaged parts can be changed into new ones only if the buyer sends the damaged ones back, but the express cost is afforded by the buyer(man-made damage is not included).
Training: If the buyer needs us to go to the project site abroad for training, the buyer affords the ticket, visa, hotel and meals, and the salary $150/day/person. The training period has to be within 15 days.
