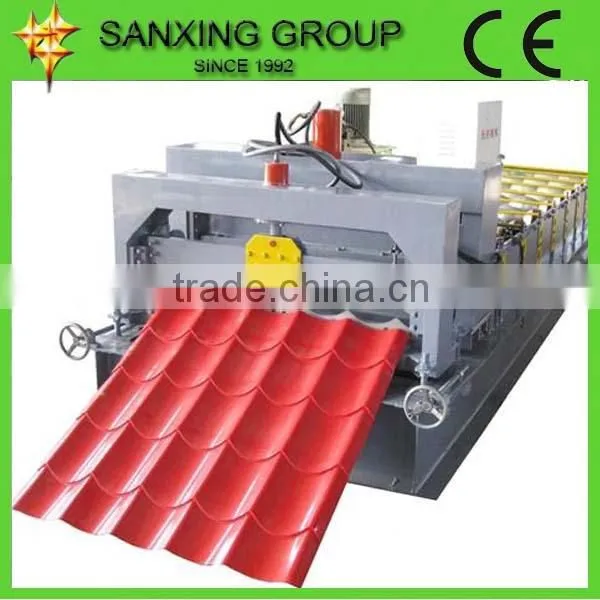

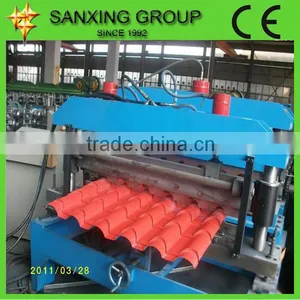

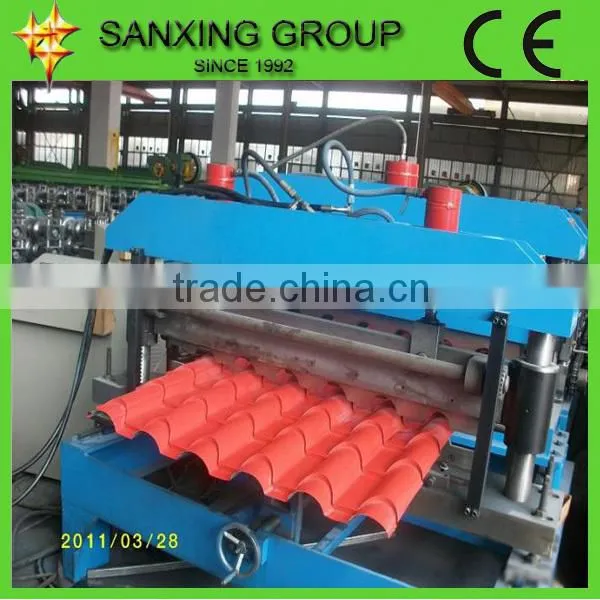

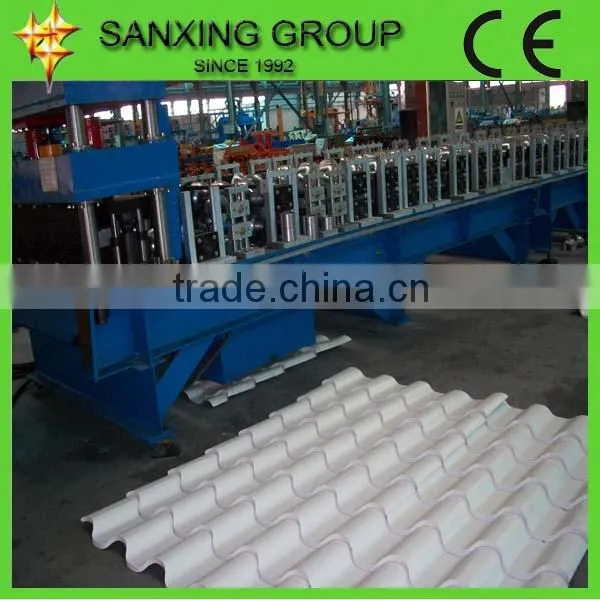

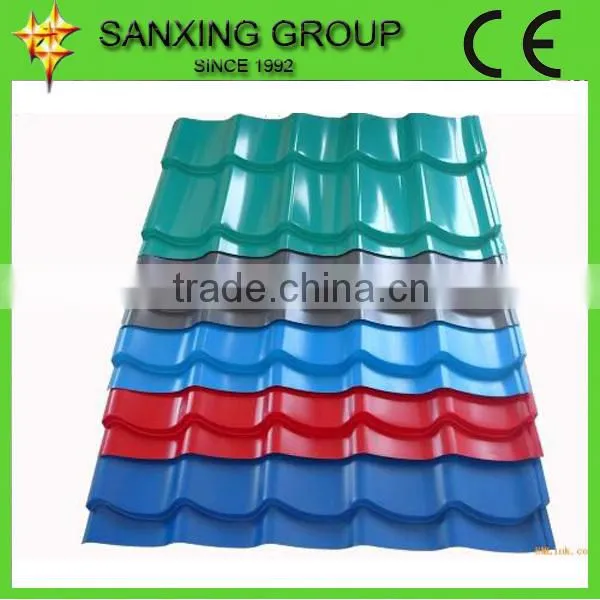

FLAT SHEET CORRUGATED ROLL FORMING MACHINE
US$ 13,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Beam For Guard Forming MachineUS$ 35,000 - 50,000MOQ: 1 Set -
Guard Rail Sheet Forming MachineUS$ 35,000 - 50,000MOQ: 1 Set
-
Two-Layer Flat Sheet Corrugated Roll Forming MachineUS$ 4,000 - 18,000MOQ: 1 Set
-
Double Layers Flat Sheet Making MachineUS$ 4,000 - 18,000MOQ: 1 Set
-
Glazed Tile Machine For Wall And RoofUS$ 20,000 - 30,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Concrete
Use
Roof
Production Capacity
1000-820
Place of Origin
Liaoning, China
Brand Name
SX
Model Number
SX-1000-820/1250-1100
Power(W)
9.5
Voltage
380V
Dimension(L*W*H)
7000*1200*1100
Weight
4.5 T
Certification
CE
Warranty
3 YEARS
After-sales Service Provided
Engineers available to service machinery overseas
roll forming machine
SANXING SX-1000-820
1.main motor power:9.5KW
2.Hydraulic station power: 4.0KW
3.Sprocket: P-25.4
4.Forming station:12
5.Material of roll:45#steel hard chrome plating
6.Length of production line:10m
7.Installation dimension about(L*W*H): 8m*1.5m*1.4m
8.Hydraulic oil pump:CB-E 310
9.Diameter of principal axis:70mm
10.Material of roll: Cr12 quenching
11.Thickness: 0.3-0.8mm
12.Total weight: about 4.5T
13.Forming speed:3-6m/min
14.Length of tolerance: +1.5mm
15.Cover width:820mm
16.Coil width:1000mm
17.Wave height:31mm
Wave length:201.75mm
