Specifications
enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easyLGD Series Distribution Box
LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.
It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions. The plastic unit of the LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.
This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.
This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

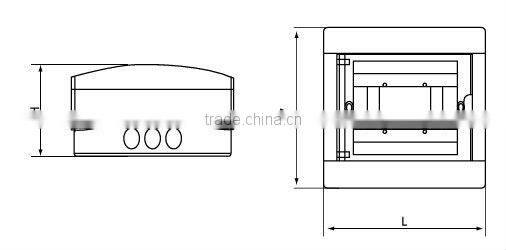

Model |
Dimension |
||
L(mm) |
W(mm) |
H(mm) |
|

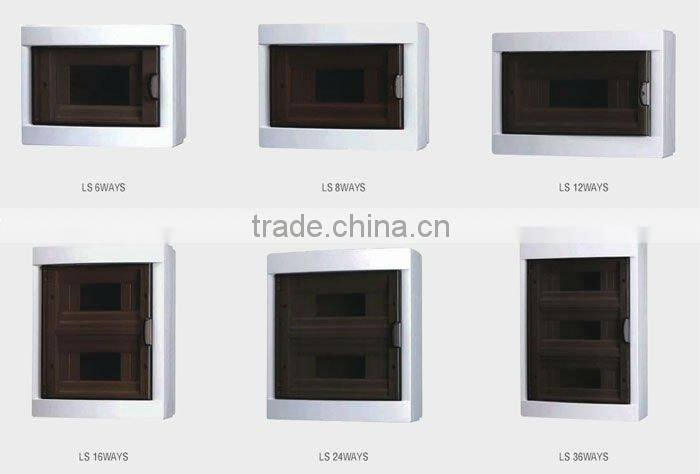

LS 6WAYS |
185 |
141 |
100 |
LS 8WAYS |
230 |
175 |
100 |
LS 12WAYS |
308 |
290 |
100 |
LS 16WAYS |
233 |
290 |
104 |
LS 24WAYS |
314 |
344 |
104 |
LS 36WAYS |
314 |
440 |
104 |
