Specifications

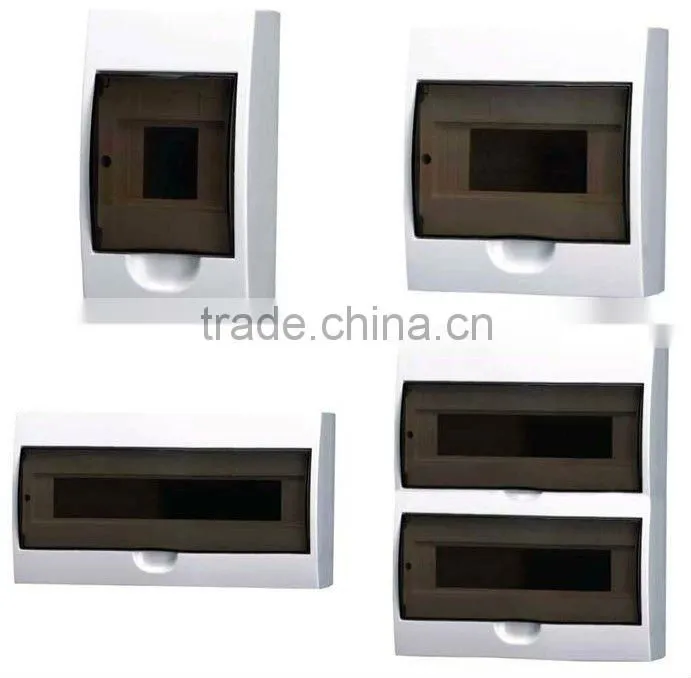

used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so onSurface Mounted TSM Plastic Distribution Box /Lighting Distribution Box
Application: TSM Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.
It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions. The plastic unit of the modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.
This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.
This distribution box has2way, 4way,6way,8way,10way,12way,15way,18way,20way,24way upto 45way
Model |
Dimension |
||
L(mm) |
W(mm) |
H(mm) |
|
TSW-2WAYS |
90 |
140 |
60 |
TSW-4WAYS |
112 |
210 |
100 |
TSW-6WAYS |
148 |
210 |
100 |
TSW-8WAYS |
184 |
210 |
100 |
TSW-10WAYS |
222 |
210 |
100 |
TSW-12WAYS |
256 |
210 |
100 |
TSW-15WAYS |
312 |
210 |
100 |
TSW-18WAYS |
364 |
222 |
100 |
TSW-24WAYS |
270 |
325 |
100 |
TSW-36WAYS |
305 |
473 |
100 |
TSW-45WAYS |
473 |
326 |
100 |
