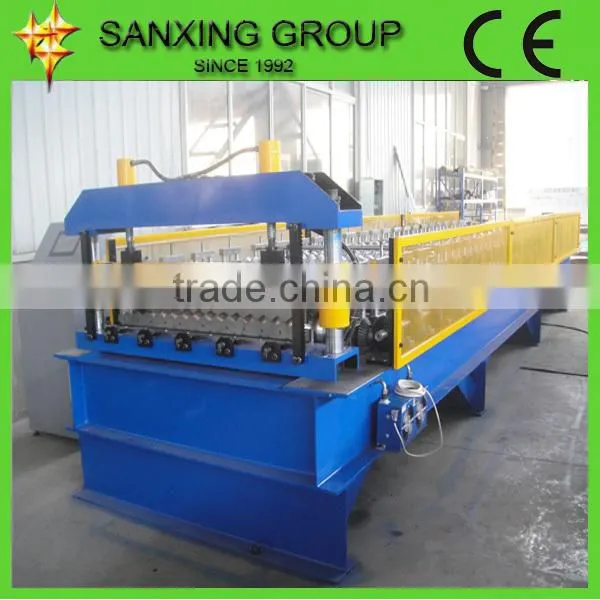

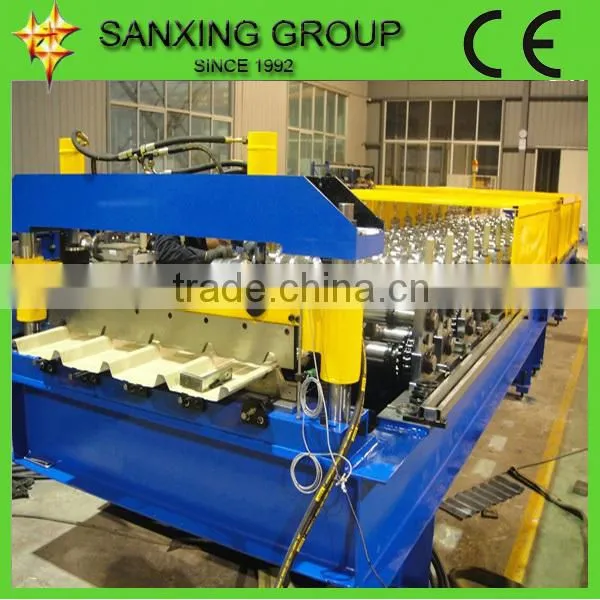

Sanxing aluminum roll forming machine

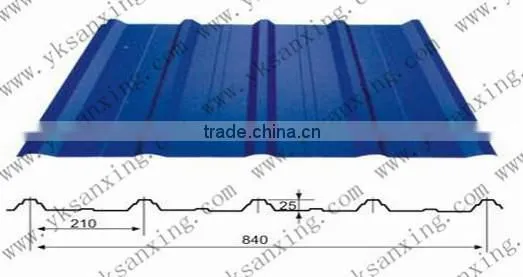

Panel profile:
Working Florwing:

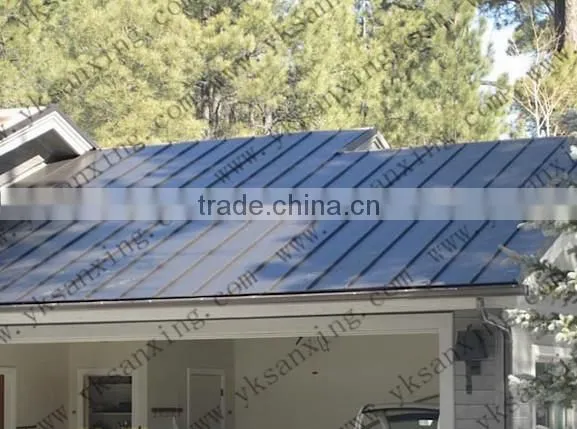

Project:
Accessories:
Machine Components:
| De-coiler | 1 set |
| Forming machine | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Machine Technical data:
No. |
Spc. |
|
1 |
suitable material |
Color Steel plate, galvanized sheet |
2 |
Feeding width |
1000mm |
3 |
Rows of rollers |
11 rows |
4 |
Main power |
3.0kw |
5 |
Hydraulic power |
3.0kw |
6 |
Main frame |
250 H steel |
7 |
Thickness of raw material |
0.3-0.8mm |
8 |
Transportation system |
Chain transportation |
9 |
Thickness of chain |
1.0inches |
10 |
Productivity |
8-10m/min |
11 |
Out diameter of shaft |
70mm (solid shaft) |
12 |
Material of shaft | Material of shaft |
13 |
Roller material | 45# steel polished and coated with chrome HRC55-60° |
14 |
Shear mould |
Gr12 |
15 |
Voltage |
380V 50Hz 3phases |
16 |
Control system |
PLC Frequency Control System with touch screen |
17 |
Machine size |
5200mm*1600*1200mm |
Naked ,By vessel 1*20GP
Our company
Our Certificates
Our Customers
Q: Are You the factory or trade company?
A:We are the factory,found in 1992, we work on alibaba export for 8 years.
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T is first
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 18 month, and support lifelong service.
