Made In China Freeway Guard Rail Equipment
Machine

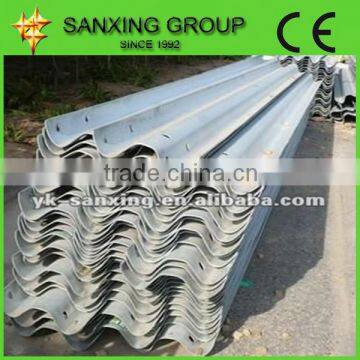

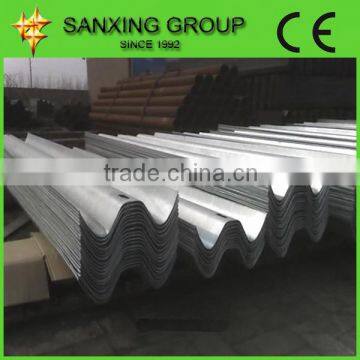

Panel
Application
Processing
Loading—decoiler—leveling loading—punching—forming –cutting –output
Main Technical Specification
1.Rolling materials: 480mm wide, 2.0mm~4.0mm thick,, Q235A galvanized steel sheet
2.Working speed: 10-12 m/min
3.Number of rollers: 17 main rollers (2 transportation) and 7 leveling rollers
4.Materials of rollers: Gcr15 hardened bearing steel, HRC58-62
5.Materials of main shaft: 45# high quality quenched steel
6.Diameter of main shaft: 100mm
7.Main motor power: 30kw
8.Driving mode: cardan joint gear casing drive
9.Leveling motor power:22kw
10.Hydraulic motor power:15kw, 20Mpa
11.Punching and cutting: hydraulic driving, plate punching, cutting after molding
12.Electric control system: The machine is adopted industrial PLC frequency control, cut length error:2mm
13.Dimensions (mm): 14500*1500*1600
14.Materials of molding blade: Cr12
15.Cut-length: 10m approximate
Packing:container
Shipping Terms:FOB Dalian,CIF,CFR
Introduce
Our Company
We are a professional manufacturer of various cold roll forming machines in good quality with a competitive price. The excellent equipment and prefect after-service system are highly praised by the customers home and abroad. All of the products have passed the CE and are sold to many countries as South America, Middle Asia and Europe. There are ten experienced engineers in the work team. With CNC manufacturing machines, we ensure the precision of every part and to be finished in a very short time. Meanwhile, we also provide services of steel structural construction projects. If you have any questions in technical or want to contract a construction of structural steel products, please contact us without any hesitation. We will help you solve all the difficulties and offer you the best solution. We are sincerely looking forward to cooperating with you soon !
Our Certificates
Our Customers
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment term: T/T ,30% deposit in advance,the balance 70% before our shipment.
Delivery time: Within 30 workdays after receiving 30% deposit.
Warrantee period:3 years.During 3 years, all the damaged parts can be changed into new ones only if the buyer sends the damaged ones back, but the express cost is afforded by the buyer(man-made damage is not included).
Training: If the buyer needs us to go to the project site abroad for training, the buyer affords the ticket, visa, hotel and meals, and the salary $150/day/person. The training period has to be within 15 days.
