Help CenterDinrail Type Modular Enclosures With ELCB Main Switch (EMEA)
Related Products
Specifications
Made out of high quality electro-galvanized steel sheet of up to1. 5mm thickness. With Generous neutral & earth terminals.Flush or Surface mounting
body thickness 1.5mm electro-galvanized steel sheet

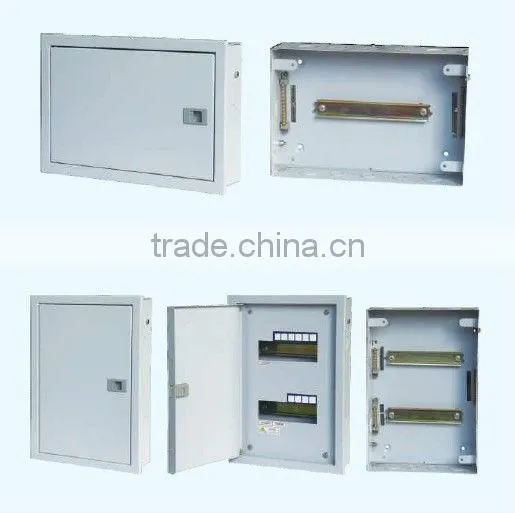

Modular enclosures are standard enclosures suitable for mounting various types of din-rail switchgear components used for safe and reliable distribution and control.
Features:
1. Made out of high quality electro-galvanized steel sheet of up to1. 5mm thickness.
matt-finish polyester powder coated paint
2 knockouts provided on all sides of the enclosure.
3 Adjustable rail mounting assembly made of electro galvanized steel (painting also can be done).
4 Designed for indoor (ip41/nema 1) applications
5 Complies with IEC and NEMA standards
6 Wider enclosure offers ease or wiring and move heat dissipation.
7 The hinges can be fixed in the opposite side to change the door opening direction.
8 Flush and surface mounted designs
9 Knockouts for cable entry are provided on top, bottom of the enclosure.
Options:
1 Available from up to 2 rows.
2 Each row capable of accepting 12 din rail modules or as customers' require.
3 Generous neutral & earth terminals.
Specification:
The modular enclosure is suitable for-
Service voltage: 415/240/120V AC
Rated insulation voltage: 600 V AC
Frequency: 50/60 Hz
Ambient temperature: 50 c
Indoor IP 41 applications
Module:
Used for-1 standardized part of independent unit used in construction.
2 standard unit of measurement.
PS: If you can't find the exact type of your product. Please don't rush to go away. Contact me and your questions will be replied ASAP. Thank you for your time.
OEM, ODM are welcomed.
We glad to accept special design and manufacture according to the customer's requirments.
