Help CenterDinrail Type Modular Enclosures (EMEB)
Related Products
Specifications
suitable for mounting various types of din-rail switchgear components used for safe and reliable distribution and controlFlush or Surface mounting
body thickness 1.5mm electro-galvanized steel sheet
1 row 16 pcs DIN-Rail breaker space
Modular enclosures are standard enclosures suitable for mounting various types of din-rail switchgear components used for safe and reliable distribution and control.
Features:
1. Made out of high quality electro-galvanized steel sheet of up to1. 5mm thickness.
matt-finish polyester powder coated paint
2 knockouts provided on all sides of the enclosure.
3 Adjustable rail mounting assembly made of electro galvanized steel (painting also can be done).
4 Designed for indoor (ip41/nema 1) applications
5 Complies with IEC and NEMA standards
6 Wider enclosure offers ease or wiring and move heat dissipation.
7 The hinges can be fixed in the opposite side to change the door opening direction.

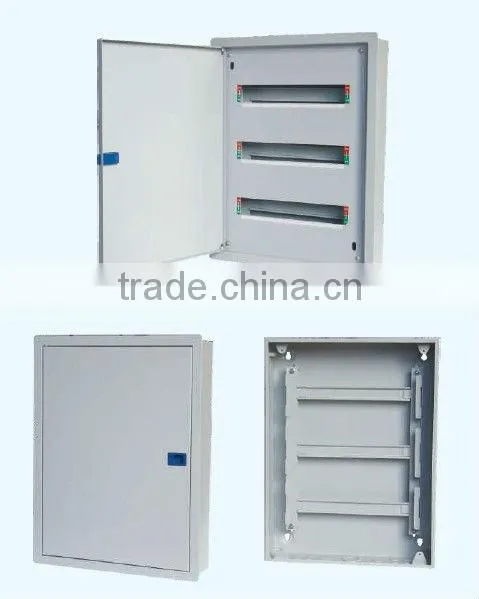

8 Flush and surface mounted designs
9 Knockouts for cable entry are provided on top, bottom of the enclosure.
Options:

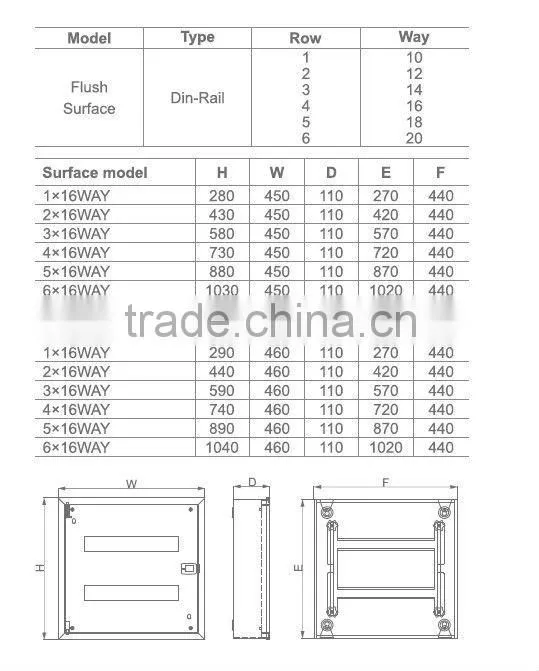

1 Available from 1 row up to 6 rows.
2 Each row capable of accepting 16 din rail modules.
3 Door with cam type key-lock available.
Specification:
The modular enclosure is suitable for-
Service voltage: 415/240/120V AC
Rated insulation voltage: 600 V AC
Frequency: 50/60 Hz
Ambient temperature: 50 c
Indoor IP 41 applications
Module:
Used for-1 standardized part of independent unit used in construction.
2 standard unit of measurement.
PS: If you can't find the exact type of your product. Please don't rush to go away. Contact me and your questions will be replied ASAP. Thank you for your time.
OEM, ODM are welcomed.
We glad to accept special design and manufacture according to the customer's requirments.
