Hot Sale Roof Tile Corrugated Roll Forming Machine

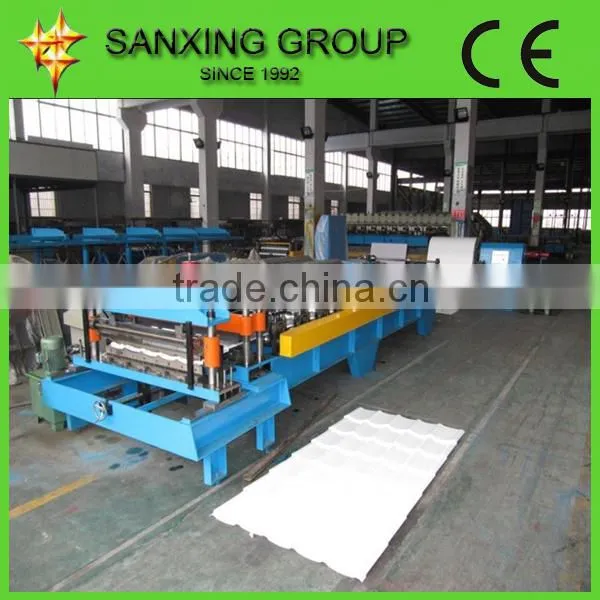

Machine

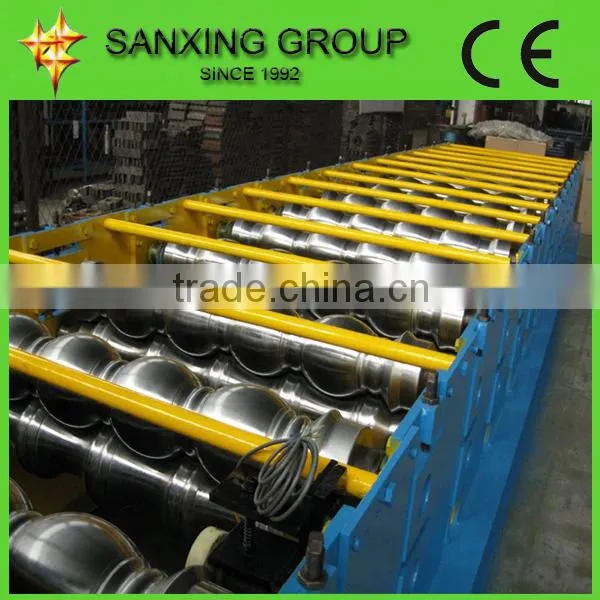

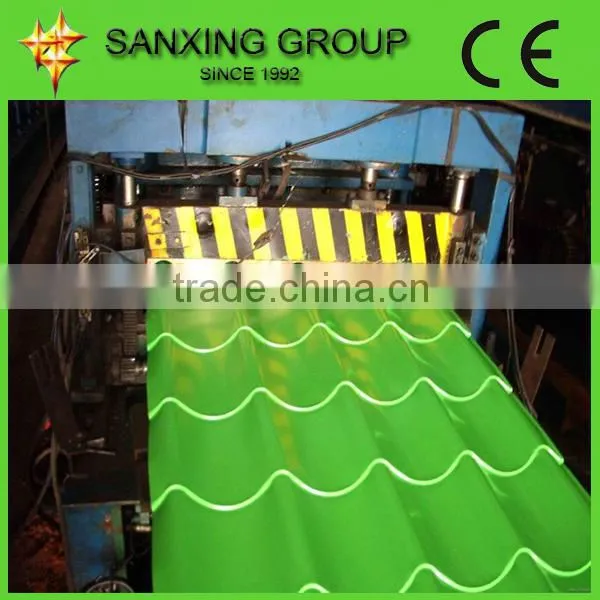

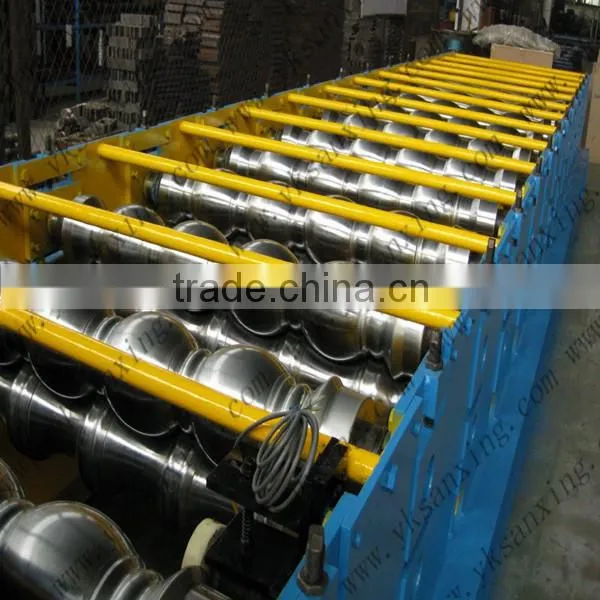

Forming
Cutting

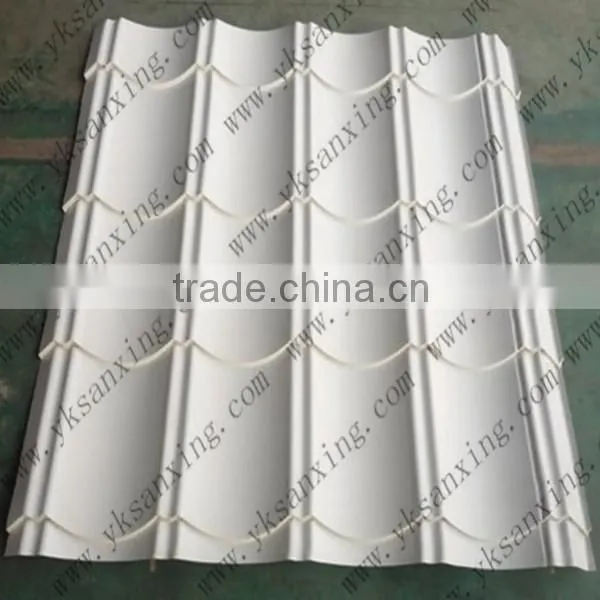

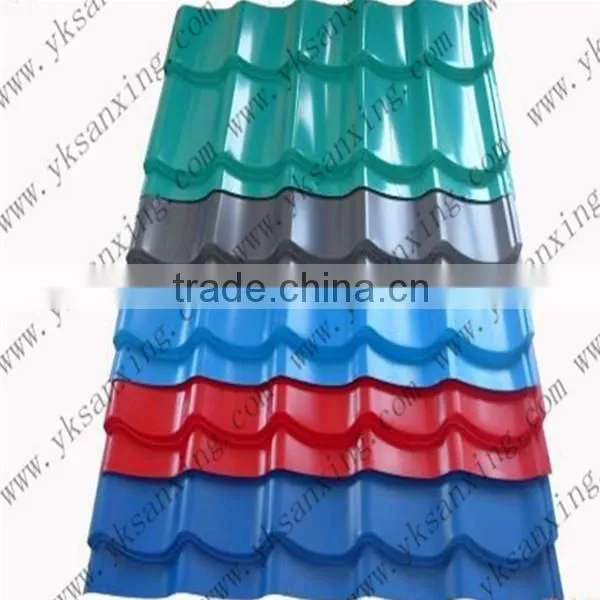

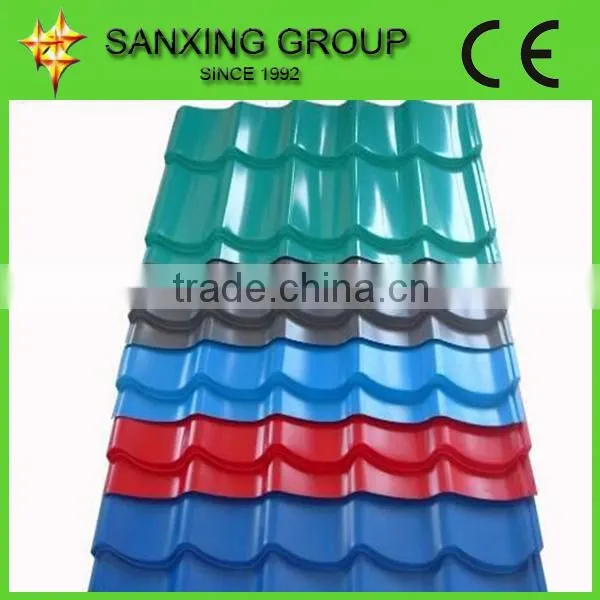

Panel

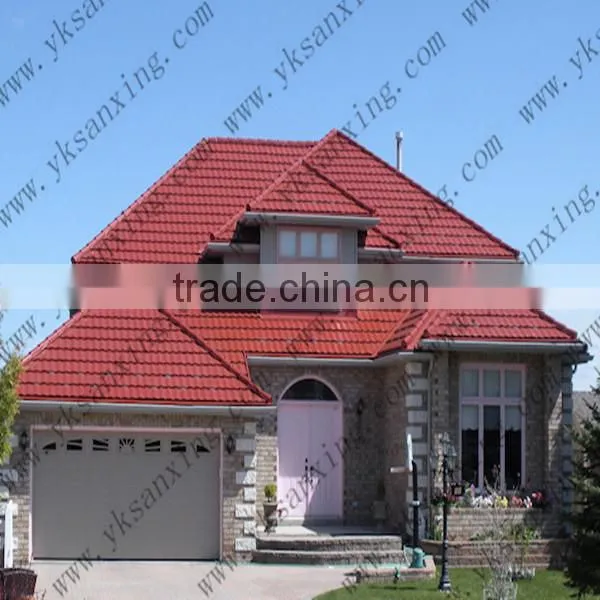

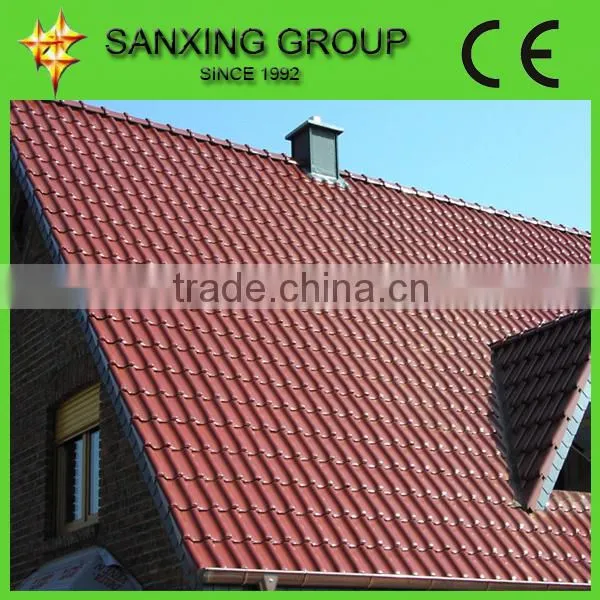

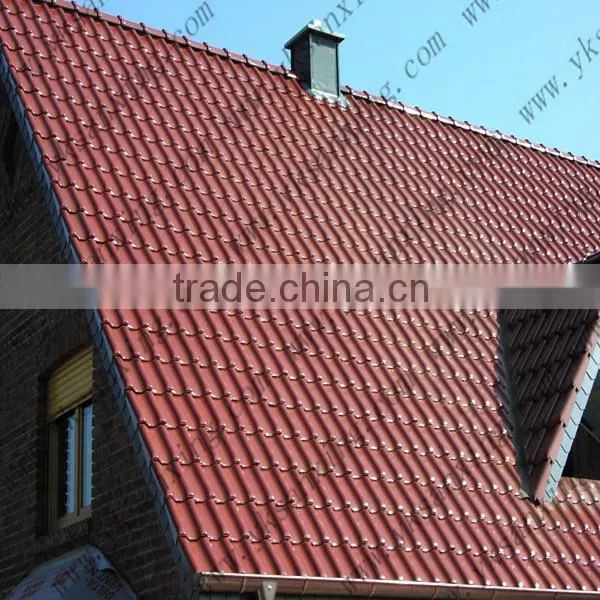

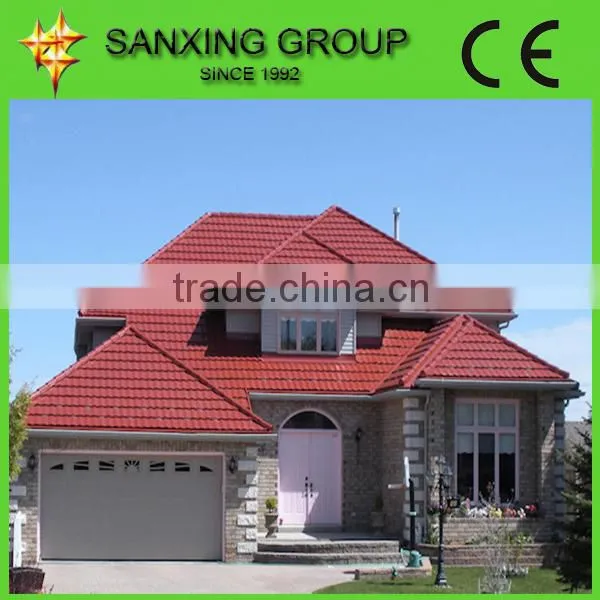

Install
Main Technical Specification
SANXING 836(glazed tiles)
1.Main motor power: 3 KW
2.Hydraulic station power: 3 KW
3.Sprocket:P-25.4
4.Forming station:9
5.Material of roller:45#steel hard chrome plating
6.Length of production line:10m
7.Installation dimension about(L*W*H): 6.5m*1.5m*1.4m
8.Hydraulic oil pump: CB-E 310
9.Diameter of principal axis:70mm
10.Material of roll: Cr12 quenching
11.Thickness:0.3-1mm
12.Total weight: about 4.6T
13.Forming speed:3-6m/min
14.Length of tolerance:+1.5mm

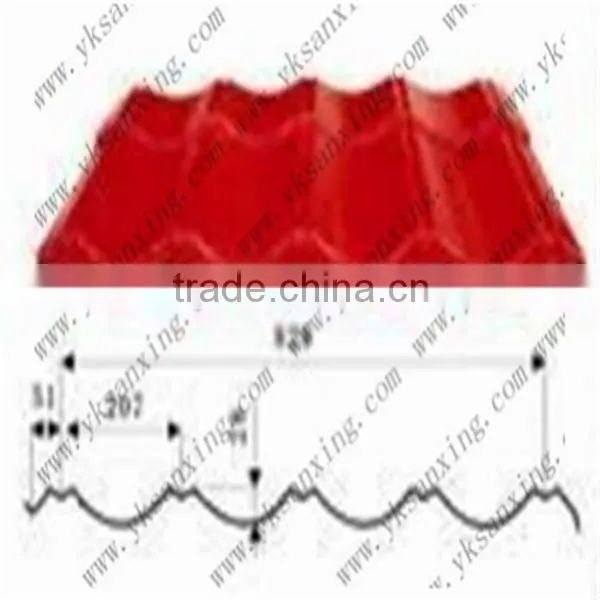

15.Cover width:1043.02
16.Coil width:1250mm
17.Wave height:28mm
18.Wave height:2008.6mm
19.One set of equipment includes: forming machine, hydraulic system, computer controlling system,counter, cutting system, material feeding support
Main types(We have more than one hundred different profiles)
Types |
Width of the coil |
Width of the formed sheet |
The depth of the groove |
Thickness of the coil |
SX-840 |
1000mm |
840mm |
25mm |
0.3-0.6mm |
SX-900 |
1000mm |
900mm |
15mm |
0.3-0.6mm |
SX-930 |
1000mm |
930mm |
14mm |
0.3-0.6mm |
SX-1000 |
1250mm |
1000mm |
35mm |
0.5-0.8mm |

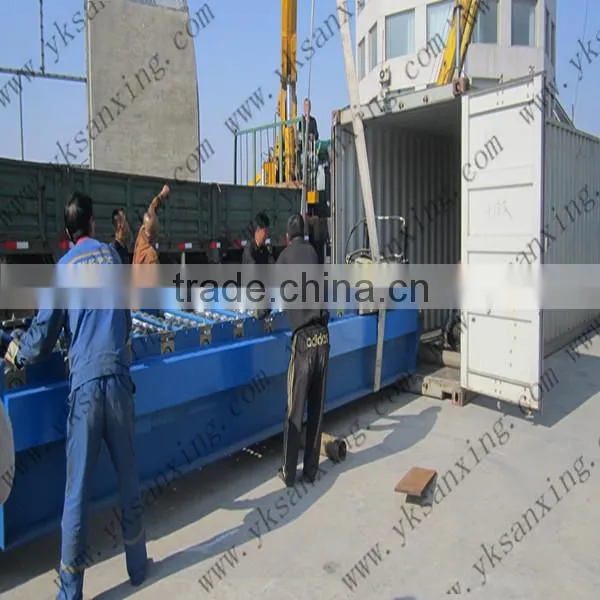

Packing:container
Shipping Terms:FOB Dalian,CIF,CFR
Introduce
Our Company
We are a professional manufacturer of various cold roll forming machines in good quality with a competitive price. The excellent equipment and prefect after-service system are highly praised by the customers home and abroad. All of the products have passed the CE and are sold to many countries as South America, Middle Asia and Europe. There are ten experienced engineers in the work team. With CNC manufacturing machines, we ensure the precision of every part and to be finished in a very short time. Meanwhile, we also provide services of steel structural construction projects. If you have any questions in technical or want to contract a construction of structural steel products, please contact us without any hesitation. We will help you solve all the difficulties and offer you the best solution. We are sincerely looking forward to cooperating with you soon !
Our Certificates
Our Customers
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment term: T/T ,30% deposit in advance,the balance 70% before our shipment.
Delivery time: Within 30 workdays after receiving 30% deposit.
Warrantee period:3 years.During 3 years, all the damaged parts can be changed into new ones only if the buyer sends the damaged ones back, but the express cost is afforded by the buyer(man-made damage is not included).
Training: If the buyer needs us to go to the project site abroad for training, the buyer affords the ticket, visa, hotel and meals, and the salary $150/day/person. The training period has to be within 15 days.
