Specifications
1,High density,2,patented industrial ice platemaking machine
3,refrigerating temperature
4,dry & hard ice
5,ventilation

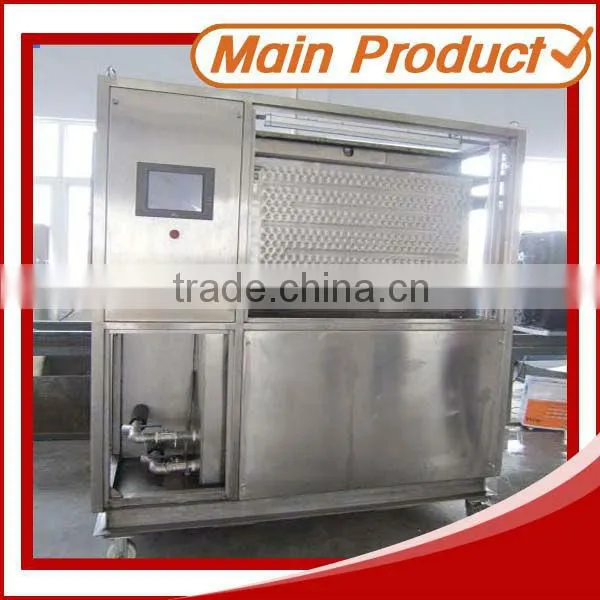

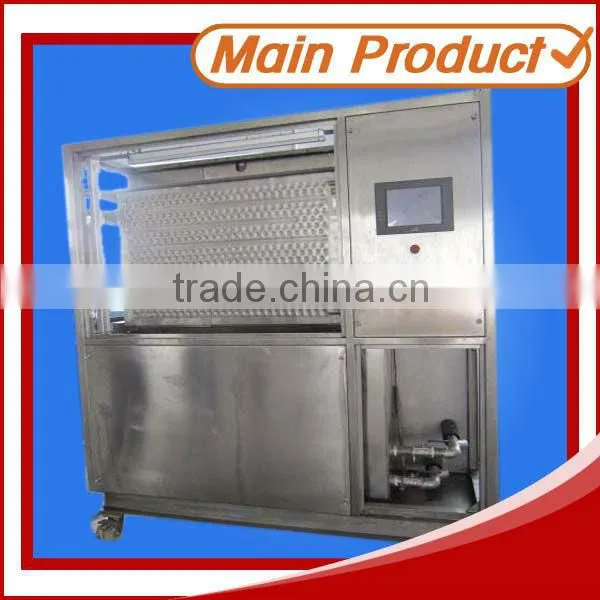

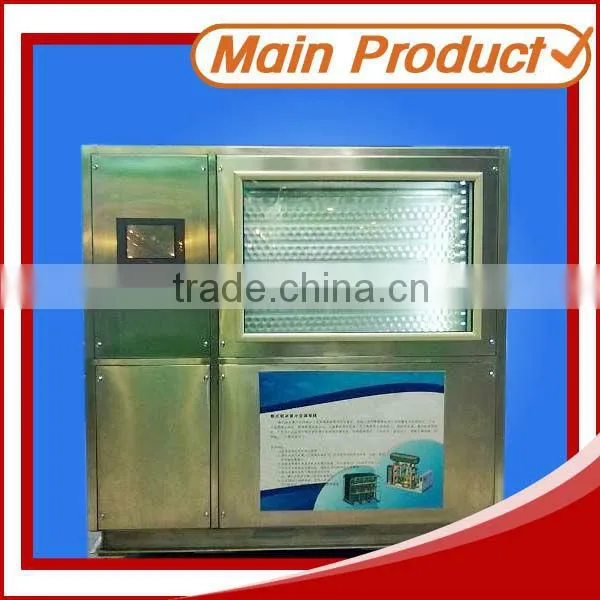

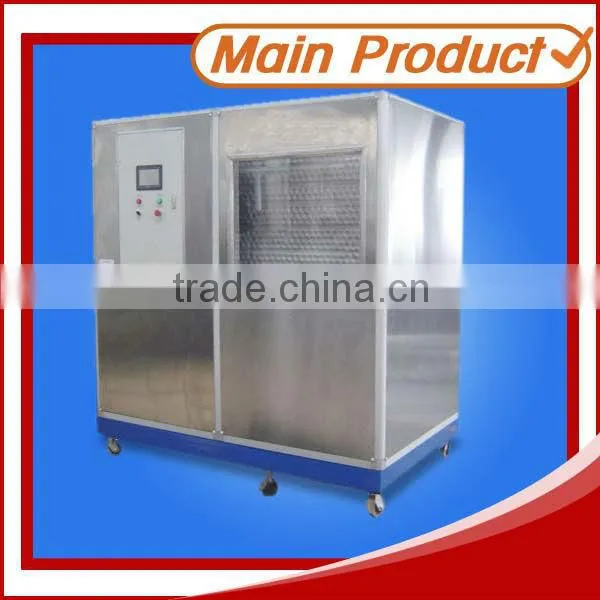

Name: industrial ice plate making machine
Features of plate ice
Thickness 4-30mm, size (20cm-40cm)X(30cm-50cm), transparent, dry and hard ice block with
irregular shape.High density, small surface area and good cool storage effect.Even cooling effect,
good ventilation performance, and constant refrigerating temperature, suitable for refrigeration
of aquatic products.
Model |
JJZNBB10ZDS/FA |
JJZNBB15ZDS/FA |
JJZNBB20ZDS/FA |
JJZNBB25ZDS/FA |
|
|
Ice production capacity (kg/24hour) |
10000 |
15000 |
20000 |
25000 |
|
Refrigerating capacity(KW) |
59 |
88.5 |
118 |
147.5 |
|
Electric system |
380V-50Hz-3P |
||||
Input power (KW) |
28.3 |
37 |
51 |
62 |
|
|
Diameter of water supply pipe |
3/4’ |
3/4’ |
1’’ |
1’’ |
|
Net Weight (kg) |
4000 |
4500 |
5200 |
6300 |
|
Dimension of unit |
L (mm) |
3500 |
4100 |
4700 |
5300 |
W (mm) |
2300 |
2300 |
2300 |
2300 |
|
H (mm) |
2500 |
2500 |
2500 |
2500 |
|
Features of products

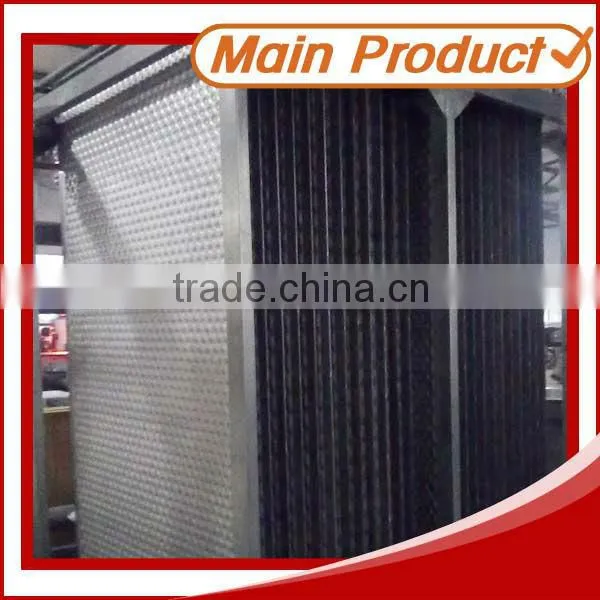

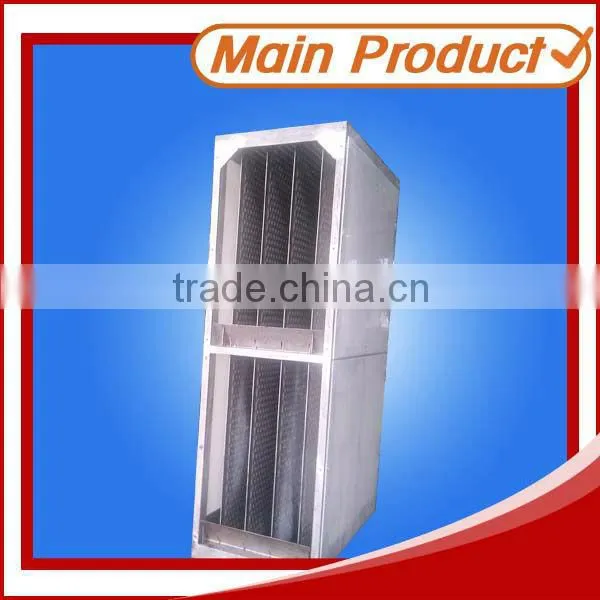

Modular design, small space requirement, and easy installation and maintenance. The honey
comb flow channel is used in the design of evaporator fins, with turbulent flow of refrigerant in fins.
Featuring good heat exchanging effect, and with firmness and good endurance. Evaporator fins are
made of food-safe S/S, featuring hygiene and cleanliness, and harmlessness to human, fully in

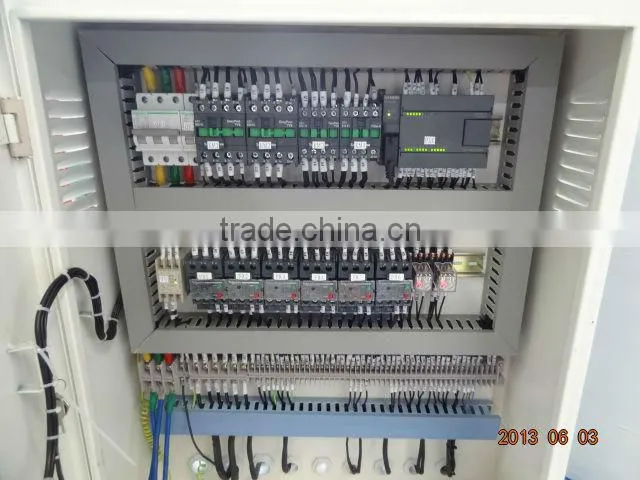

complianxe with relevant standard on food security. World famous brand PLC is used for automatic
control. Only one button press for start-up and shutdown, featuring reliable and stable control, and
low faults. The utilization of condensation heat is made in process to quickly transfer hot gas for ice
failing. It can shorten ice-failing time, reduce energy loss and efficiently save energy. Suitable for ice
storage engineering, edible ice, refrigeration of aquatic products, chemical products, artificial snow
on ski field, cooling coal mining well, etc.
Notes
1. Standard voltage; 380V-3P-50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as
required.
2. Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporation temperature;
-15°C.(seawater plate ice machine unit evaporator temperature; -15°C)
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This machine is applicable to fresh water, refrigerans; R22/R404a. If choose R717 or only
evaporation unit, please inform us in advance
5. Thickness of ice; 5mm-15mm.
6. The input power is given at standard voltage and working conditions and therefore is only for
reference.
