Specifications
Plate Ice Machine1. dry, hard ice block
2. good cool storage effect
3. clean ice for food
4. small surface

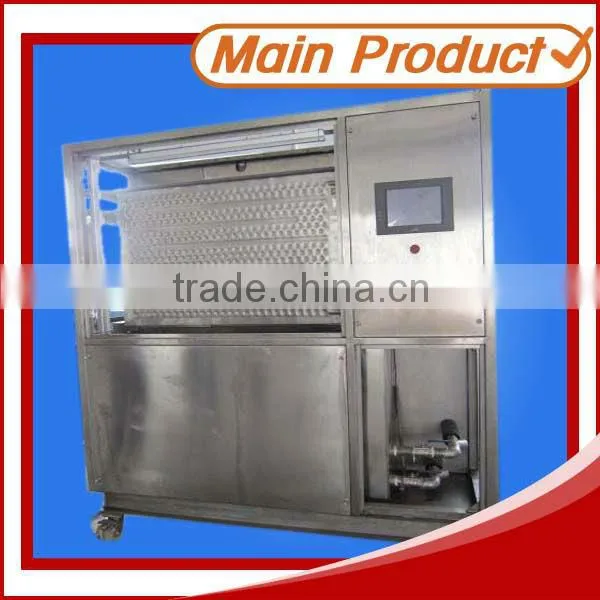

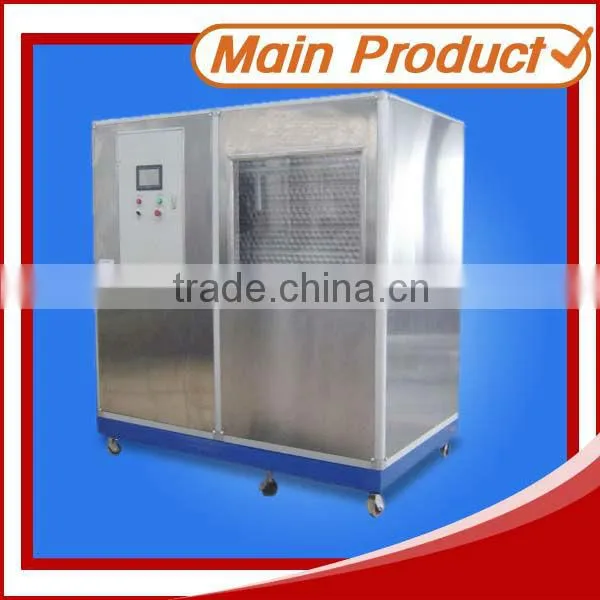

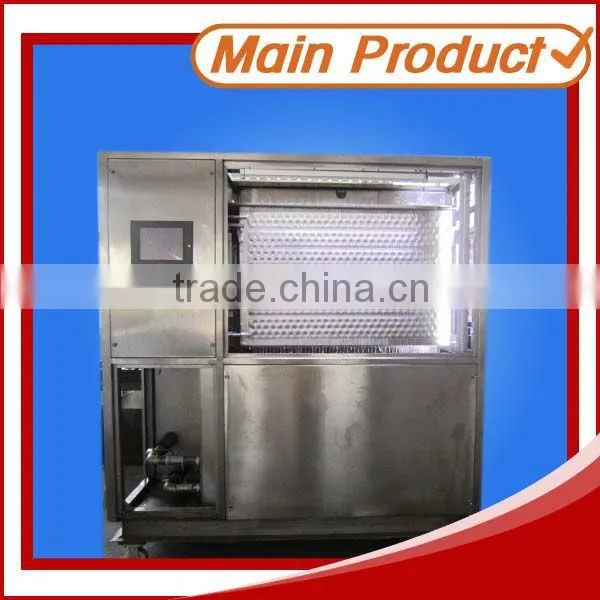

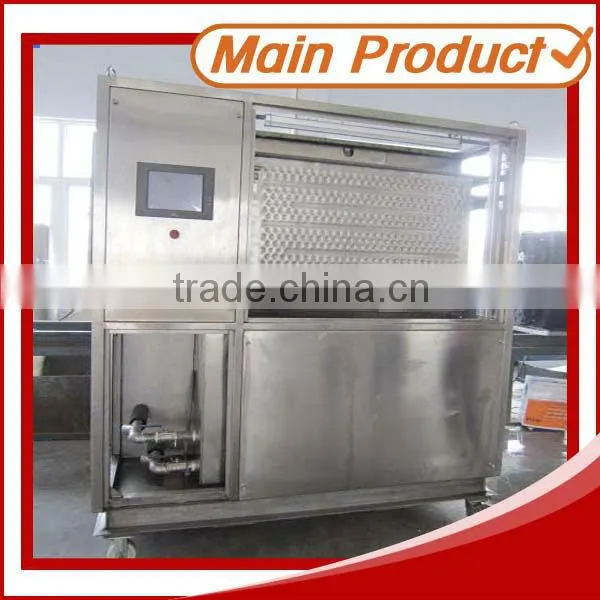

Name: New Plate Ice Machine With Refrigeration Unit JJHYF20
General Information:
IDEAL Fast Producing Ice Plate Ice Machine combined partial freezing preservation technology, it widely applied to supermarket fresh-keeping, fisheries production, aquatic products processing, fruits and vegetables primary processing and fresh-keeping, meat product processing, medical, chemical and many other fields. Our ice plate machine realized the micro-computer centralized control, so easy to operate.
The shape of the ice is plate ice, the evaporator have the two technologies:
Flat liquid film heating exchange technology and double-sided formed ice technology, and have many S-Type heating pipes which design according to the hot-runner and adopt the hot gas ice shedding technology, so the machine not have any wear and tear.
The making ice system is the multiple system that making ice dependent and have the dropping ice function, shorten the ice-making period, the full equipment have good anti-corrosive function, anti-shock and resist pressure performance. It realized that produced one ton ice just consumed about 60 KW power,
it has the incomparable advantage of the flake ice machine and others ice machine
Ice Plate Machine Performance and Advantage:
1. Peculiarity: Industry leading evaporator.
2. Outstanding energy-saving: the efficiency of energy-saving can reach beyond 30%, it’s a new generation saving energy product.
3. Absolute quality advantage: The material of the evaporator is stainless steel 304 (SUS 304), the machine have no any wear and tear, intelligently system.
4. Easy to operate: PLC programmable monitor, no need manpower.
Product Model and Specification:
Model |
Ice Making Capacity |
Compressor Power |
Circulating Water Pump Power |
Cooling Water Pump Capacity |
Cooling Fan Capacity |
Machine Dimention |
Weight of Machine |
No. |
Ton/24h |
KW |
KW |
KW |
KW |
WXHXL(mm) |
KG |
JJHYF10 |
1.0 |
3.69 |
0.37 |
1.5 |
0.37 |
1900x1370x1660 |
860 |
JJHYF20 |
2.0 |
7.11 |
0.55 |
1.5 |
0.55 |
2400x1600x1700 |
1200 |
JJHYF30 |
3.0 |
9.68 |
0.55 |
2.2 |
0.75 |
2400x1600x1800 |
1350 |
JJHYF50 |
5.0 |
17.47 |
0.55 |
2.2 |
1.5 |
2500x1860x150 |
1500 |
JJHYF100 |
10.0 |
26.6 |
5.5 |
4 |
1.5 |
2500x2200x2150 |
2500 |
JJHYF150 |
15.0 |
48.3 |
7.5 |
5.5 |
2.2 |
4000x1800x2200 |
3800 |
JJHYF200 |
20.0 |
63 |
7.5 |
7.5 |
3.75 |
4000x2040x2200 |
4650 |
1. Advantage: Modular design, small space requirement, and easy installation and maintenance.

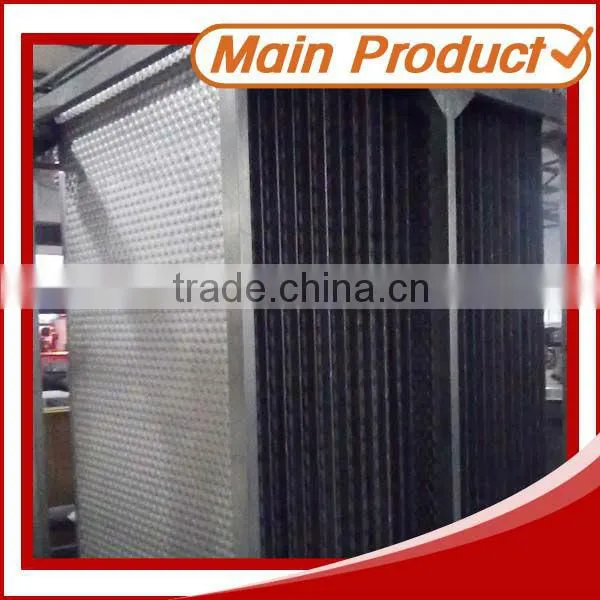

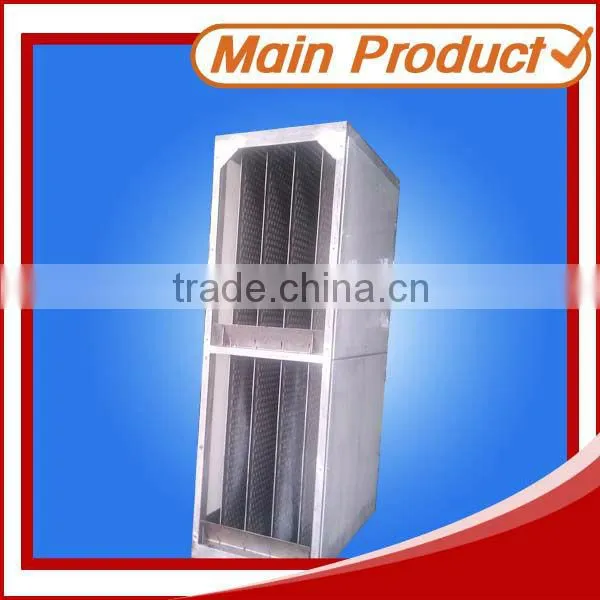

The honey comb flow channel is used in the design of evaporator fins, with turbulent flow of refrigerant in fins.
Featuring good heat exchanging effect, and with firmness and good endurance.
The utilization of condensation heat is made in process to quickly transfer hot gas for ice failing.
It can shorten ice-failing time, reduce energy loss and efficiently save energy.
2. Materials: Evaporator fins are made of foodsafe S/S, featuring hygiene and cleanliness, and harmlessness to human,
fully in compliance with relevant standard on food security.
3. Control system: World famous brand PLC is used for automatic control. Only one button press for start-up and shutdown, featuring reliable and stable control, and low faults.
4. Application: Suitable for ice storage engineering, edible ice, refrigeration of aquatic products,
chemical products, artificial snow on ski field, cooling coal mining well, etc.

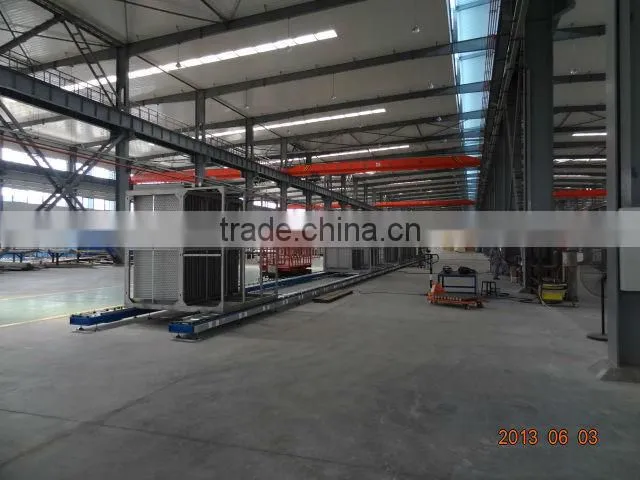

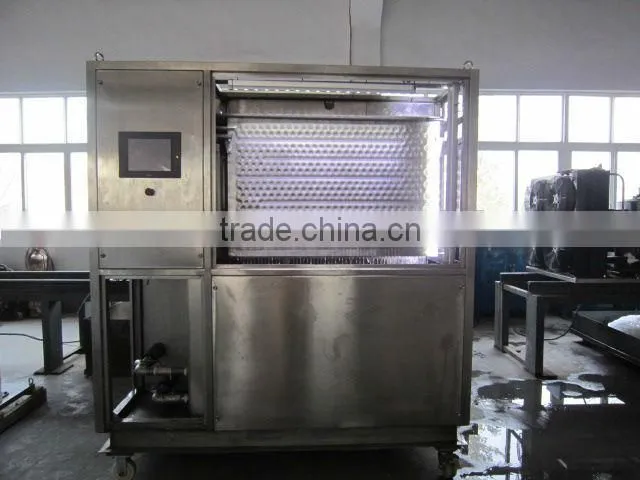

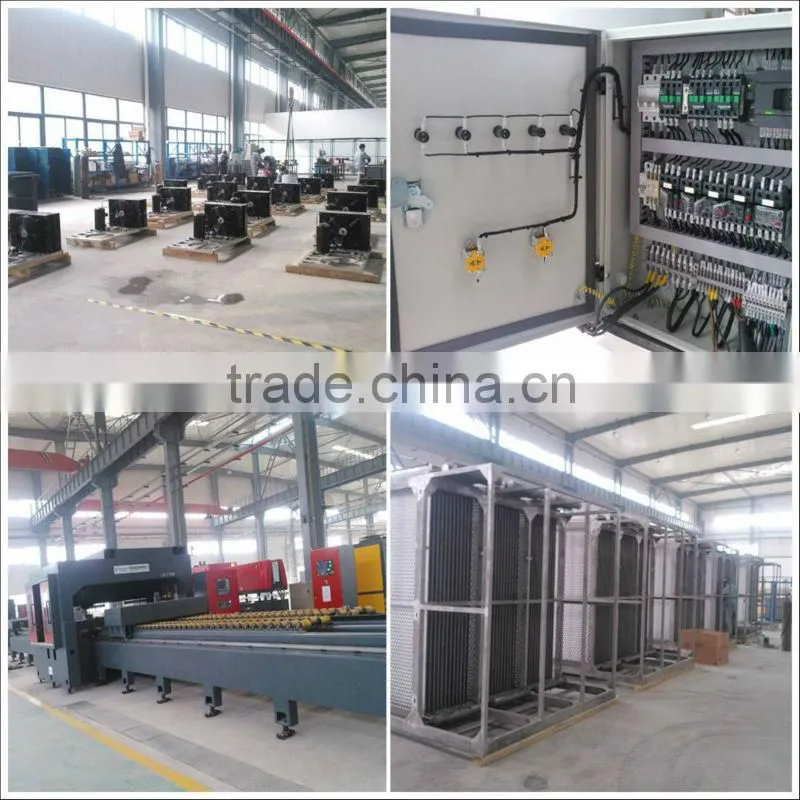

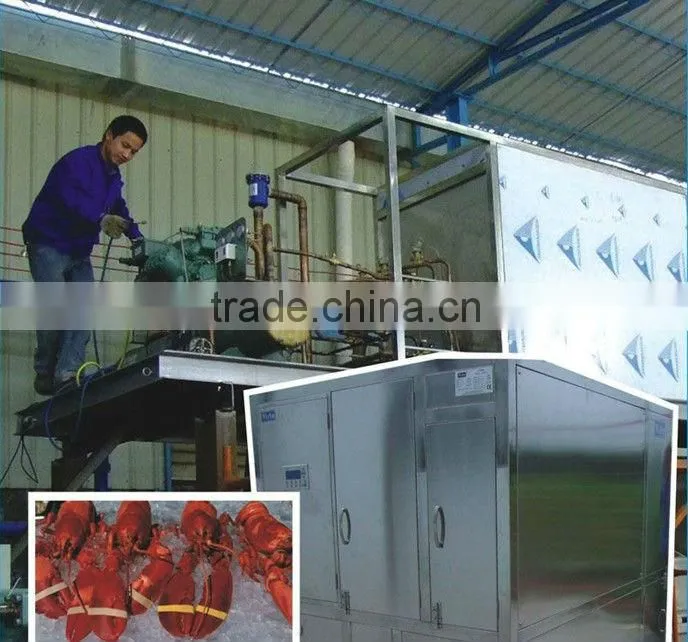

Testing in factory before deliver to clients:
