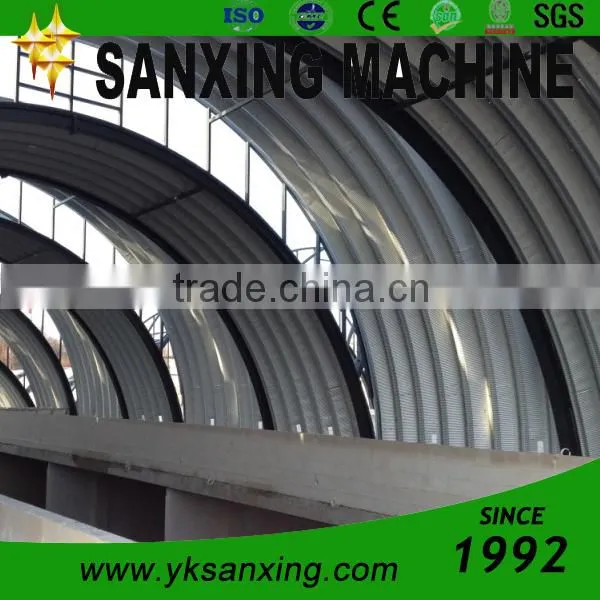

STEEL ROOF ROLL FORMING MACHINE buildings are continuous arched steel panel buildings that are fabricated by means of a trailer mounted roll forming system that can be transported to the construction work site. The individual fabricated panels are seamed together by means of an electrically driven hand operated seaming machine that connects the panels together. These sectional bays are then raised and placed onto the foundation and joined to adjacent building sections and seamed together. Buildings as small as 8 mete1rs wide and as large as 42 meters wide can be designed on site and constructed.

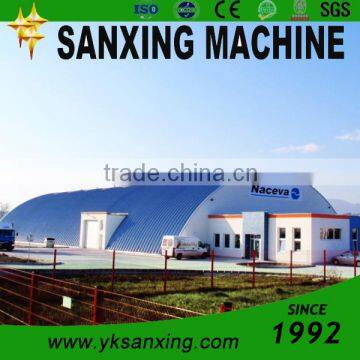

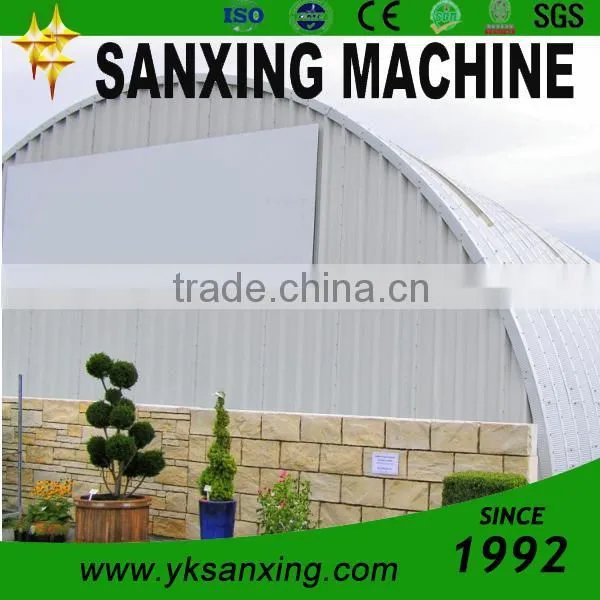

STEEL ROOF ROLL FORMING MACHINE buildings can be used to satisfy almost any building function from housing, warehousing and storage facilities, maintenance buildings, aircraft hangars, agricultural and livestock buildings, commercial facilities, recreational structures or any other use that may be required.
ARCH ROOF/CURVED ROOF MACHINE
MAIN TECHNICAL SPECIFICATION
Size: 9000mm × 2250mm × 2300mm
Total Weight: about 13000KG
Main Motor Power: 18.5KW
forming power is 7.5kw ; bending power is 4.0kw;
cutting power is 4.0kw; conical power is 3.0kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Step of rollers: 13 steps
Operating factor of the panel: 82 %
We provide you all the relevant accessories for free, with which you can begin to do projects immediately.
The machine and its accessories are loaded into a 40 feet high container.
1) Three years guarantee for whole machine except of bearing parts.
2) 24 hours technical support by e-mail.
3) Use-friendly English manual and videos.
Yingkou Sanxing Roll Forming Machine Co.Ltd forcus on steel building machine since 1992. The earliest arch steel forming machine manufacture with engineering qualification in China. So not only we are professional in machine manufacturing but also experienced in projects. Please we are the best selection.
1. Is Sanxing Roll Forming Machine Co.Ltd factory or trader?
Surely, we are the factory with 20000 square meters area, including desinging,producing and marketing.
2. Discount ?
We could offer you the best machine with a good price.
3. Where to see machines?
We highly welcome you visit us anytime. You will see machines and project sample at the facotry.
4. Contact me
Ailsa
Mob. +86 13840720307
Skype:sanxing05
