Specifications
flake Ice maker1. Stainless steel 316 Evaporator tank
2. PLC automatical control system
3. 20 year lifetime
4. CE

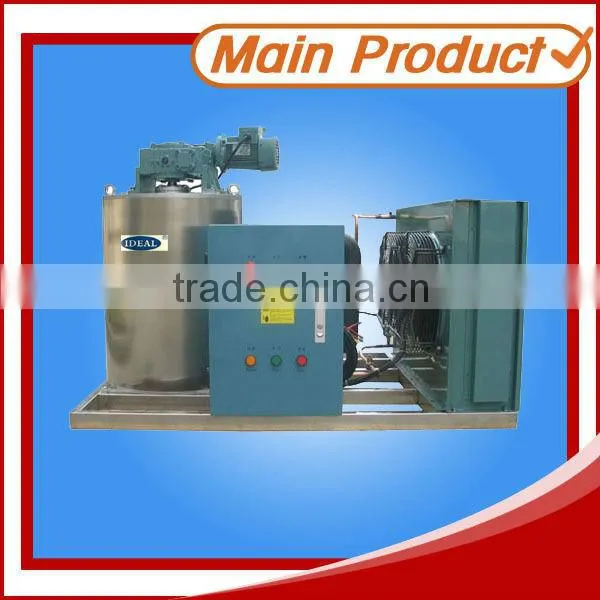

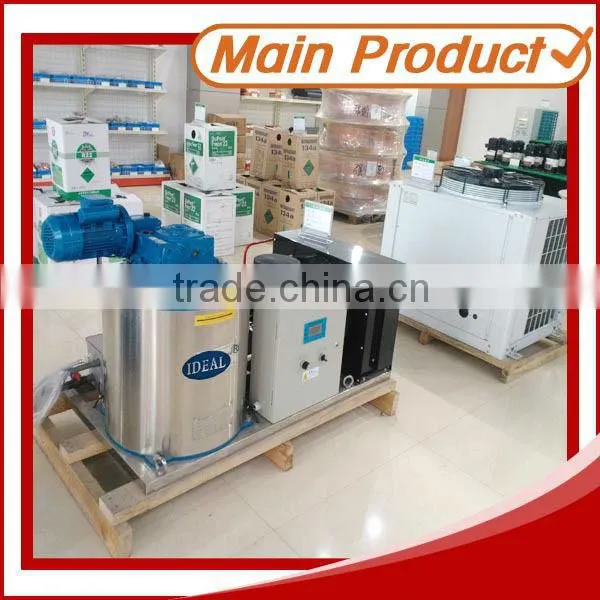

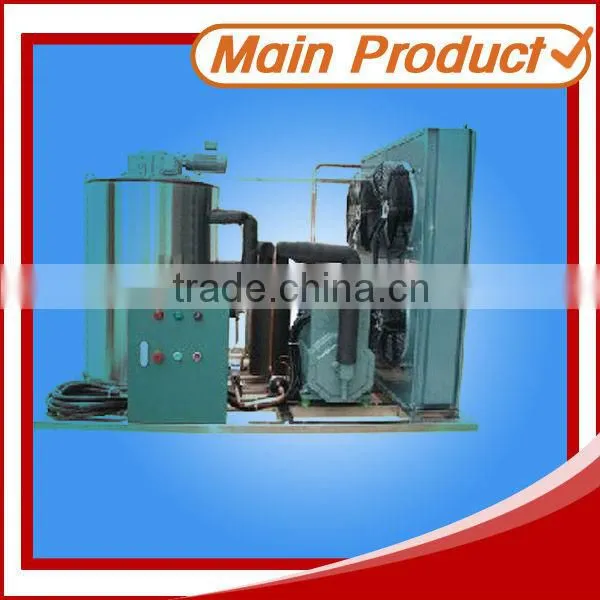

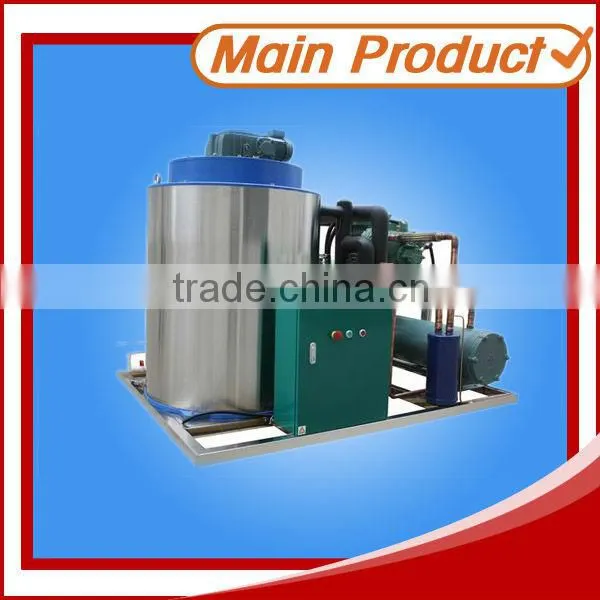

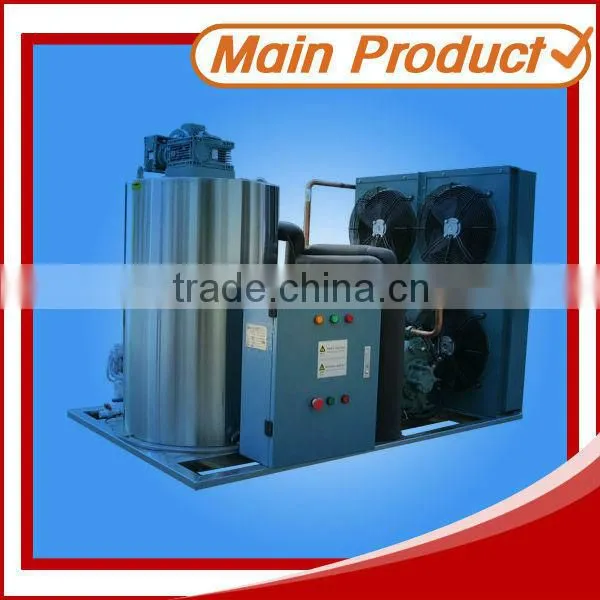

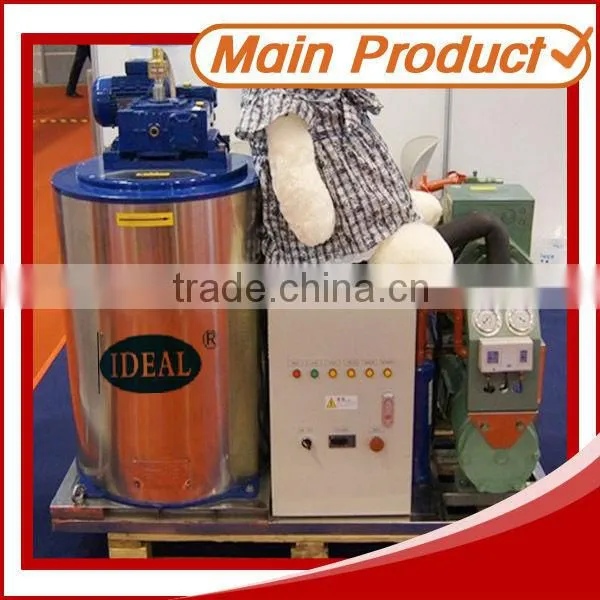

Name: Hot sale China Factory Good Price flake Ice maker (2 ton / 24hours)
General Information:
Commercial flake Ice maker is small-sized products specially designed for clients who need less amount of ice, It has the advantages of small space requirement,
easy maintenance and convenient relocation. The components of the machine are made of stainless steel SUS316, aluminum alloy,
and PE that are in good conformance with the international standard HACCP and FDA. The ice from this machine is very dry ,pure, powderless, uneasy blocking.
This machine can work constantly and efficiently for more than 10000 hour without any fault.
Specification of 0.5ton - 2 ton /24 hours
0.5 ton |
1 ton |
1.5 ton |
||||||
Model |
JJZNPB0.5Z-DF/FA |
JJZNPB0.5Z-DF/FA |
JJZNPB1.0Z-DF/FA |
JJZNPB1.5Z-DF/FA |
||||
|
Ice production capacity (kg/24hour) |
500 |
500
|
1000 |
1500 |
||||
|
Refrigerating capacity (KW) |
3.05 |
3.05 |
6.25 |
8.15 |
||||
Electric system |
220V-50Hz-1P |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
||||
Input power (KW) |
2.27 |
2.27 |
4.21 |
5.42 |
||||
|
Diameter of water supply pipe |
1/2’’ |
1/2’’ |
1/2’’ |
1/2’’ |
||||
Net Weight (kg) |
160 |
160 |
210 |
330 |
||||
|
Dimension of unit |
L (mm) |
1310 |
1310 |
1310 |
1550 |
|||
W1/W2 (mm) |
690/1050 |
690/1050 |
690/1060 |
1000/1400 |
||||
H1/H2 (mm) |
709/1000 |
709/1000 |
882/1000 |
970/1170 |
||||
Specification of 2 ton - 5 ton / 24 hours
2 ton / 24 h |
2.5 ton / 24h |
3 ton / 24 h |
5 ton / 24 h |
|||||||
Model |
JJZNPB2.0Z-DF/FA |
JJZNPB2.5Z-DF/FA |
JJZNPB3.0Z-DF/FA |
JJZNPB5.0Z-DF/FA |
||||||
|
Ice production capacity (kg/24hour) |
2000 |
2500 |
3000 |
5000 |
||||||
|
Refrigerating capacity (KW) |
10.32 |
13.12 |
19.17 |
28.8 |
||||||
Electric system |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
||||||
Input power (KW) |
6.72 |
8.52 |
9.82 |
18.4 |
||||||
|
Diameter of water supply pipe |
1/2’’ |
1/2’’ |
1/2’’ |
1/2’’ |
||||||
Net Weight (kg) |
360 |
390 |
470 |
1100 |
||||||
|
Dimension of unit |
L (mm) |
1550 |
1550 |
1550 |
1850 |
|||||
W1/W2 (mm) |
1000/1400 |
1000/1400 |
1000/1400 |
1370 |
||||||
H1/H2 (mm) |
1020/1170 |
1050/1170 |
1130/1170 |
1373 |
||||||
NOTES
1. Standard voltage; 380V-3P 50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as required.
2. Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporating temperature;-30°C.
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This series products are applicable to seawer, refrigerant; R404a.
5. Thickness of ice; 1.5mm-2.0mm.
6. The input power is given at standard voltage and working conditions and therefore is only for reference.

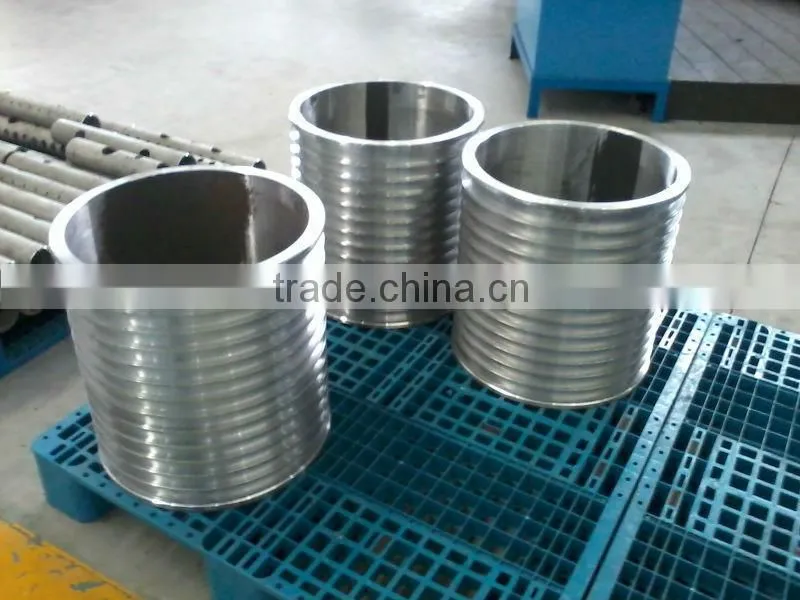

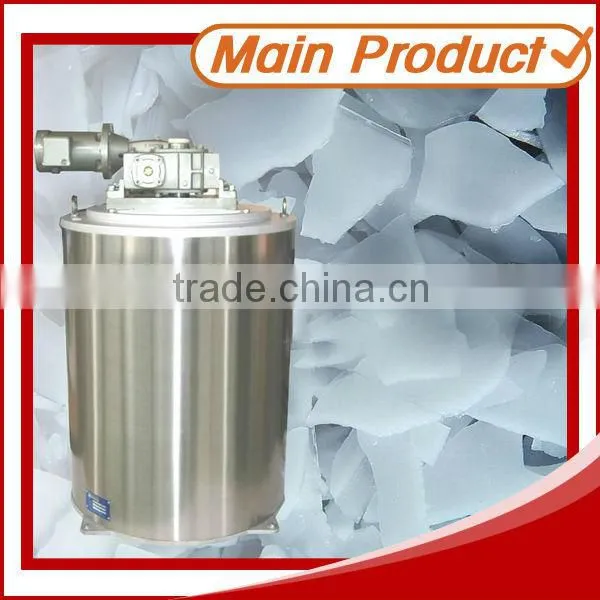

Stainless steel evaporator

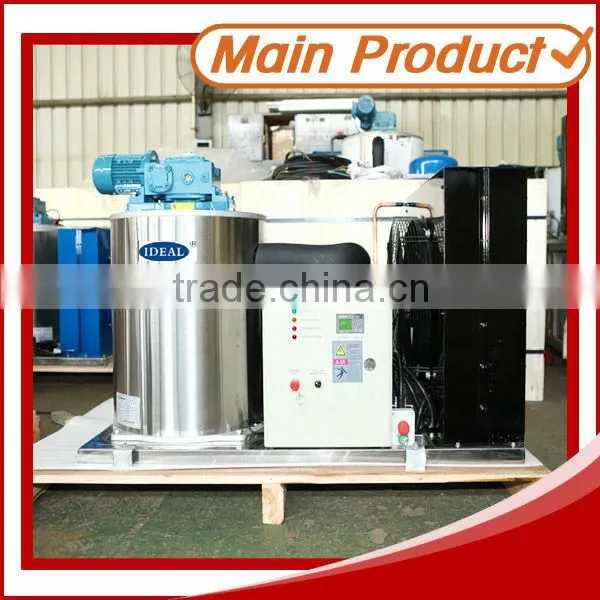

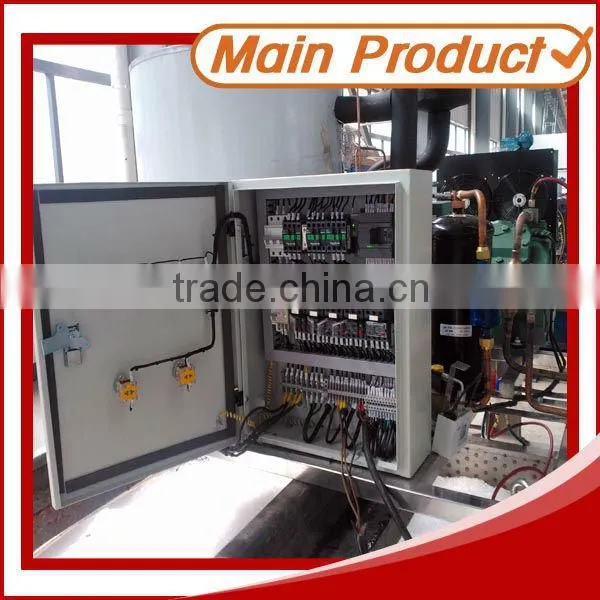

Electric control box
Enough Spare parts
