Welcome To : Jiujiang Ideal Imp. & Exp. Co.,Ltd.
For Ice Machines and Cold Room Products !
Thanks for remembering our brand "ICEFOCUS" ,
Hight Quality Ice Machines and Cold Rooms Spokesman !
Our Brother Company "Hongkong Ideal Refrigeration Equipment Ltd."
ICEFOCUS Ice Machine are trageted for the supermarket, distant fishing, industrial cooling, chemical dyes, edible ice, and other production areas. There are so many varieties models with different specifications for your reference and options.

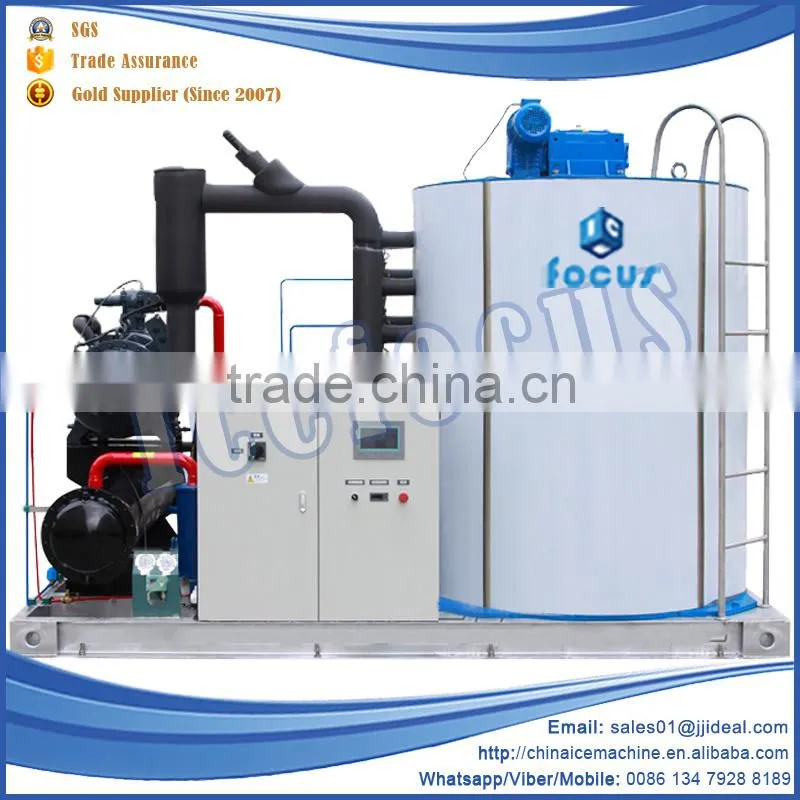

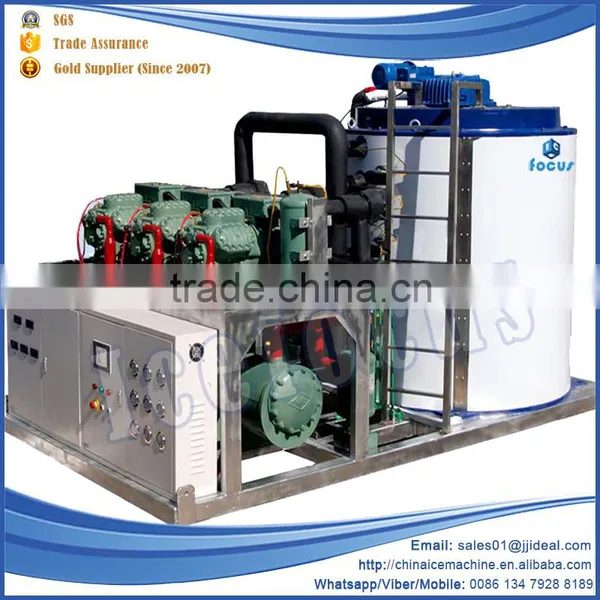

High Efficiency Big Scale Flake Ice Maker (15 ton-60ton/day) Unit
Design, Material, Technology Characteristics:
Industrial Flake Ice Machine is designed to be modularized for easy maintenance. The evaporation tank of this machine is made of stainless steel SUS304 or carbon steel Chromium upon the user's requirements. The ice is very dry, pure, powerless, uneasy blocking. PLC controlling system can automatically control the whole process of producing ice with alarm of lacking water, full ice, high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults. The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption. The patent processing technology allows for highly effecient heating transfer and energy saving.
Application Fields :
The commercial flake ice machine is particularly suitable for refreshing vegetables and foodstuff in supermarket and quick cooling for processing fishery products and butchery.
Details & Sepcifications:
Model |
JJF150WF-A |
JJF200WF-A |
JJF250WF-A |
Ice Production Capacity(kg/24h) |
15000 |
20000 |
25000 |
Refrigerating Capacity(kw) |
106.6 |
113.6 |
154.8 |
Input Power(kw) |
55.47 |
65.57 |
77.25 |
Electric System |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
Diameter Of Water Supply Pipe |
3/4" |
3/4" |
3/4" |
Net Weight |
3200 |
4200 |
5000
|
Dimension Of Unit(L/W/H mm) |
3200*2010*2061 |
3400*2180*2370 |
3800*2540*2452 |
Model |
JJF350WF-A |
JJF400WF-A |
JJF500WF-A |
JJF600WF-A |
Ice Production Capacity(kg/24h) |
35000 |
40000 |
50000 |
60000 |
Refrigerating Capacity(kw) |
219.5 |
253.8 |
329.1 |
393.7 |
Input Power(kw) |
108.35 |
121.85 |
160.15 |
189.35 |
Electric System |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
Diameter Of Water Supply Pipe |
3/4" |
3/4" |
3/4" |
3/4" |
Net Weight |
6500 |
7500 |
10000 |
12000 |
Dimension Of Unit(L/W/H mm) |
4780*3010*2658 |
5000*3010*2818 |
5000*3010*3158 |
5500*3010*3358 |

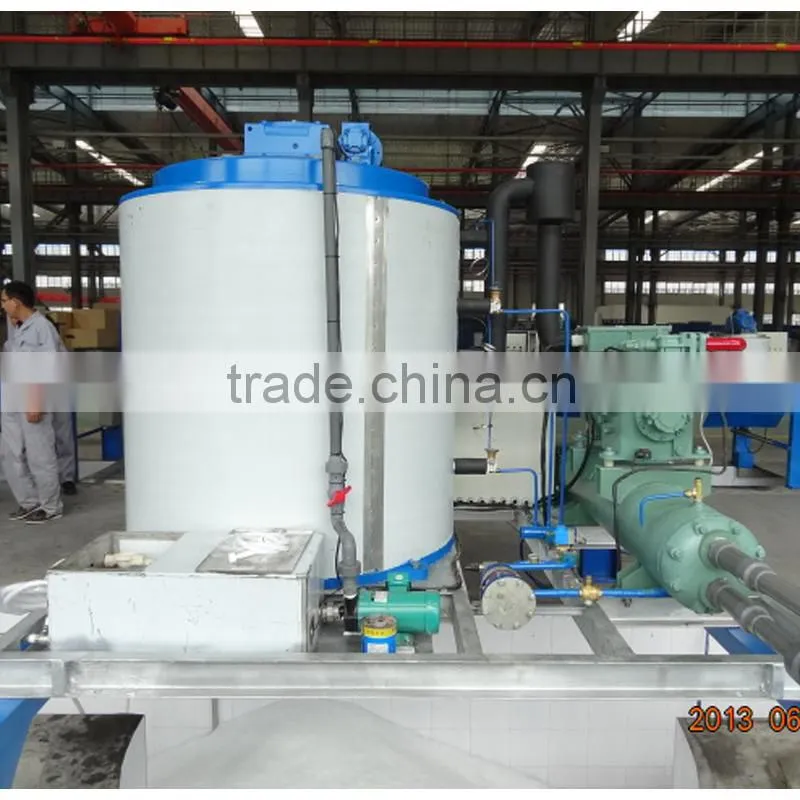

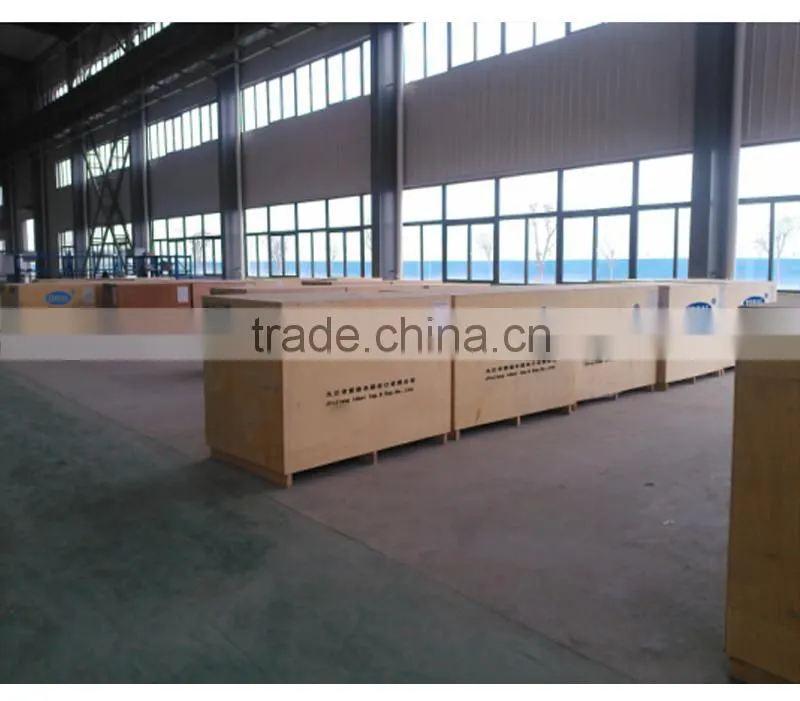

Our Machine and Factory:
Company information
JIUJIANG IDEAL IMP.& EXP. CO., LTD.
ADD:#503,NO.6 Building, Hualong, Laiyin Meijun,
Qianjin East Road,Jiujiang city,Jiangxi, China
Trademanager:cnjjideal8
Web:httphttps://img13.fr-trading.com
Whatsapp/Viber/Mobile:0086-134-7928-8189(24h on line)
More Machines:
Flake Ice Machine |
Cube Ice Machine | Tube Ice Machine | Plate Ice Machine | Block Ice Machine |
