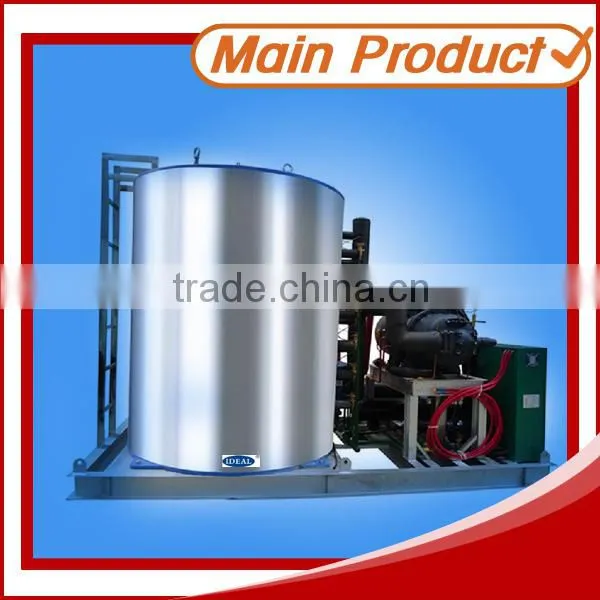

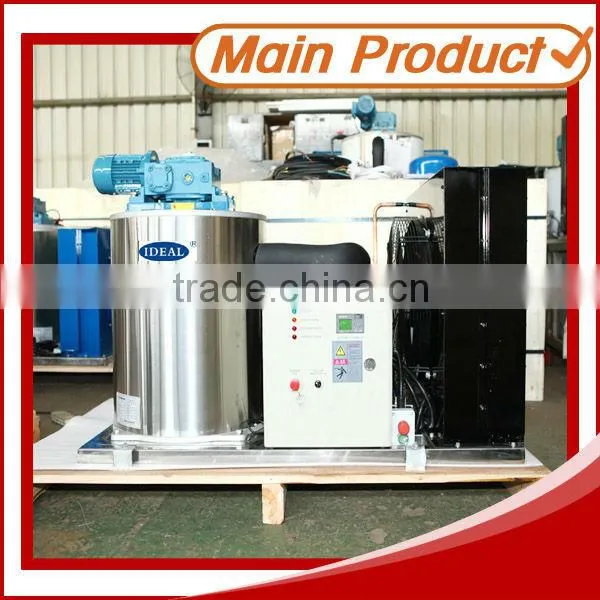

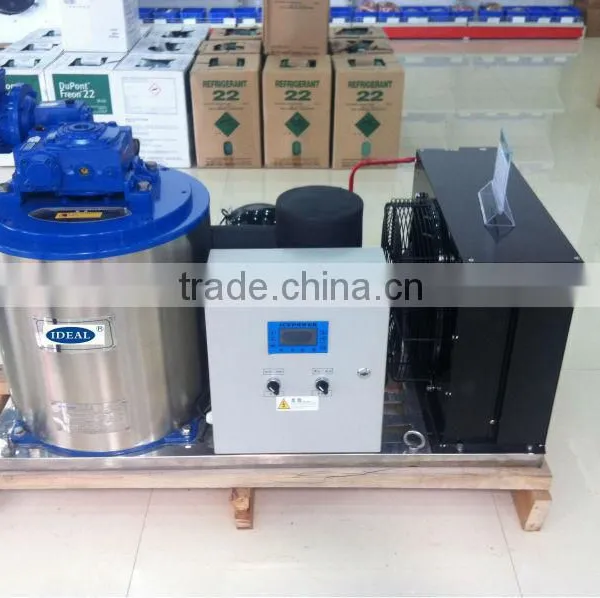

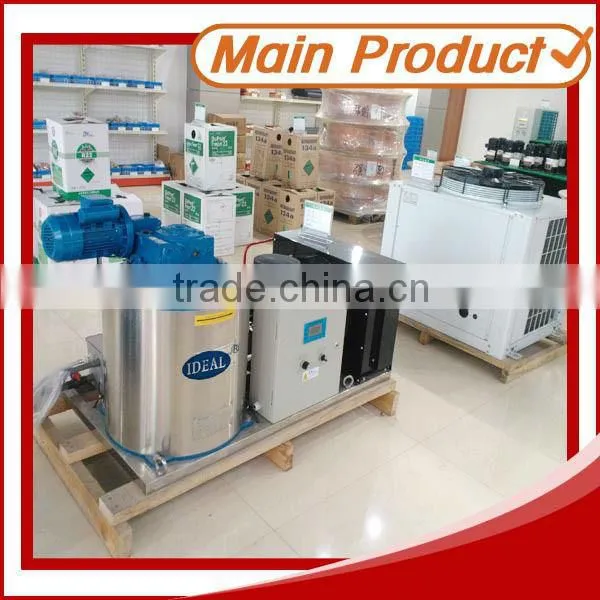

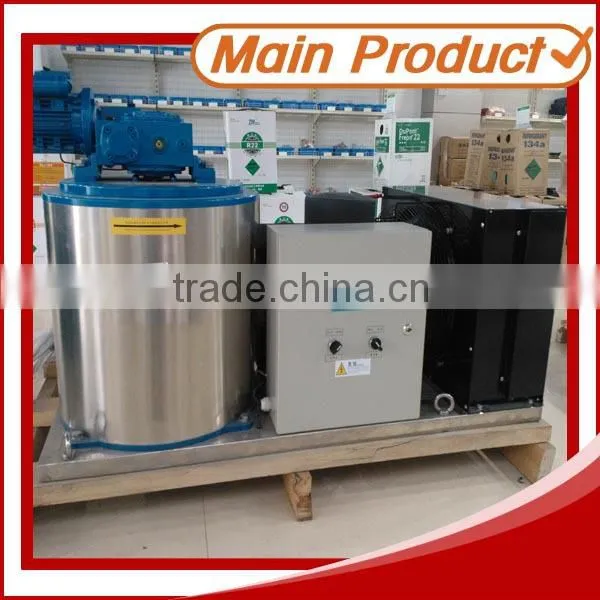

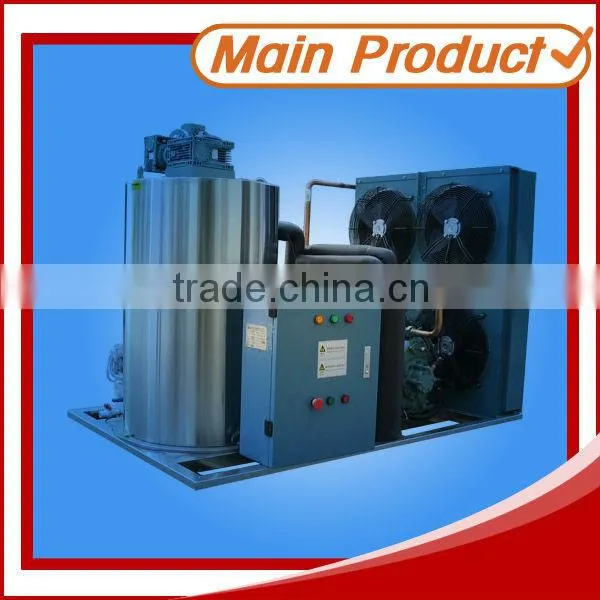

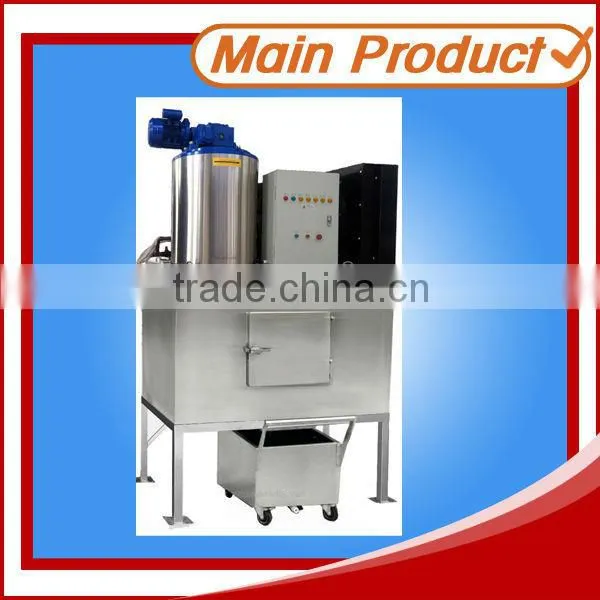

Help Center2Ton/day Commercial Supermarket Ice Maker Machine
Related Products
-
3 Ton/24hour Air-Cooled Flake Ice Machine (JJF30AF-A)US$ 9,000 - 12,000MOQ: 1 Set -
0.5Ton Latest Technology China Commercial Ice Maker Flake Ice Making Machine ManufacturersUS$ 4,000 - 5,500MOQ: 1 Set
-
Low Noise Best Price Marine Ice MachineUS$ 72,000 - 85,000MOQ: 1 Set
-
10 Ton/Day Water-Cooled Flake Ice MachineUS$ 28,000 - 35,000MOQ: 1 Set
-
New 1 Ton/24hour Air Cooled China Suppliers Small Commercial Ice Maker Flake Ice Making MachinesUS$ 5,000 - 6,500MOQ: 1 Set
Specifications
1,pure2,powderless
3,quick cooling
4,conveniert relocation
5,uneasy blocking
ice maker machine
commercial ice maker machines are small-sized products specially designed for clients who need
less amount of ice, It has the advantages of small space requirement, easy mainteance and
convenient relocation.
The components of the machine are made of stainless steel SUS304, aluminum alloy, and PE that are
in good conformance with the international standard HACCP and FDA. The ice from this machine
is very dry ,pure, powderless, uneasy blocking. This machine can work constantly and efficiently for
more than 10000 hours without any faults.
Scope of application
The commrical ice maker machines are particularly suitable for refreshing vegetables and foodstuff
in supermarket and quick cooling for processing fishery products and butchery.
NOTES;
1. Besides standard voltage, we can produce the ice machine with 3 phase ,60Hz, 200/220V. 400V.
440V according to customers’request.
2. Standard ambient temperature; 25°C,water supply temperature; 16°C,evaporating temperature;
-20°C.
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This series products are applicable to fresh water. Refrigerant; R404a (for 0.5t-1t ice machine);
Refrigerant; R22 (for 1.5t-3t ice machine). If you choose R404a. please advise in advace.

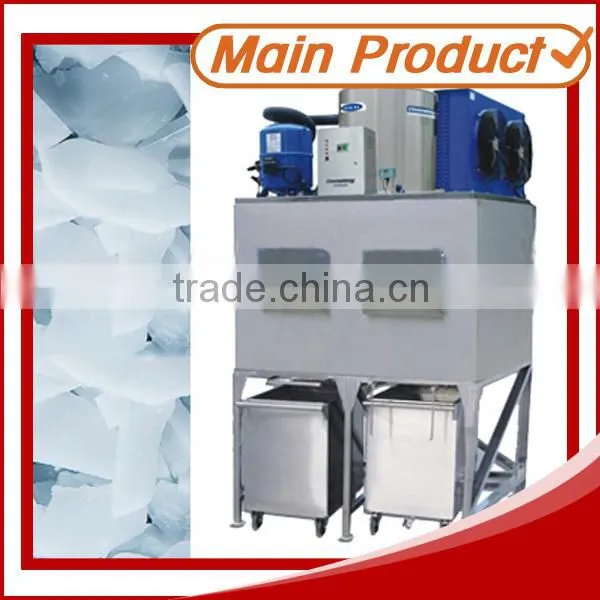

5. The outer size includes ice storage bin size.
6. Thickness of ice; 1.5mm-2.0mm.
7. The input power is given at standard voltage and working conditions and therefore is only for
reference.
Model |
JJZNPB2.0Z-DF/FA |
JJZNPB2.5Z-DF/FA |
JJZNPB3.0Z-DF/FA |
|
|
Ice production capacity (kg/24hour) |
2000 |
2500 |
3000 |
|
|
Refrigerating capacity (KW) |
10.32 |
13.12 |
19.17 |
|
Electric system |
380V-50Hz-3P |
380V-50Hz-3P |
380V-50Hz-3P |
|
Input power (KW) |
6.72 |
8.52 |
9.82 |
|
|
Diameter of water supply pipe |
1/2’’ |
1/2’’ |
1/2’’ |
|
Net Weight (kg) |
360 |
390 |
470 |
|
|
Dimension of unit |
L (mm) |
1650 |
1650 |
1650 |
W (mm) |
1460 |
1460 |
1460 |
|
H (mm) |
2076 |
2095 |
2186 |
|
