Introduction of 914-610 Sanxing K Q Span Arch Sheet Machine
Arch sheet roofing known as Truss less Roofing or Self Supported Roofing system. Known for its customer focus and innovative products, backed by years of Industry knowledge. We are the first manufacture of the machinery in China with 20 years experience. Now, we have series machinery of 3 types, 15 models in total.
| Model ⁄mm | Feeding width |
Effective width
|
Thickness of coil | Max span | Use ratio |
| SX-600-305 | 600 | 305 | 0.8-1.5 | ≤24m | 51% |
| SX-914-610 | 914 | 610 | 0.8-1.5 | ≤36m | 66.7% |
| SX-914-400 | 914 | 400 | 0.8-1.5 | ≤38m | 43.8% |
| SX-914-650 | 914 | 650 | 0.8-1.5 | ≤28m | 71% |
| SX-914-700 | 914 | 700 | 0.8-1.5 | ≤24m | 76% |
| SX-914-750 | 914 | 750 | 0.8-1.5 | ≤15m | 82% |
| SX-1000-700 | 1000 | 700 | 0.8-1.5 | ≤28m | 70% |
| SX-1000-400 | 1000 | 400 | 0.8-1.5 | ≤38m | 40% |
| SX-1000-550 | 1000 | 550 | 0.8-1.5 | ≤38m | 55% |
| SX-1000-750 | 1000 | 750 | 0.8-1.5 | ≤25m | 75% |
| SX-1000-610 | 1000 | 610 | 0.8-1.5 | ≤38m | 61% |
| SX-1000-800 | 1000 | 800 | 0.8-1.5 | ≤14m | 81% |
| SX-1000-630 | 1000 | 630 | 0.8-1.5 | ≤38m | 63% |
| SX-1220-800 | 1220 | 800 | 0.8-1.5 | ≤42m | 65% |
| SX-1250-800 | 1250 | 800 | 0.8-1.5 | ≤42m | 64% |
Advantage of

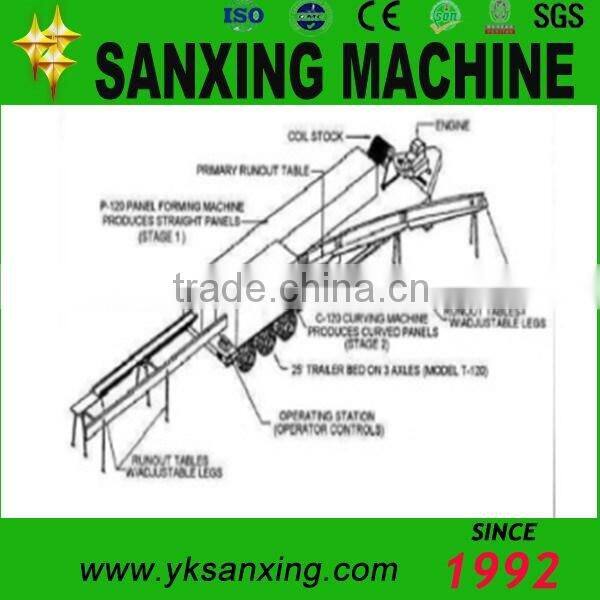

On site Production and installation of Self Supported curved roofing without any structure, enables faster and leak proof roofing systems, thus ensuring utmost flexibility in work and design.
Easy & Quick Installation
As the production is carried out on site, the installation will be faster , take an example, 1500 square meters area in just 12 hours, enabling to finish the project in very quick time.
Durability and Resistance to Corrosion
Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized Steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration. It is of High tensile Steel and comes in spectrum of colors, to enhance the appearance, life and value of the building; specially designed sewing machines eliminate use of fasteners and thus ensure 100% leak proof roofing.
Application

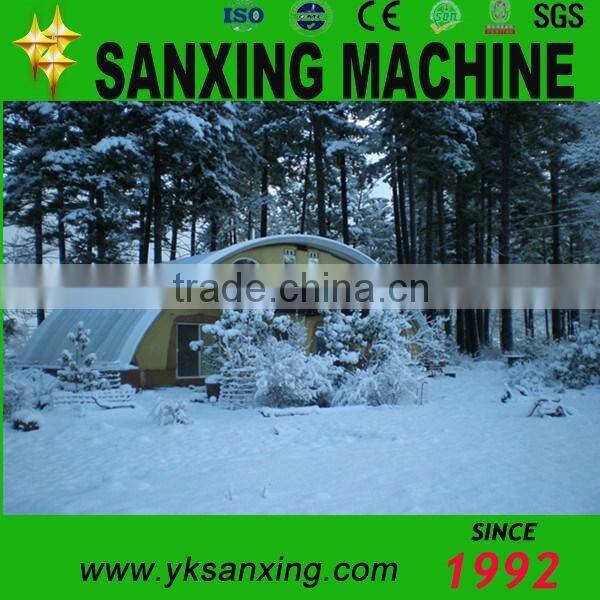

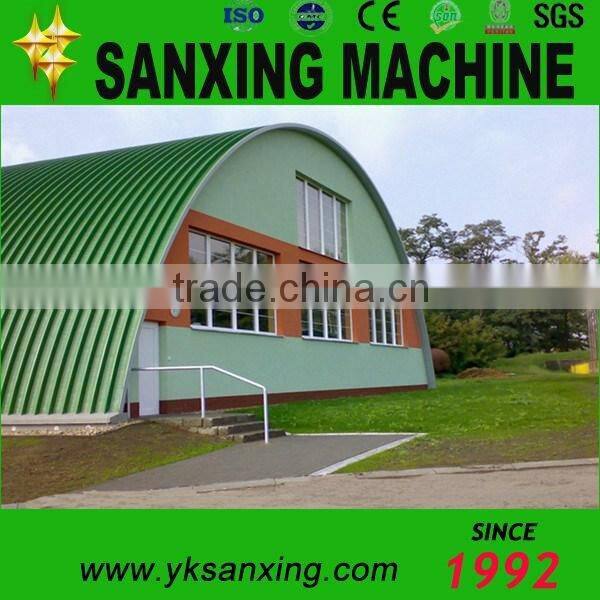

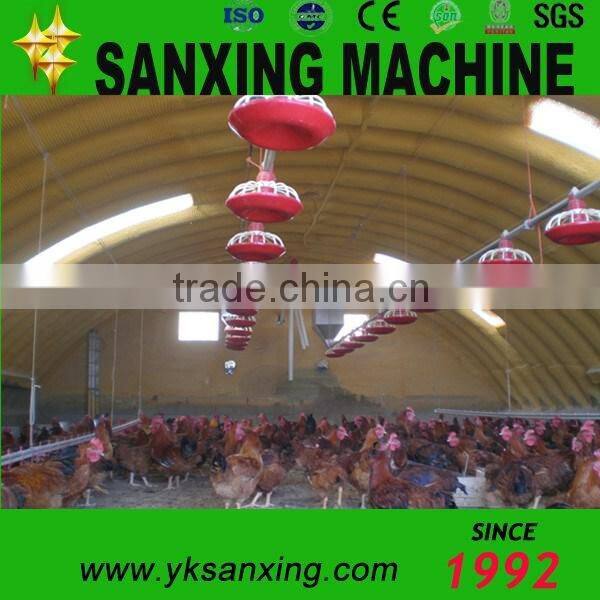

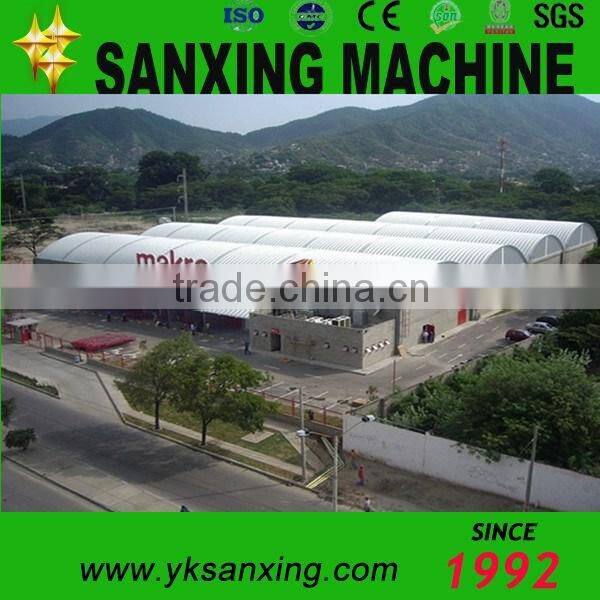

Using this machinery can use in the construction of warehouses, workshops, hangars, barracks, equipment storage, gymnasium, and low cost housing , also in the production of boats, vehicles, and highway guardrails, etc.

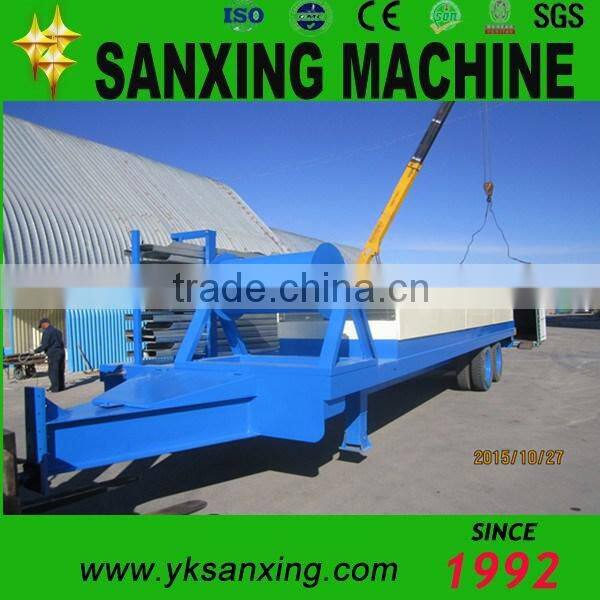

MAIN TECHNICAL SPECIFICATION
Size: 9000mm × 2250mm × 2300mm
Total Weight: about 10000KG
Main Motor Power: 18.5KW
Forming power is 7.5kw ; Bending power is 4.0kw;
Cutting power is 4.0kw; Conical power is 3.0kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Step of rollers: 13 steps
We provide you all the relevant accessories for free, with those you can begin to do projects immediately.
