Specifications
5a 3a mini Solar Streetlight Controllertime and light comtrol
solar lawn lights solar garden lights
fit for24W 36W
ce rohs

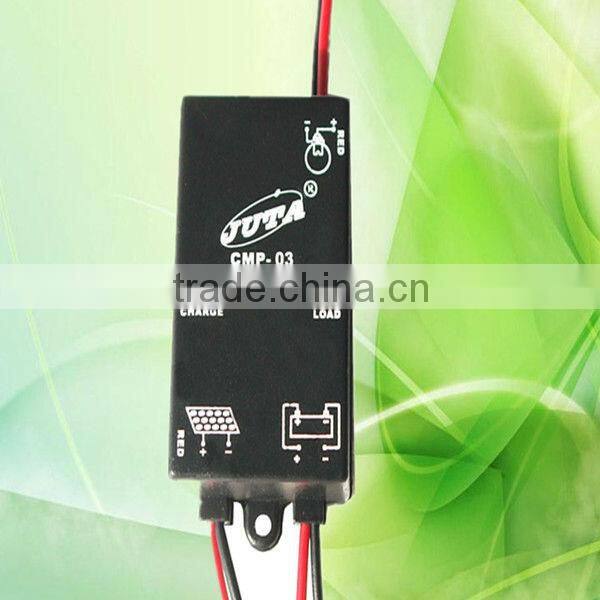

5a 3a 12v mini Solar Streetlight Controller
Introduction:
This solar charge controller designed for solar lawn lights, solar garden lights, Mini solar street light, Mini solar advertising light box and so on. The box of the controller is compact sealed with silicon. They have the function of Temperature Compensation during charging and Sensor Control (optional), fit for 24W 12V or 36W 12V solar panels.
Function:
1. Overcharging and Over discharging protection
2. Prevent the reverse current from the battery to the solar panel at night time.
3.Automatically open the loads after sunset according to the light intensity (Optional)
4. Automatically close the loads:
A battery voltage is in full condition; automatically close the loads after sunrise.
B the voltage of battery is low; automatically close the loads in advance.
Technical Date:
Rated Voltage |
12V |
Stop output Voltage |
10.5V |
Rated Charging Current |
1A or 3A |
Recover output Voltage |
12.0V |
Rated current of the Load |
1A or 3A |
Light Control Mode |
Visibility 20M |
Charging Stopping Voltage |
14.4V |
Working Temperature |
-10- +40 |
Stopping Voltage Temperature Coefficient |
-3mV/cell |
Relative humidity |
90% |
Size(L*W*H) |
55×36×20mm |
Weight: |
33g |
solar lawn lights solar garden lights, Mini solar street light, Mini solar advertising light box fit for 24W 12V or 36W 12V solar panels.
Light and time controller solar streetlight controller
