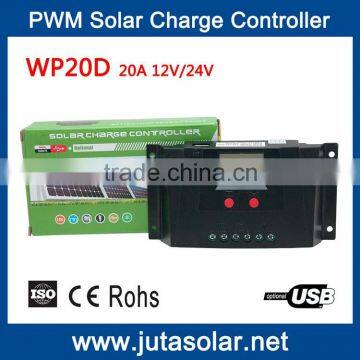

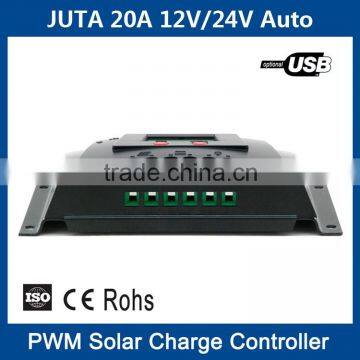

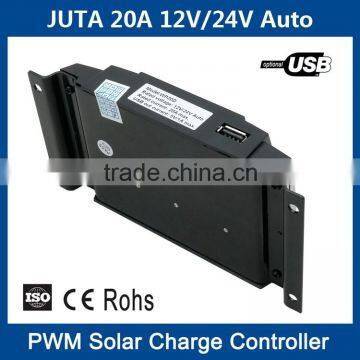

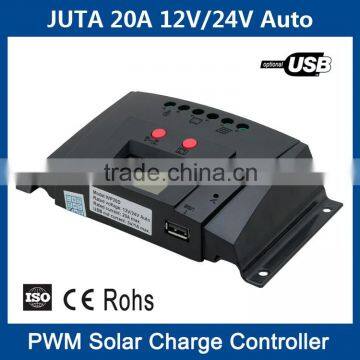

10A 20A Solar Charge Controller Price Cheap 12V 24V Auto With USB and LCD PWM Charging
US$ 9 - 13
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
JUTA
Model Number:
WP20D
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan/Ningbo/Shenzhen/Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20A PWM Solar Charger Controller 12V 24V WP20D With USB Charging and LCD DisplayUS$ 9 - 13MOQ: 1 Piece -
10A 20A 12V 24V Auto PWM Solar Controller WP20D With USB and LCDUS$ 8 - 13MOQ: 1 Piece
-
30A Solar Charge Controller Price Cheap With LCD Backlight 12V 24V AutoUS$ 12 - 16MOQ: 1 Piece
-
New JUTA PWM LCD 30A Solar Charge Controller With Time Control and Backlight Quality ChoiceUS$ 11 - 16MOQ: 1 Piece
-
JUTA Solar Charger Controller New 30A 12V 24V With LED Indicators and USBUS$ 10 - 12MOQ: 1 Piece
Place of Origin
Hubei, China
Brand Name
JUTA
Model Number
WP20D
Application
Solar System Controller
Rated Voltage
12V
Maximum Current
20A
10A 20A Solar Charge Controller Price Cheap 12V 24V Auto with USB
Our Online Store: /store/341515
Product Description
Features:
| 1.Vivid LCD graphic symbols; |
| 2.Intelligent PWM charging mode (Bulk, Absorption, Float); |
| 3.Simple button operation; |
| 4.Settable Operating mode of Load (Normal 24H, Light Control, Light Control with Time Control); |
| 5.Automatic Identification of System Voltage level; |
| 6.Battery Low-voltage protection; |
| 7.Adjustable control parameters; |
| 8.Over-current protection; |
| 9.Battery reverse-discharge protection; |
| 10.Battery reverse-connected protection; |
| 11.USB(5V/1A) Power Output (Optional); |

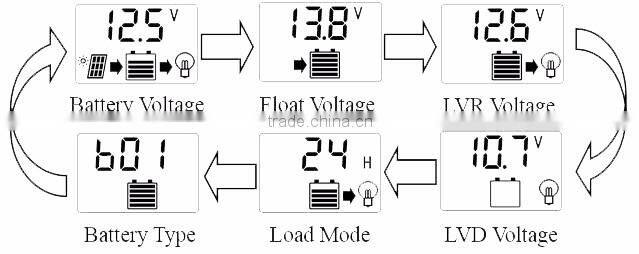

LCD Display Shows:

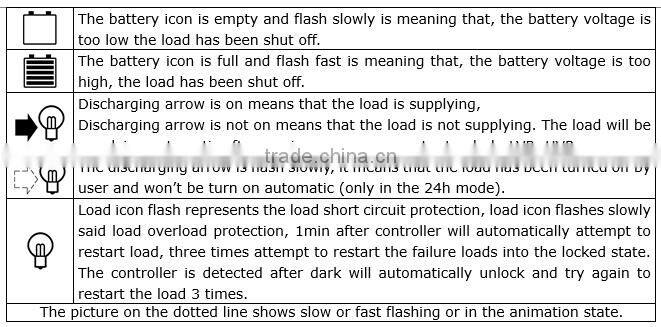

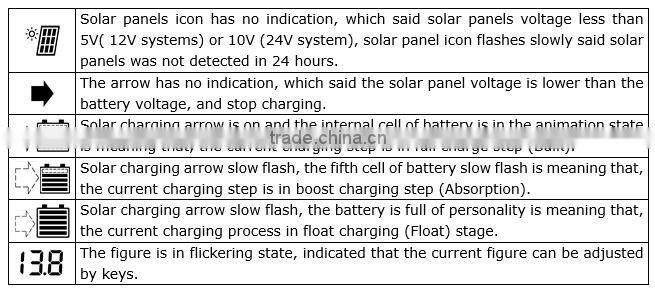

Description of LCD Graphic Symbol:

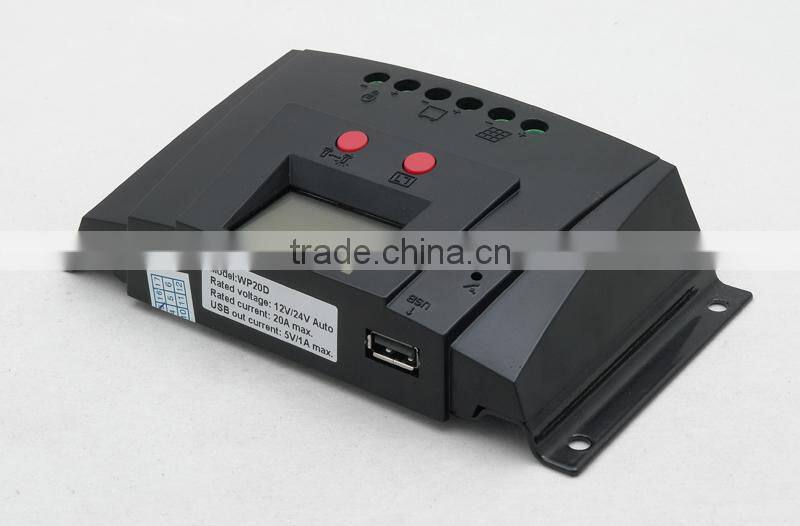

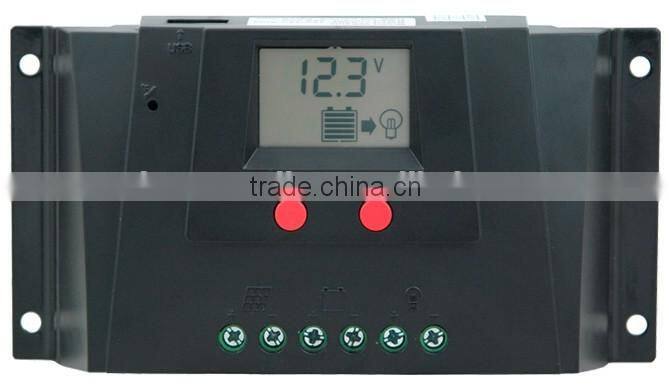

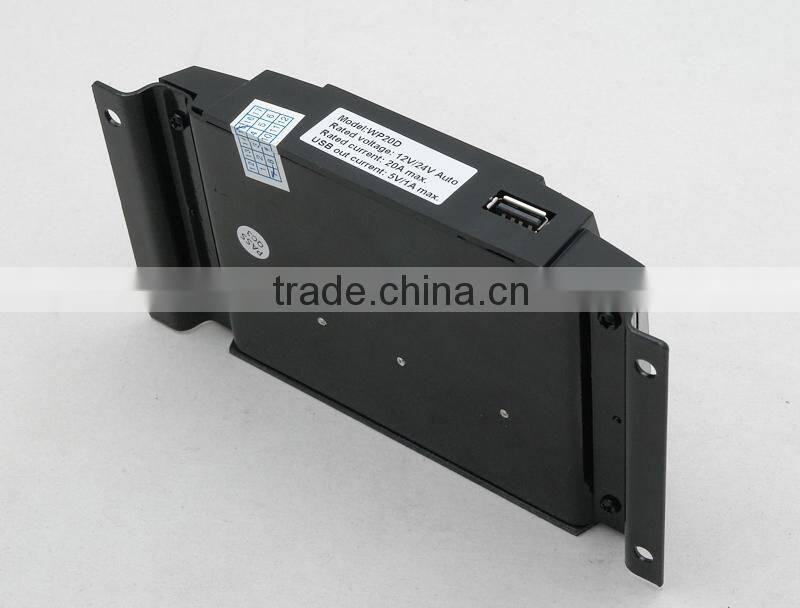

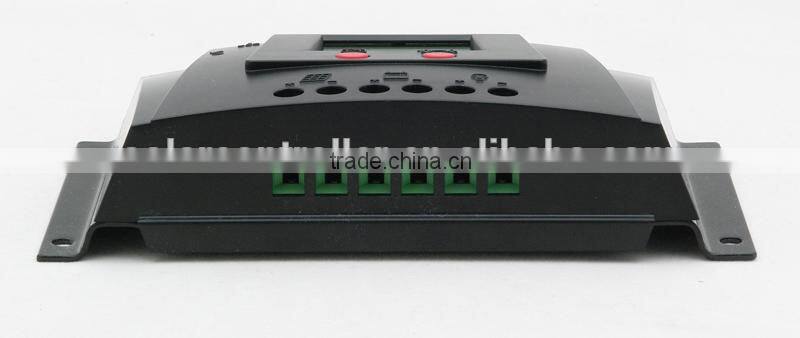

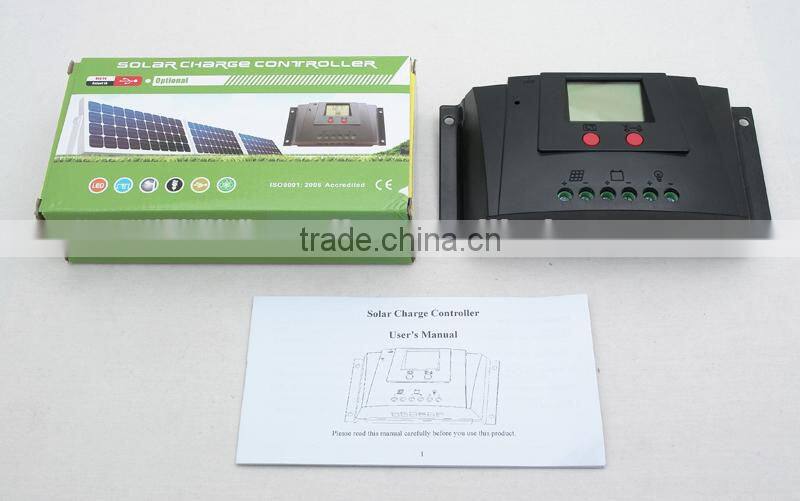

Detailed Images
Technical Parameter
Rated Current |
10A / 15A / 20A |
||||
Rated Voltage |
12V/24V Auto |
||||
Solar Input |
≤50V |
||||
Float Voltage |
13.8V/27.6V |
||||
LVD |
10.7V/21.4V |
||||
LVR |
12.6V/25.2V |
||||
Boost Voltage |
b01:14.4V/28.8V |
Duration 2 hours |
|||
b02:14.2V/28.4V | |||||
b03:14.6V/29.2V | |||||
HVD |
15.5V/31.0V |
||||
No Load Loss |
≤13mA |
||||
Over Current Protect |
1.25 times rated current 10S |
||||
| Charge/Discharge Voltage Drop | ≤0.3V/0.2V | ||||
| USB Port(optional) | 5V/1A Max | ||||
| Charging mode | 3 step,PWM charge | ||||
| Specification of cable | AWG 5# (6mm2) | ||||
| Working Temperature | -20℃~50℃ | ||||
Storage temperature |
-30℃~70℃ | ||||
| Humidity | ≤90%, no condensation | ||||
| Diameter of mounting hole | 150mm×64mm --Φ5 | ||||
| Dimension | 166mm×88mm×38mm | ||||
| Weight | 270g | ||||
