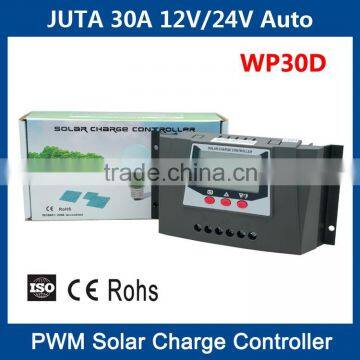

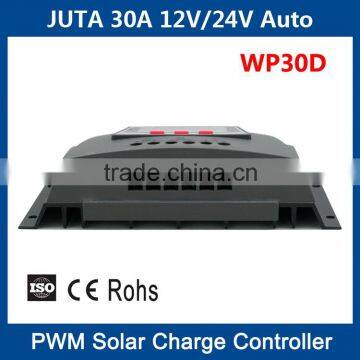

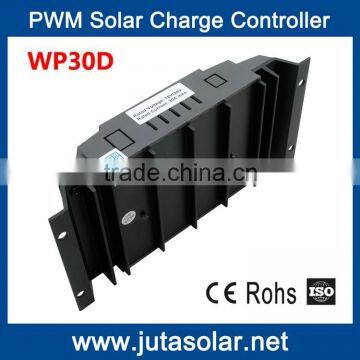

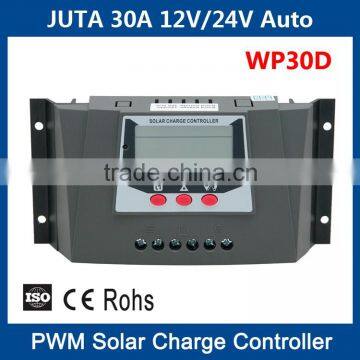

New JUTA PWM LCD 30A Solar Charge Controller With Time Control and Backlight Quality Choice
US$ 11 - 16
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
JUTA
Model Number:
WP30D
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan/Ningbo/Shenzhen/Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JUTA Solar Charger Controller New 30A 12V 24V With LED Indicators and USBUS$ 10 - 12MOQ: 1 Piece -
10A 12V/24V Solar Charge Controller for Solar Home System With 5V 1A USB OutputUS$ 4 - 5MOQ: 100 Pieces
-
10A/20A 12V or 12V/24V Solar Charge Controller for Solar Home System With 5V 1A USB OutputUS$ 5 - 8.5MOQ: 100 Pieces
-
30A 12V/24V Intelligent Solar Charge Controller With LCD Display & USB Port for Solar Home SystemUS$ 13 - 15MOQ: 100 Pieces
-
CM3024Z 30A 12V/24V Intelligent Solar Charge Controller With LCD Display for Solar Home SystemUS$ 19 - 22MOQ: 100 Pieces
Place of Origin
Hubei, China
Brand Name
JUTA
Model Number
WP30D
Application
Solar System Controller
Rated Voltage
12V
Maximum Current
30A

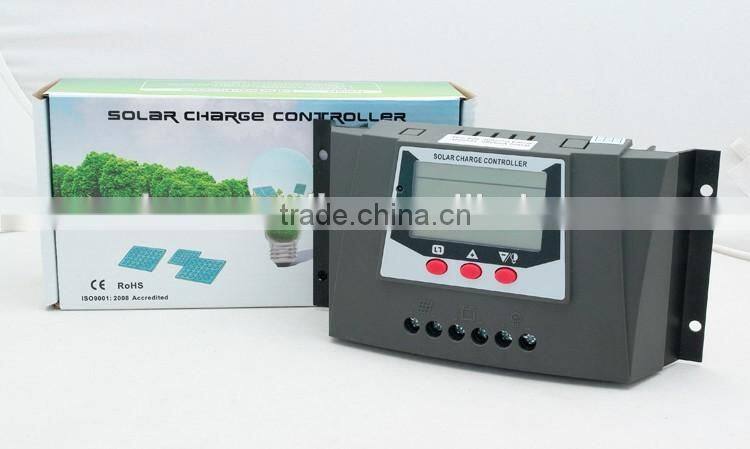

New PWM LCD 30A Solar Charge Controller with Time Control and Backlight
Our Online Store: /store/341515
Product Description
1. The controller is a new series of intelligent, multi-purpose solar charge controllers.
2. Its innovative structured design makes it easy to install and more reliable to use.
3. Optimized charging and discharging management enables the service life of batteries to be greatly boosted.
4. Meanwhile, more system symbols can be displayed in bigger LCD interface.
5. Vivid symbols can show the working status of the system and relevant parameters can be fully displayed.
6. What's more, intelligent control of LED backlight makes it possible to see all symbols and parameters clearly even in the dim light conditions.
7. Various control parameters can be flexibly set to fully meet your various application requirements.
Features:
1. Three Stage Charging: Bulk Charge, Absorption Charge, Float Charge;
2. Presets Parameters for Three Different Types of Battery: GEL, SEALED, FLOOD;
3. Auto-detect the battery voltage or locked to a fixed voltage;
4. Adjustable charging voltage;
5. Temperature compensation for charging voltage;
6. Various control modes for load:
Normal control mode(0), Light control on and delayed off Mode(1),
Light control on and delayed off and one hour before dawn(2), Light control mode(3)
7. Statistical data of generated energy and consumed energy;
8. Communication function (RS232 OR RS485); (Optional function)
9. Protection for reversed connection of battery;
Protection for reversed connection of solar panel;
Protection for reverse-discharge of battery;
Protection for input over-current from solar panel;
Over-current protection for load;
Short circuit protection for load;
Under-voltage protection for battery;
Over-voltage protection for battery;

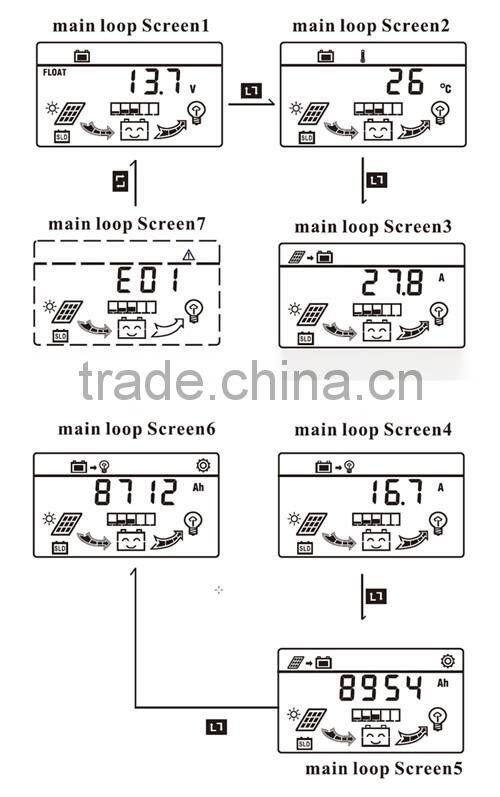

LCD Display Shows:

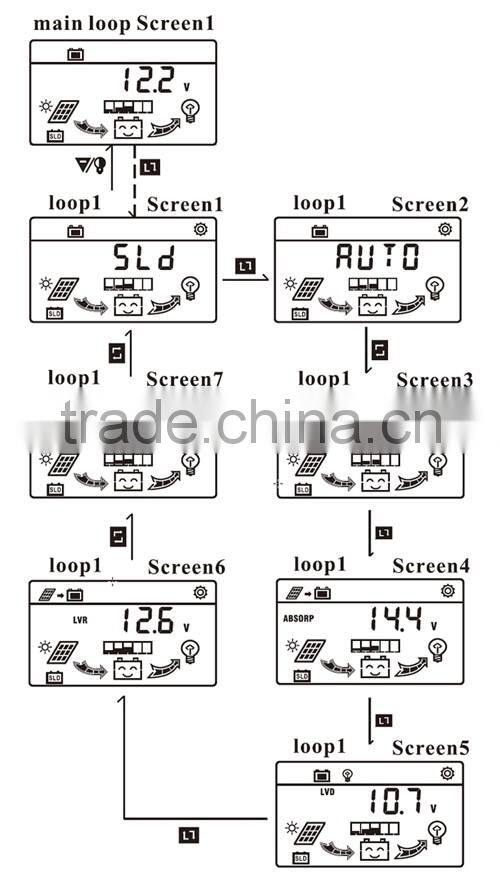

View and Set the Following Parameters:

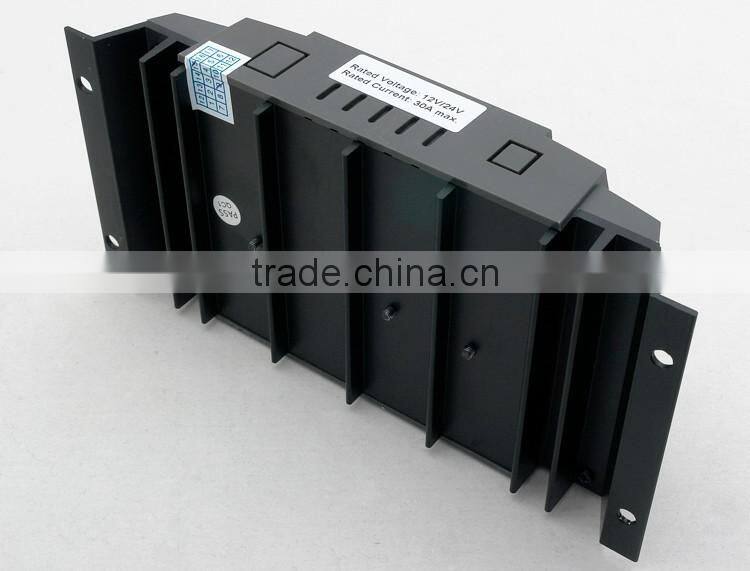

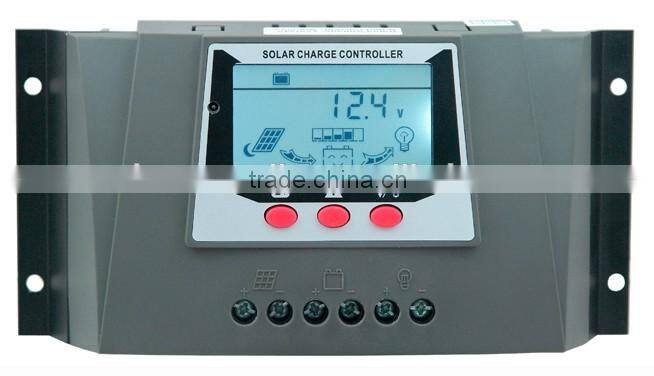

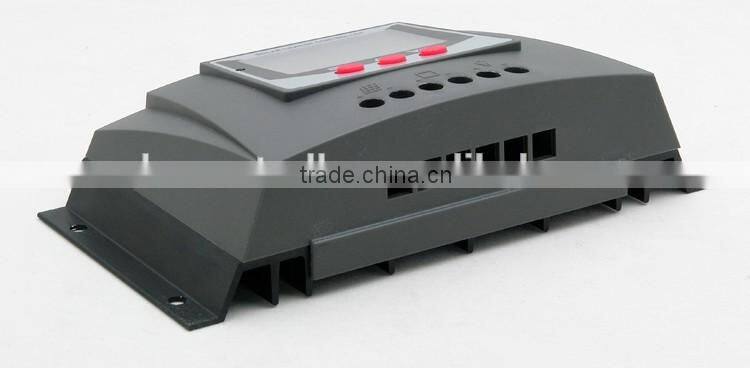

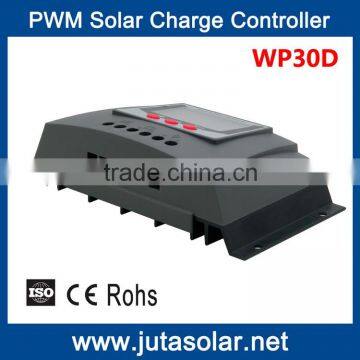

Detailed Images
Technical Parameter
| Model | WP30D/WP50D | WP3048D/WP5048D | |
| Solar Input | Input Voltage | ≤ 50V | ≤ 100V |
| Rated Input Current | 30A/50A | ||
| Charge Loop Voltage Drop | ≤ 0.2V/0.25V | ≤ 0.2V/0.25V/0.35V | |
| Battery | System Voltage | 12V/24V Auto | 12V/24V/48V Auto |
| No Load Loss |
≤ 13mA (Backlight off) |
≤ 18mA (Backlight off) |
|
| Battery Type | Sealed, GEL, Flooded, User | ||
| Charging Mode | 3 Stage (Bulk, Absorption, Float) PWM |
||
| Float Voltage | 13.8V(12V-15V)*1/*2/*4 | ||
| Absorption Voltage | 14.4V(12V-15V)*1/*2/*4 | ||
| Temprature Compensation | -4mV/Cell/'C | ||
| Load | Rated Load Current | 30A/50A | |
| Discharge Loop Drop | ≤ 0.1V/0.12V | ≤ 0.12V/0.15V | |
| Low Voltage Disconnect | 10.7V(10V-14V)*1/*2/*4 | ||
| Low Voltage Reconnect | 12.6V(10V-14V)*1/*2/*4 | ||
| Overvoltage Disconnect |
16.0V(10V-14V)*1/*2/*4 (Reconnect, 1V lower) |
||
| Related | Interface | LCD with White backlight, 3 Red Silica Gel Buttons | |
| Max Wire Size | 16mm2 (AWG 5#)/25mm2(AWG 3#) | ||
| Working Temperature | -20'C-55'C | ||
| Storage Temperature | -30'C-70'C | ||
| Working Humidity | 10%-90% No Condensation | ||
| Dimension | 187*99*50mm/200*132*64mm | ||
| Weight | 370G/665G | ||
| IP30 | |||
