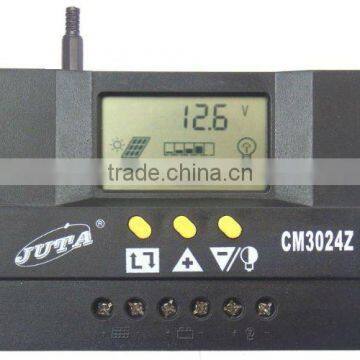

CM3024Z-20A 30A
Sample Can be bought from Our Online Store:
/store/341515
CM series controller is a kind of intelligently, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface various control parameters can be flexibly set, fully meet your various application requirements.

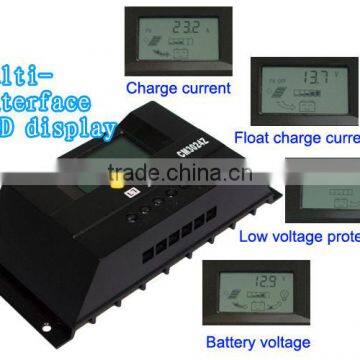

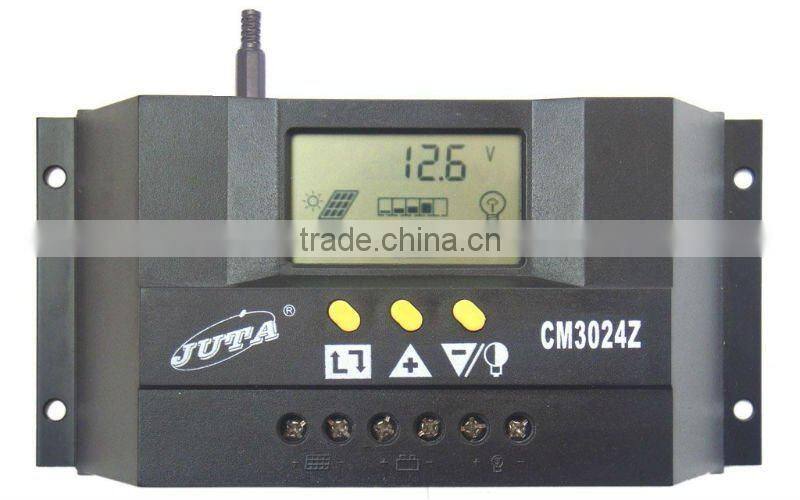

LCD display shows system status at all times
CM Series Controller Has Following Features:
1. Image of LCD graphic symbol
2. Simple button operation
3. Automatic Identification System Voltage level
4. Intelligent PWM charge mode
5. Automatic Temperature Compensation
6. Adjustable charge-discharge control parameters
7. Settable Operating mode of Load hours
8. Accumulated function of charge and discharge Ampere

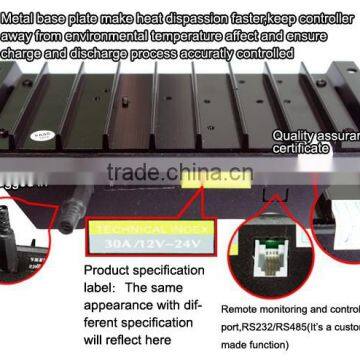

9. Remote monitoring and control function (custom)
10. Battery reverse-discharge protection
11. Battery reverse-discharge protection
12. Battery reverse connection protection
13. Overload, Short Circuit Protection
You can View and Set the Parameters:
1.Battery Voltage
2.The load on/off control
3.Environment Temperature
4.Solar Panel charging current
5.Load discharging current
6.Accumulated charging power (Ah) by solar panel and back to zero
7.Accumulated discharging power (Ah) by Load and back to zero
8.Low Voltage Disconnection Protection
9.Low Voltage Reconnection
10.High Voltage Disconnection
Three Load Working Mode:
24H—Normal Mode, in case of no fault state of the load is always in power.
1H~23H—Light Control with Time Control Mode, Load power after dark, and close the load according to the timer setting.
0H—Light Control Mode, Load on after dark, turn off the load after drawn.
Technical Data:
Model |
CM3024Z |
CM3048 |
Model |
CM3024Z |
CM3048 |
Rated Current |
30A |
30A |
Installation cable area. |
≤7# AWG (16mm2) |
|
Rated Voltage |
12V/24V |
48V |
Operating Temperature |
-10°C~60°C |
|
Open Circuit Voltage of solar panel |
No more than 50V |
No more than 100V |
Storage temperature |
-30°C~70°C |
|
Low Voltage Disconnection(LVD) |
10.7V/21.4V |
42.8V |
Humidity requirements |
No more than 90%,no condensation |
|
Float Voltage |
13.8V/27.6V |
55.2V |
Size |
90 mm×188 mm×48 mm |
|
Low Voltage Reconnection(LVR) |
12.5V/25.0V |
50.0V |
Mounting hole spacing |
60 mm×178 mm --Φ5 |
|
No load loss |
No more than 30mA |
Weight |
360g |
||
Loop Voltage Drop |
No more than 170mV |
Notes |
Model suffix Z represent automatic identify system voltage level, T represent controller with remote monitoring. |
||
Charging Mode |
PWM mode |
||||
Temperature Compensation |
-4mV/Cell/Degree |
||||
