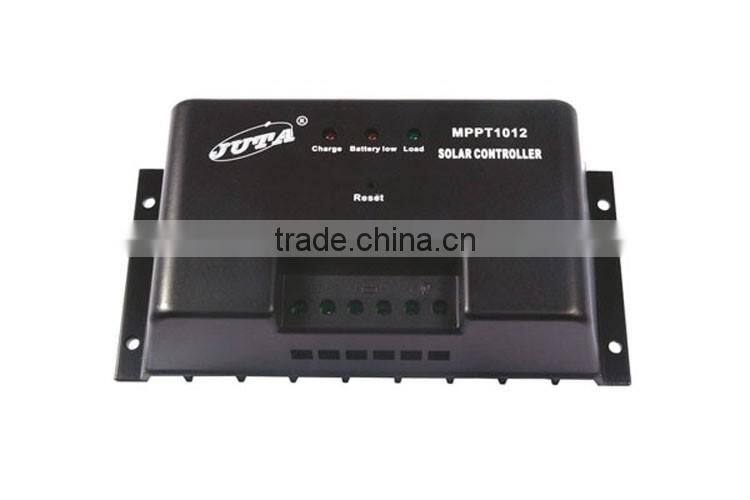

Help Center10a 12v/24v Fast Charge MPPT Solar Charge Controller for Solar Power System With LED Indicator Quality Choice
Related Products
-
JUTA MPPT 20A 12V 24V Switch for Solar Power Systerm Solar Charge ControllerUS$ 38 - 38MOQ: 5 Units -
JUTA MPPT10 Solar Charge Controller Mppt 24vUS$ 26 - 27.9MOQ: 3 Sets
-
JUTA MPPT20 Solar Charge Controller Mppt 24VUS$ 35.2 - 44.8MOQ: 3 Sets
-
Juta High Efficiency Boost Controller and Bulk Wuhan Mppt Charge ControllerUS$ 166.3 - 225MOQ: 1 Piece
-
MPPT-30 30A 24V 48V Solar Charge ControllerUS$ 140 - 150MOQ: 10 Sets
MPPT is main topology adopts in Buck conversion circuit, and uses MCU to adjust the solar panels working point intelligently in order to make the solar panels output its maximum power. When the circumstances change, the working point of solar panels deviate from the maximum power point, MCU will adjust the solar panels working point based on MPPT calculation to make the solar panels back to the maximum power point again. Compared with PWM controller, MPPT controller can increase the output power of solar panels by 5%~30%. The output power increasing proportion is affected by the factors such as solar panels property, humidity and light intensity.
Functions:
1.Maximum Power Point Tracking technology
2.Multi-stage Charge Control: Bulk Charge,Absorption Charge,Float Charge
3.Charge voltage temperature-compensated
4.Discharge Control
5.Protection against reverse connected battery
6.Protection against reverse connected solar modules
7.Reverse current protection
8.Overtemperature protection
9.PV overvoltage protection
10.Current-limited for excessive chargeing current
11.Load output overload protection
Technical Data:
Model |
MPPT2024Z |
|
Input |
Maximum PV voltage |
≤70V |
MPP voltage range |
12V~70V (24V~70V) |
|
Output |
System voltage |
12V (24V) |
Maximum battery voltage |
16V (32V) |
|
Maximum charging current |
20A |
|
Maximum load current |
20A |
|
Own consumption |
≤15mA |
|
Charging control mode |
3-stage (Bulk, Absorption, Float) |
|
Float charge |
13.8V (27.6V) |
|
Absorption charge |
14.4V (28.8V),for 2 hours |
|
Load disconnection (LVD) |
11.5V (23.0V) |
|
Load reconnection (LVR) |
12.6V (25.2V) |
|
Temperature compensation |
-4mV/ cell/ °C |
|
Battery type |
Lead acid (GEL, AGM, Flooded) |
|
Other |
Maximum efficiency |
97% |
Human interface |
LEDs, button |
|
Cooling style |
Passive Cooling |
|
Maximum wire size |
10mm2 |
|
Ambient temperature range |
-10 to +50 °C |
|
Storage temperature range |
-30 to +80 °C |
|
Humidity |
0 to 90%, no condensation |
|

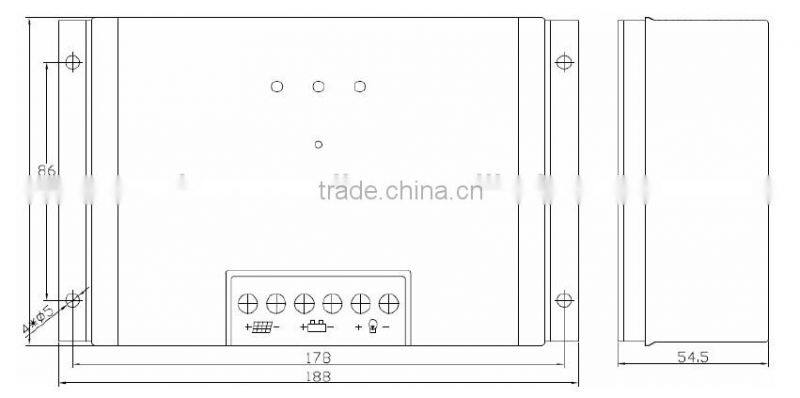

Dimensions |
118.5 x 188 x 54.5 mm |
|
Weight |
0.8 Kg |
|
Grounding |
Positive grounding |
|
Degree of protection |
IP32 |
|
Note: Technical data at 25 °C / 77 °F
Quality assurance should be carried out according to the following rules:
1)The product is guaranteed of replacement, returning and repairing within 7 days after Sale.
2)The product is guaranteed of replacement and repairing within 1 month after sale.
3)The product is guaranteed of repairing within 12 months after sale.
