MPPT-10 10A 12V or 24V MPPT solar charge controller

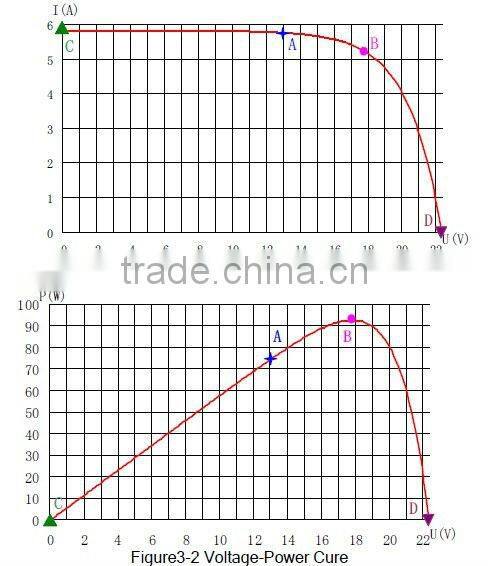

Feature: The most important feature of this controller is intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30% electrical power using efficiency from solar panel.
Function: This MPPT controller is not only have above mentioned special function, at the same time including completely Protecting and Controlling functions:
Overcharge protection
Overdischarge protection
Battery Reverse Current Protection
Overloading Protection
Short Circuit Protection
Reverse Polarity Connection Protection
Technical Data
|
Model
|
MPPT-10 |
MPPT-30 |
Rated voltage |
DC:2V / 24V / 48V |
|
Max current |
10A |
15A,20A,30A |
No load loss |
≤45mA/12V / 24V ≤30mA/48V |
|
Voltage drop |
≤300mV |
|
Max voltage of solar panel |
23V/12V,×2/24V,×4/48V |
|
Full charge cut |
14V/12V,×2/24V,×4/48V(25°C) |
|
Low voltage cut |
10.5V/12V,×2/24V,×4/48V |
|
Reconnected voltage |
12.6V/12V,×2/24V,×4/48V |
|
Temperature compensation |
-3mV/cell.°C |
|
Efficiency |
95%-97% |
|
Wire area |
1~2A/ mm² |
|
Electrical power using efficiency |
Can increase 10~30% |
|
Net Weight |
0.55Kg |
0.65Kg |
Dimension |
188×93×55mm |
188×118×55mm |
optional function
(RS485 or RS232)remote controlling functio
working temperature scope-10°C~+50°C
working altitude ≤3000m
working humidity scope 0~90%, no condensation
volume 380mm*283mm*100mm
weight 5.5 Kg /CARTON
storage temperature scope -30°C~+80°C
| MOQ | 3PCS |
| lead-time | 15days normally |
| manufacture capacity | 3000PCS/week |
| package | carton 20pcs/carton 15.5kg/carton 0.5m3/carton |
| payment | T/T LC cash Western Union paypal |
Delivery tetms
DHL,UPS,EMS,sea transportation are available.The solar controllers will be shipped within 15 days upon receiving your papyment.
warranty
one-year warranty.If the controller cannot work within one year period(except man-made improper factor),we donot charge any parts costs.If it goes broken after one year ,parts costs and labor costs are required.

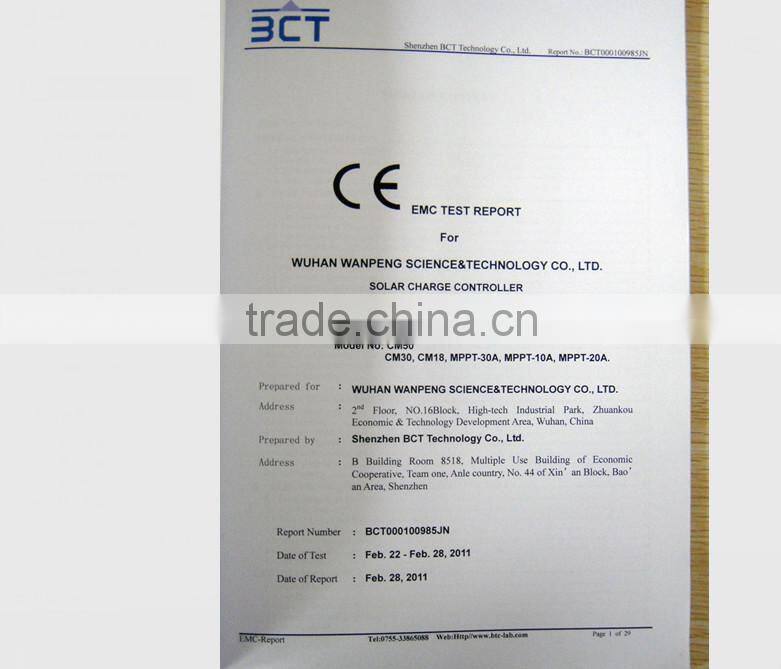

Wuhan Wanpeng Science and Technology Co., Ltd. is a developing enterprise specializing in the area of science and technology. The production base lies in the state demonstration industrial park in ZHUANKOU Developing District, WUHAN, China. The independent development of company produces the solar charge controller and inverter. Have the year to produce 300,000 set inverter currently, 60,000 set solar energy charge controllers produce the ability, the product sells go toward domestic and Europe, Australia in great quantities, Africa etc. region. The company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the relevant national company check (CE, ROHS), get high evaluation of the customer.
