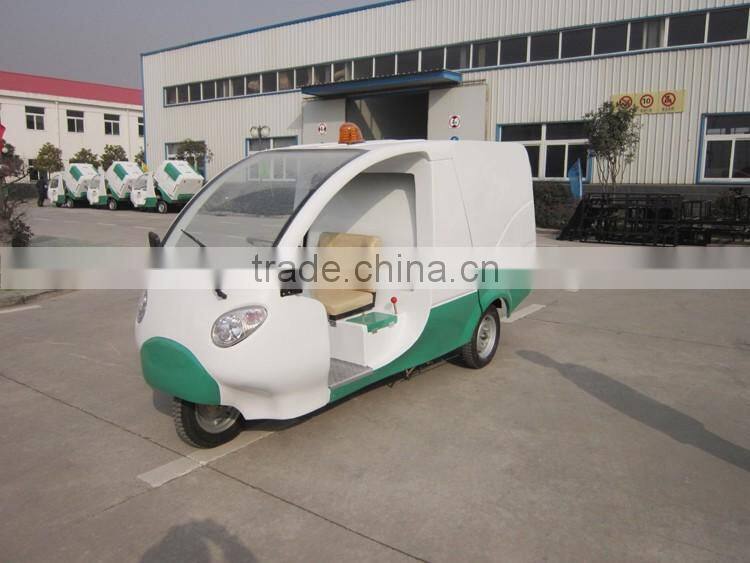

electric garbage truck /electric car/electric truck QY3201

Item

Description

Motor

Rated power 1.5kw,AC motor Chinese brand

Battery

120 ah lead acid battery

Charger

60v smart charger

Item

Description

Passenger Capacity

1

Range (unloaded) (km)

up to 60

Max .speed (km/h)

up to 25

Min. turning radius (m)

4

Max. climbing ability(loaded)

up to 17%

Max. loading weight (kg)

600

Item

Description

Overall dimensions (mm)

3300 x 1350 x 1700 (LxWxH)

Rear garbage box dimensions (mm)

1500x1000x51100 (LxWxH)

Min. ground clearance (mm)

140

Wheelbase (mm)

2300

Rear wheel tread (mm)

1035

Item

Description

Frame & Chassis

Welded steel framework with sand blasting and painting

Body

FRP and Plastic

Roof

FRP with steel frame, with roof handle

Windshield

Laminated glass with wiper

Roof supports

Steel

Seat

Reborn sponge with artificial leather, high back, with formed armrest

Floor

Bamboo floor with Skidproof leather

Steering Location

Left hand drive

Side rear view mirror

1pcs

Item

Description

Lights

Headlamps, brake & tail lights, turn signals, hazard lights, back-up and dome interior light

Horn

Electric horn,

Reverse buzzer

Electric,

Combination switch

including switch for headlight, turning light, wiper and horn

DC/DC converter

48V/12V

Audio system

Radio with MP3 receiver and 2 waterproof speaker
