Specifications
2014 best price solar water pump3 phase brushless DC motor, smooth operation,
high efficiency, long-life span
MPPT Tracking

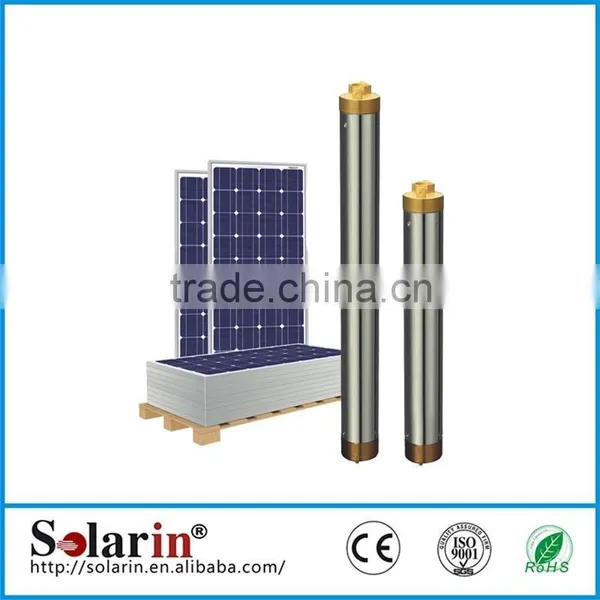

2014 best price solar water pump
Our company developed this new generation high speed and high efficiency deep well pump, equipped with high speed and high efficiency DC brushless motor or high efficiency AC synchronous motor as the source of power. Its volume is 1/5, and its weight is 1/5 of other pumps in same specifications. It is energy saving, of high efficiency and of complete functions. And it is the most advanced deep well pump in the world. We acquired 3 patents of technical principle from the State Intellectual Property Office, has reported the international patent.
This pump should be worked with our exclusive controller, owns frequency control, constant velocity and so on, so it can be pumped water under the work model such as constant pressure, constant flow, time swith, remote network operation and intelligent operation.
The controller has AC input and DC input, also can be connected withsolar panel, form a solar deep well pump.
water pump for agriculture
ing parametres of this solar water pump for agriculture :
(1). Flow range10~600m3/h,
(2). Lift scope within 5~600m;
(3). Caliber scope 32~203mm,
(4). Temperature range-15~80° C.
2.Introduction of solar water pump for agriculture:
The solar water pump for agriculture is the high-tech production use the nature energy,saving time ,saving energy,saving labor.
There are two types solar system,DC series and AC series. About the DC water pump, It can direct connect PV panel.The AC solar water pump need connect with Inverter transfer power,then connect PV panel.The different power with different PV modules.
3.Use Conditions of 10T Sola Water Pump for Agriculture:
(1). 380 V bias voltage does not exceed + -5% and 50 HZ frequency, and the deviation is not more than + -1% of the three-phase power supply.
(2). Electrical cavity must fill water.
(3). The first-class pump impeller should at least go into the dynamic water level 2 m below surface. Static pump unit immersed under water shall not be greater than 70 m.
(4). Electrical from the bottom of the bottom of the well shall be not less than 3 m.
(5). The water temperature no higher than 20 ° C, QJR-temperature hot water pump up to 80 ° C.
(6). Water and sand content (by mass) of not more than 0.01%.
(7). Water PH 6.5-8.5.
(8). The hydrogen sulfide in water content is not more than 1.5 mg / L.
(9). Water should ensure continued operation of the pump needs.
4.Structure Feature of Solar Water Pump for Agriculture:
(1). pump: The pump is installed on the upper part of the pump units.It's centrifugal and has water lubricated
a. bearing mounted with the motor shaft by a joint.
b. There is a check valve on top of the pump which could prevent rapaid inverse rotation from backword flow.
c. The pump unit should be immersed below the dynamic water lever when in using.
(2). motor: The motor is installed under the pump.
a. It is a water filled in hermatical structure.The stator windings are water-tight and PE insulating and multi-layers are covered with nylon.
b. The motor bearing is water-lubricated.The inner motor contains clean water to cool the water body and the bearing.
c. The rubber diaphgram adjusts the pressure change caused when temperature rises.
d. There is a sand resistance system in the upper part of the motor.
Solar Pumps | |||
Model |
Head |
Power |
Flow |
4SP2/28-1.5 |
154m |
1.5KW |
2t |
4SP4/26-2.2 |
118m |
2KW |
4t |
4SP6/22-2.2 |
82m
|
2KW |
6t |
4SP6/38-4 |
141m |
4KW |
6t |
4SP10/18-3 |
60m |
4KW |
10t |
4SP10/23-4 |
77m |
4KW |
6t |
| |||
Built-in MPPT Controller | |||
| |||
Frequently Asked Questions to us:
Q: What's the payment term?
A: We accept T/T, 30% deposit & 70% balance payment before shipping, and Western Union.
Q: How's the delivery time?
A: Usually it takes about 10-20 days for production varies with products.
Q: How's the shipping?
A: Usually we choose COSCO, Mearsk, MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, please inform us your shipping information such as contact details and phone number for easy contacting from shipping company officer. If you want the Express delivery, please let us know.
Q: Where is our factory located? How can I visit there?
A: Our factory is located in Guangdong Province, Guangzhou, China. You are warmly welcomed to visit us.
Q: Does your company also provide other solar products except Solar Home System?
A: Yes. We are not only provide solar home system, but slso provide the solar products related to the solar energy, such as moncrystalline solar panel, polycrystalline solar panel, off grid solar inverter, solar lighting system, solar home system, solar Led lighting, battery, solar charge controller, solar junction box, DC fun and other solar relative accessories.
Q: How can I get some samples?
A: Please call me for samples: 86 18613076668
