1KW solar power system AC kits solar power system kit 1000W 220V
1. AC Solar Power 1KW Solar Power Kits for Home Solar System
1. Small,portable and convenient
2. Quick and easy installation, and can be moved easily
3. Adapt the system to meet your requirements
4. LED/LCD display clearly shows system status at all times
5. Reliable, maintenance free

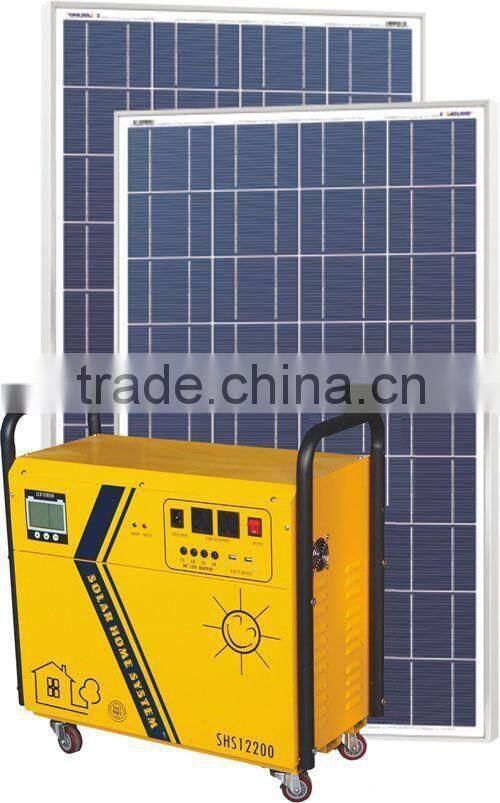

2. MODEL: SHS12200 Solar Generator

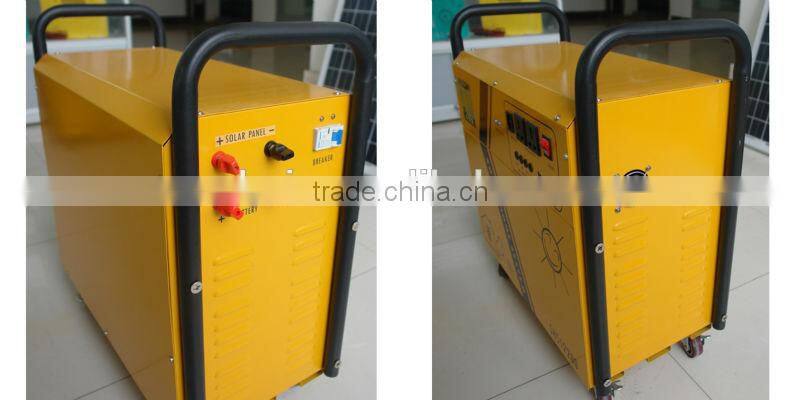

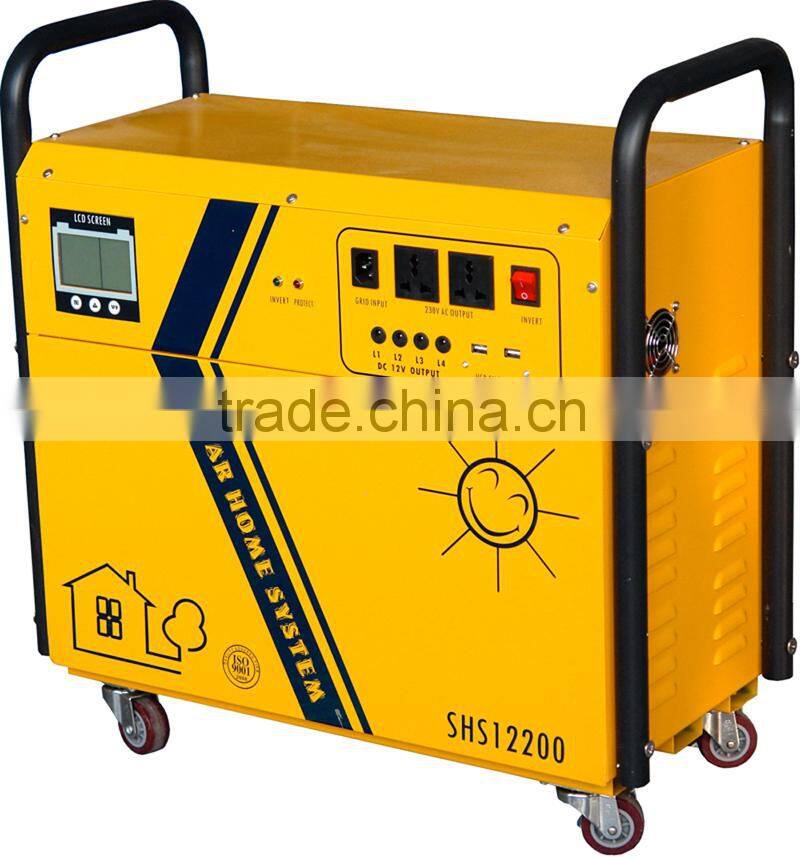

Plug & Play Integrated Power Box:
LCD display
Build-in controller 30A/12V
Build-in inverter 1000W pure sine wave
DC Output 12V/3A*4
AC Output 220V/1000W*2
USB Port 5V/1A*2
Grid charging Port 15V/5A*1
Lead-Acid Battery 200AH/12V
Solar Panel 200W*2
3. Function
1.Battery charging function
2.Low voltage disconnection function(LVD)
3.High voltage disconnection function(HVD)
4.Electronic overload protection
5.Short circuit protection
6.High temperature protection
7.Indicator got working status
8.DC 5V and DC 12V output
4. Charging and working time
1) Fully charging time: 7-9h (under standard solar radiation)
for (1W+3W+5W) *2pcs LED lamps 77-78hrs
for TV 70W:19-20hrs
for Computer(150W)9-10Hrs
for Fridge(800W):39-40hrs
1KW solar power system AC kits solar power system kit 1000W 220V
The power Case functions of Solar power system:
1.Battery charging function
2.Low voltage disconnection function(LVD)
3.High voltage disconnection function(HVD)
4.Electronic overload protection
5.Short circuit protection
6.High temperature protection
7.Indicator got working status
8.DC 5V and DC 12V output
MODEL: Solar Power System SHS12200
Emergency 20W Mini 250w solar panels for 1mw solar power plant
| 1. Plug & Play Integrated Power Box | |
| Display | LED screen |
| Controller | Build-in, 30A/12V, PWM |
| Battery | 200Ah/12V, Lead-acid |
| Inverter | Build-in, 1000W pure since wave |
| Outlet |
DC outlets12V/1A x 4 AC outlets 220V/1000W x 2 |
| USB port | 5V/1A x 2 |
| Grid charging port | 15V/5A x 1 |
| Rating charging current | 30A |
| Rated working voltage | 12V |
| Low voltage protection | 10.7V |
| Low voltage recovery | 12.6V |
| Float charging voltage | 14V |
| 2. Solar Panel | |
| Power | 400W (200W x 2pcs) |
| Cell type | Monocrystalline silicon |
| Number of cell | 72pcs |
| Vmp | 18V |
| Imp | 11.1A |
| Power tolerance | ±5% |
| Voc | 22.32V |
| Isc | 11.54A |
| Operating temperature | -40°c to 80°c |
| Size | 1580*808*35mm |
| Weight | 13kg |
| 3. Other accessories (Optional) | |
| LED Bulb |
12V/5W x2pcs E27 4m's cable with Switch & Socket |
AC charger |
1PC |
Cable for LED bulbs |
1 by 2 Extension Cable 5 meters x 1 |
Cable for Solar Panel |
10 meters for 4m² space |
1KW solar power system AC kits solar power system kit 1000W 220V
1KW solar power system AC kits solar power system kit 1000W 220V
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q: Does your company also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: 86 18933990207
5. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Payment Terms
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
If any questiones or problems ,pls feel free contact with us :Tel:86-13617298850
Email:
Skype:zoec217

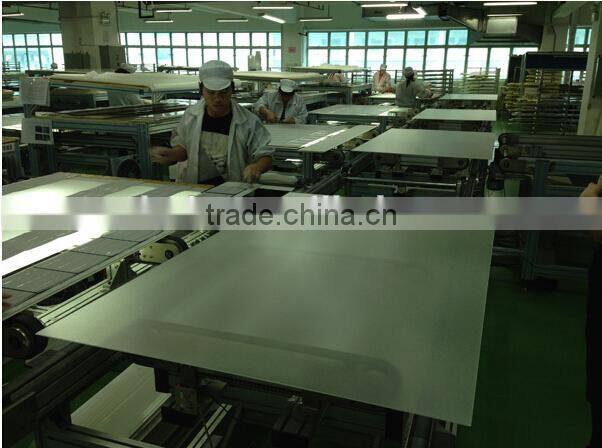

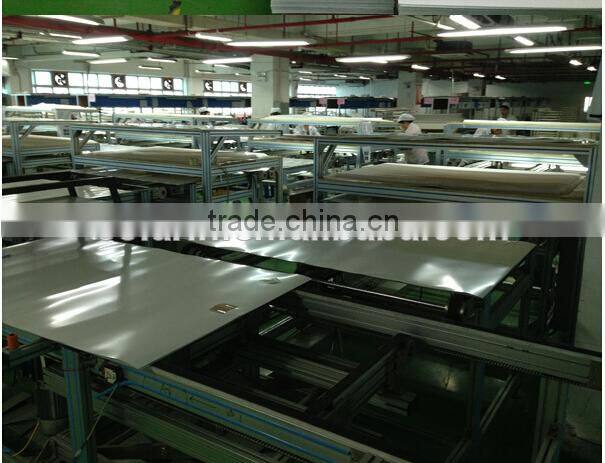

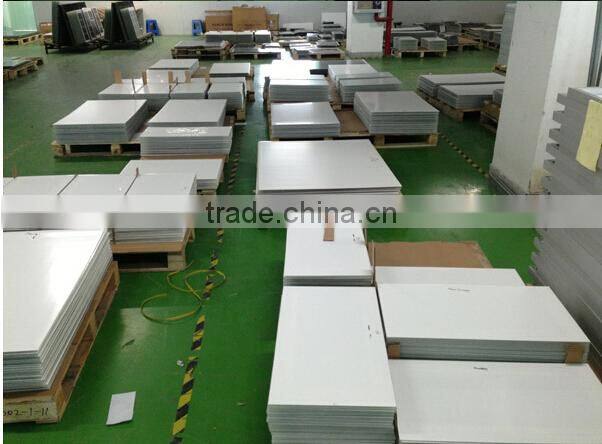

factory show
